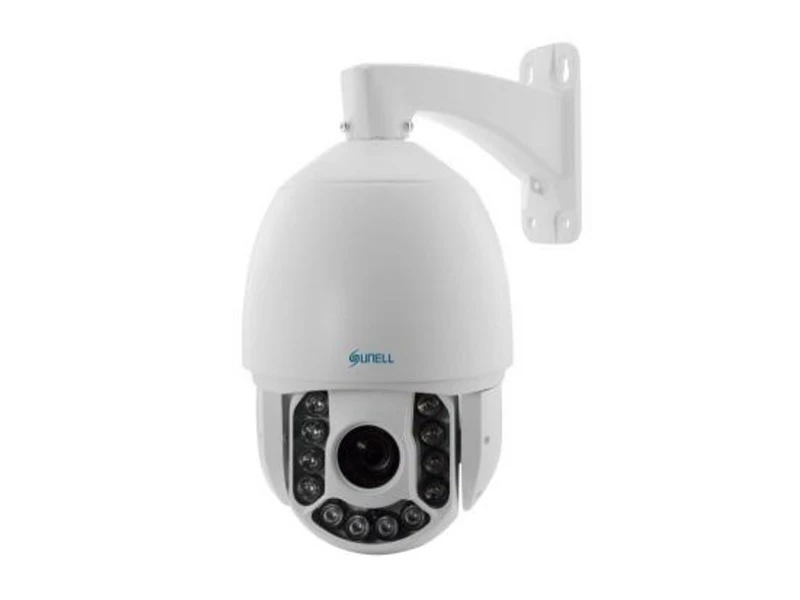

Sunell HSP13/66HDR/ZX20 PTZ Speed Dome Kamera
Özellikler
Teknik Özellikler
| CAMERA | |
| Image Sensor | 1/2.9” Sony CMOS |
| Effective Pixels | 1920(H)*1080(V) |
| Signal System | PAL/NTSC |
| Min. illumination | Color: 0.1Lux@(F1.2,AGC ON); B/W: 0Lux@( IR LED ON) |
| Day & Night | ICR |
| Shutter Speed | PAL:1/50-1/50000s ; NTSC 1/60-1/60000s |
| Auto IRIS | Auto |
| Wide Dynamic Range | dWDR |
| Digital Noise Reduction | 2D/3D |
| S/N Ratio | >58dB |
| Lens | Optical Zoom 20X, f=4.7mm～94mm | Optical Zoom 33X, f=4.6mm～152mm |
| FOV | Appr.58.7°(Wide) to 3.2°(Tele) | Appr.55.2°(Wide) to 3.2°(Tele) |
| IR LED | 12pcs |
| IR Range | 150m |
| Up the Coax | Support |
| Alarm I/O | Optional (4ch Alarm In, 1ch Alarm Out) |
| Heater | Optional |
| IMAGE | |
| Resolution | 1080P |
| Mirror | Support |
| BLC | Support |
| HLC | Support |
| Motion Detection | N/A |
| PTZ | |
| Rotation | Pan continuously 360°,Tilt 0～90°with auto-flip |
| Pan/Tilt Speed | Pan: 0.1°/s ~200°/s ,Tilt: 0.1°/s ~180°/s, |
| Speed Proportion | As the length of focus, to auto-adjust the speed |
| Preset | 128 preset |
| Scan | 4 scan |
| Pattern | 4 patterns |
| Tour | 4 tour |
| GENERAL | |
| Power Supply | DC24V/2.5A |
| Power Consumption | MAX 60W |
| Temperature | -10°C ~ 55°C (14°F ~ 131°F ) |
| -30 °C~60 °C (-22 °F~140 °F) with heater | |
| Protection | IP66,4000TVS |
| Installation | Wall mount, Pendent mount |
| Product Dimensions | Φ226x.336.5mm |
| Product Weight | 6.9kg |
Sunell HSP13 66HDR ZX20 PTZ Speed Dome Kamera Pdf Dosyası416.48 KB
Teknik Kısa
Çözünürlük : 2MP (1080P)
Irled : Var
