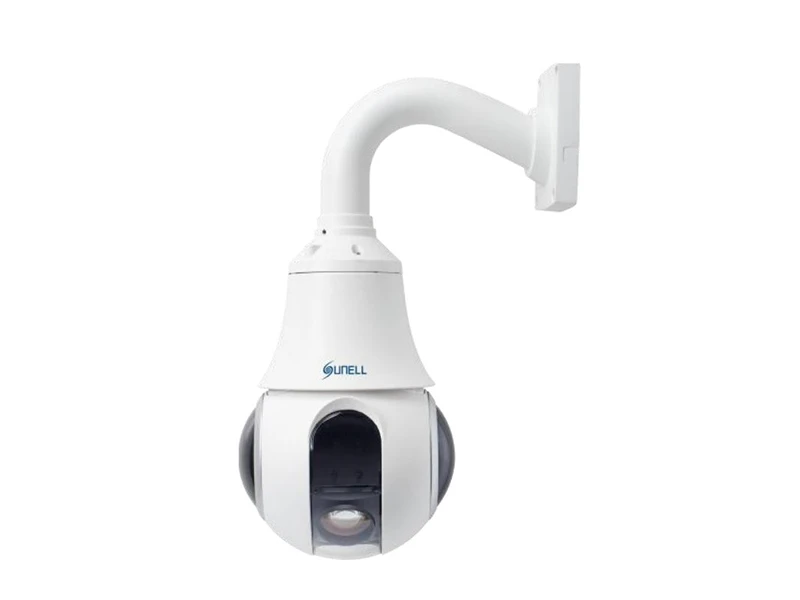

Sunell SSP13/66CDR/ZX10 PTZ Speed Dome Kamera
Özellikler
Teknik Özellikler
| CAMERA | |
| Image Sensor | 1/2.9” SONY CMOS Sensor |
| Effective Pixels | 1920(H)*1080(V) |
| Signal System | PAL/NTSC |
| Min. illumination | Color: 0.1Lux@(F1.2,AGC ON); B/W: 0Lux@( IR LED ON) |
| Day & Night | ICR |
| Shutter Speed | PAL:1/50-1/50000s ; NTSC 1/60-1/60000s |
| Auto IRIS | Auto |
| Wide Dynamic Range | dWDR |
| Digital Noise Reduction | 2D/3D |
| S/N Ratio | >58dB |
| Lens | 10X Optical Zoom , f=5.1mm～51mm |
| FOV | Appr.55.2°(Wide) to 3.2°(Tele) |
| IR LED | 4pcs |
| IR Range | 60m |
| Up the Coax | Support |
| Alarm I/O | Optional (4ch Alarm In, 1ch Alarm Out) |
| IMAGE | |
| Resolution | 1080P |
| Mirror | Support |
| BLC | Support |
| HLC | Support |
| Motion Detection | N/A |
| PTZ | |
| Rotation | Pan continuously 360°，tilt 0～90°with auto-flip |
| Manual speed | Pan: 0.1°～200°/s ; Tilt: 0.1°～180°/s |
| Preset speed | 45°/S |
| Auto Flip | Horizontal 180°, Vertical 93° |
| Preset | 128 preset |
| Scan | 4 scan |
| Guard Tours | 4 tour |
| Communication | Control over coaxial & RS485（Pelco-D, Pelco-P） |
| GENERAL | |
| Power Supply Standard | DC12V/2.7A |
| Power Consumption | ≤20W |
| Temperature | -10°C ~ 55°C (14°F ~ 131°F ) |
| -30 °C~60 °C (-22 °F~140 °F) with heater | |
| Operating Humidity | ～95%（Non-condensation） |
| Protection grade | IP66,1500V Lightning-proof, Surge-proof, |
| Product Weight | 2.3KG |
Sunell SSP13 66CDR ZX10 PTZ Speed Dome Kamera Pdf Dosyası441.8 KB
Teknik Kısa
Çözünürlük : 2MP (1080P)
Irled : Var
