Açıklama

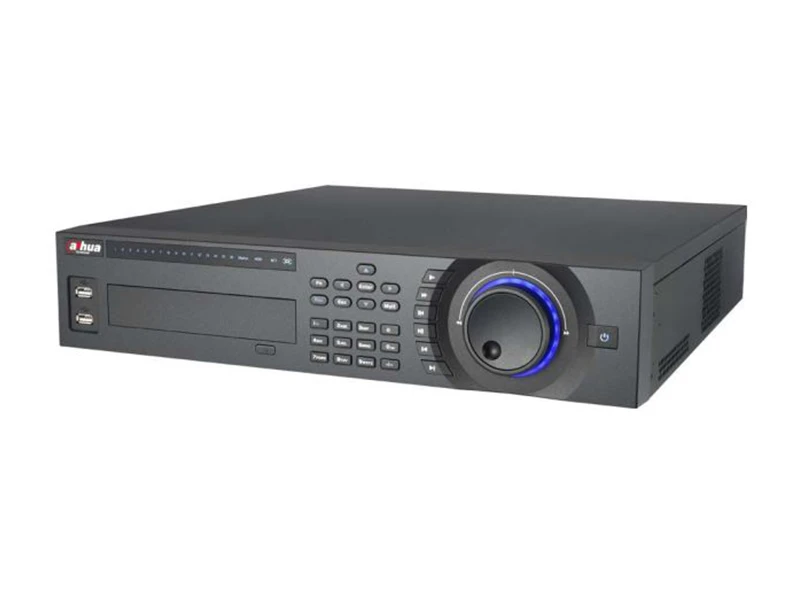

Dahua DH DVR3204HF S DVR Kayıt Cihazı
Özellikler
- Up to 32 cameras with 1080p realtime preview
- H.264 dual-stream video sıkıştırma
- Full channel @ D1(4CIF) realtime recording
- HDMI / VGA / TV/ Spot simultaneous video output
- 16 channel synchronous realtime playback, GRID interface & smart search
- 3D intelligent positioning with Dahua PTZ dome camera
- Support 8 SATA HDDs up to 32TB, 1 eSATA up to 16TB, 4 USB2.0
- Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
Teknik Özellikler
| Sistem | ||
| İşlemci | Dual-core embedded processor | |
| İşletim Sistemi | Embedded LINUX | |
| Video | ||
| Giriş | 32 channel, BNC | |
| Standard | NTSC(525Line, 60f/s), PAL(625Line, 50f/s) | |
| Ses | ||
| Giriş | 16 Kanal, BNC | |
| Çıkış | 1 Kanal, BNC | |
| Çift Yönlü Ses | 1 Kanal Giriş, 1 Kanal Çıkış, BNC | |
| Görüntüleme | ||
| Arayüz | 1 HDMI, 1 VGA, 1 TV, 1 Spot, BNC | |
| Çözünürlük | 1920×1080, 1280×1024, 1280×720, 1024×768 | |
| Görüntü Bölmesi | 1/4/8/9/16/25/36 | |
| Gizlilik Maskeleme | 4 rectangular zones (each camera) | |
| OSD | Kamera Başlığı, Time, Video Kaybı, Kamera Boşluğu, Hareket Algılama, Kayıt | |
| Kayıt | ||
| Video/Ses Sıkıştırma | H.264 / G.711 | |
| Çözünürlük | D1/4CIF(704×576/704×480) / HD1(352×576/352×480) / | |
| Kayıt Hızı | Main Stream: | D1/HD1/2CIF/CIF(1~25/30fps) |
| Extra Stream | CIF/QCIF(1~25/30fps) | |
| Bit Hızı | 48~4096Kb/s | |
| Kayıt Modu | Manual, Schedule(Regular(Continuous), MD, Alarm), Stop | |
| Record Interval | 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec | |
| Video Algılama & Alarm | ||
| Trigger Events | Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Spot, Buzzer & Screen tips | |
| Video Algılama | Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank | |
| Alarm Girişi | 16 channel | |
| Röle Çıkışı | 5 channel | |
| Oynatma | ||
| Sync Playback | 1/4/9/16 | |
| Arama Modu | Time/Date, Alarm, MD & Exact search (accurate to second), Smart search | |
| Oynatma Fonksiyonları | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, | |
| Previous file, Next camera,Previous camera, Full screen, | ||
| Repeat, Shuffle, Backup selection, Digital zoom | ||
| Yedekleme Modu | USB Device / eSATA Device / Internal SATA burner/ Network | |
| Network | ||
| Ethernet | RJ-45 port (10/100M/1000M) | |
| Network Functions | HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, | |
| DNS, PPPOE, DDNS, FTP, IP Filter, Alarm Server | ||
| Max. User Access | 20 users | |
| Smart Phone | iPhone, iPad, Android, Windows Phone | |
| Depolama | ||
| Dahili HDD | 8 SATA ports (8HDDs or 6HDDs+1CD/DVD-RW), up to 32TB | |
| Harici HDD | 1 eSATA port (Max 4 SATA HDDs), up to 16TB | |
| Yedekleme Arayüzü | ||
| USB Arayüz | 4 ports (2 Rear), USB2.0 | |
| RS232 | 1 port, For PC communication & Keyboard | |
| RS485 | 1 port, For PTZ control | |
| Genel | ||
| Güç Kaynağı | AC100~240V, 50/60Hz | |
| Güç Tüketimi | 40W | |
| Çalışma Sıcaklığı | -10 ~+55°C / 10~90%RH / 86~106kpa | |
| Boyutlar(W×D×H) | 2U, 440mm×460mm×89mm | |
| Ağırlık | 6.5KG(without HDD) | |
