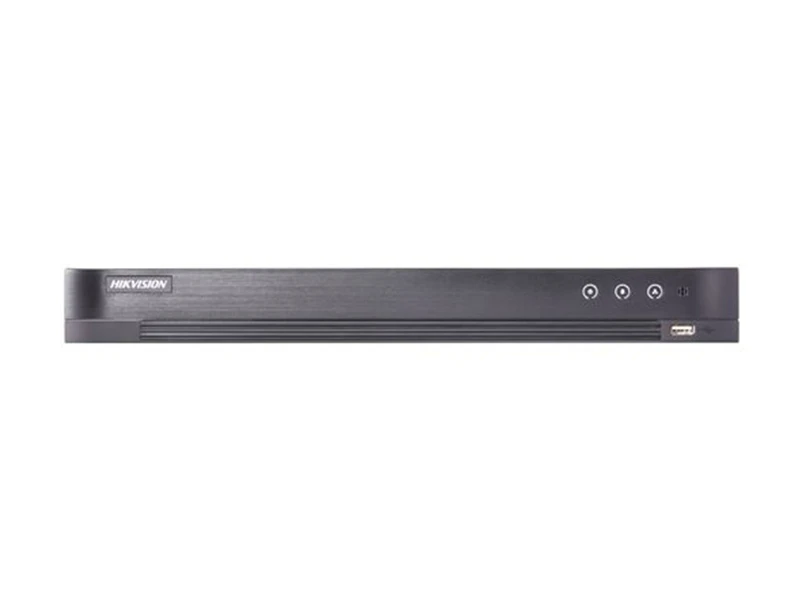

Hikvision iDS 7208HUHI K1/4S Turbo HD DVR Kayıt Cihazı
Özellikler
- Supports multiple VCA (Video Content Analytics) events for both analog and smart IP cameras
- H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras
- Deep learning-based analysis: re-recognition of the human body or vehicle target in behavior detection to filter false alarm, supports 4-ch detection
- Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input
- 8 MP/5 MP/4 MP HDTVI video input and live view for iDS-7208HUHI-K1/4S, and 5 MP/4 MP for iDS-7204HUHI-K1/4S
Teknik Özellikler
| Video/Audio Input | |
| Audio Input | 4-ch |
| Video Input | 8-ch |
| Supported camera types | HDTVI input: |
| 8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, | |
| 720p60, 720p50, 720p30, 720p25 | |
| AHD input :5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30 | |
| HDCVI input: 4 MP, 1080p25, 1080p30, 720p25, 720p30 | |
| CVBS input: PAL/NTSC | |
| IP Video Input | up to 16-ch |
| Audio Compression | G.711u |
| Audio Input Interface | RCA (2.0 Vp-p, 1 kΩ) |
| Video/Audio Output | |
| CVBS Output | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
| HDMI/VGA Output | VGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| HDMI: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz | |
| Recording resolution | 8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF |
| Frame Rate | Main stream: |
| 8 MP@8fps/5 MP@12fps/4 MP@15fps/3 | |
| MP@18fps | |
| 1080p/720p/WD1/4CIF/VGA/CIF@25fps | |
| (P)/30fps (N) | |
| Stream Type | Video/Video&Audio |
| Audio Output | 1-ch RCA(Linear, 1kΩ) |
| Synchronous Playback | 16-ch |
| Network management | |
| Remote connections | 64 |
| Network protocols | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, |
| ONVIF | |
| Hard Disk Driver | |
| Interface Type | 1 SATA Interface |
| Capacity | Up to 10 TB capacity for each disk |
| External Interface | |
| Network Interface | 1 RJ45 10M/100M/1000M adaptive Ethernet Interface |
| USB Interface | 2 USB 2.0 Interfaces |
| Serial Interface | 1; standard RS-485 serial interface, half-duplex |
| Alarm Input | 8-ch |
| Alarm Output | 4-ch |
| General | |
| Power Supply | 12 VDC |
| Consumption | ≤ 20 W |
| Working Temperature | -10 ºC to +55 ºC (+14 ºF to +131 ºF) |
| Working Humidity | 10% to 90% |
| Dimensions | 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch) |
| Weight | ≤ 2 kg (4.4 lb) |
Hikvision iDS 7208HUHI K14S Turbo HD DVR Kayıt Cihazı Pdf Dosyası697.24 KB
