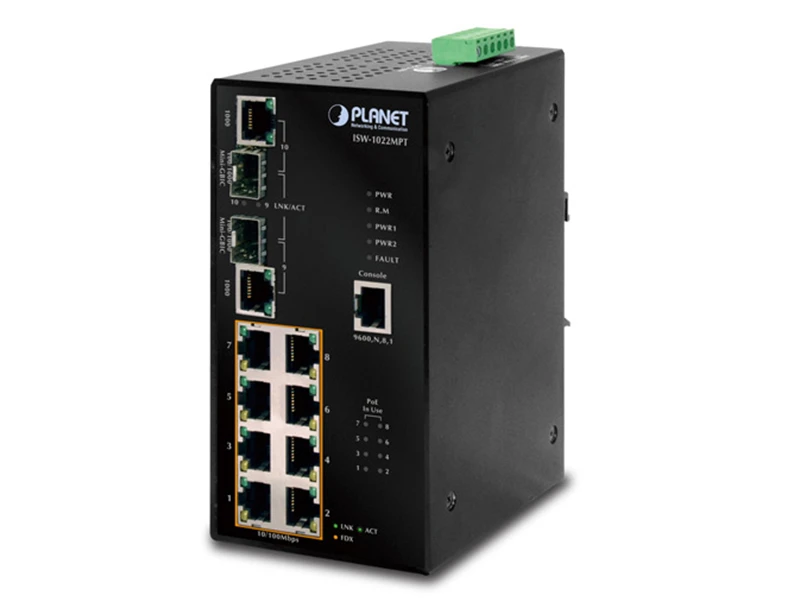

Planet ISW 1022MPT 10/100 Gigabit Endüstriyel PoE Switch
Teknik Özellikler
| Donanım Özellikleri | |
| Bakır Portlar | 8 10/ 100Base-TX RJ-45 Auto-MDI / MDI-X ports |
| 2 10/100/1000Base-T RJ-45 port | |
| SFP / mini-GBIC Slot | 2 SFP interface, shared with Port-9 and Port-10 |
| Switch Yapısı | Store-and-Forward |
| Switch Fabric | 5.6Gbps / non-blocking |
| Switch Throughput | 4.1Mpps |
| Adres Tablosu | 8K entries |
| Data Aktarım Hızı | 1Mbit |
| Maximum Frame Size | 1522 Bytes packet |
| Akış Kontorlü | Back pressure for half duplex, IEEE 802.3x Pause Frame for full duplex |
| LED | Per unit: Power (Green), Power 1 (Green), Power 2 (Green), Fault (Red), Master (Green), FWD (Green) |
| 8 port 10/100: Link/Activity (Green), Full duplex/Collision (Yellow) | |
| SFP port: LNK/ACT(Green), 1000T: LNK/ACT(Green), 1000M(Green) | |
| Konsol Araüyüzü | One RJ-45-to –RS-232 male connector for switch management |
| Güç Girişi | 48V DC, Redundant power with polarity reverse protection function |
| Güç Tüketimi | 135.2 Watts |
| Ölçüler (W x D x H) | 72mm x 105mm x 152mm |
| Ağırlık | 993g |
| ESD Koruma | 6KV DC |
| EFT Koruma | 3KV DC |
| Power Over Ethernet | |
| PoE Standardı | IEEE 802.3af PSE (Power Sourcing Equipment) |
| Units can be Powered | 8 |
| PoE Power Output | 48V DC, Max. 15.4 Watts, 350mA |
| Power Pin Assignment | 1/2(+), 3/6(-) |
| Layer 2 Fonksiyonu | |
| Yönetim Arayüzü | Console, Telnet, Web Browser, SNMP v1, v2c and v3 |
| Port Konfigürasyonu | Port disable / enable |
| Auto-negotiation 10/100Mbps full and half duplex mode selection | |
| Flow Control disable / enable | |
| Bandwidth control on each port | |
| VLAN | Port-Based VLAN, up to 9 VLAN groups |
| IEEE 802.1q Tagged Based VLAN , 4K VLAN ID, up to 256 VLAN groups | |
| Spanning Tree | IEEE 802.1D Spanning Tree |
| IEEE 802.1w Rapid Spanning Tree | |
| Link Aggregation | Supports 4 groups of 4-Port trunk support |
| QoS | Traffic classification based on : |
| Port Number, | |
| 802.1Q Tag, | |
| 802.1p priority, | |
| I P DSCP / TOS field in IP Packet | |
| IGMP Snooping | v1 and v2, 256 multicast groups and IGMP query |
| Band Genişliği Kontrolü | Per port bandwidth control |
| Ingress: 100Kbps~102Mbps or 100Kbps ~ 256Mbps(Gigabit port) | |
| Egress: 100Kbps~102Mbps or 100Kbps ~ 256Mbps(Gigabit port) | |
| Port Mirror | RX / TX / Both |
| Güvenlik | Supports 100 entries of MAC address for static MAC and another 100 for MAC filter |
| Supports 10 IP addresses that have permission to access the switch management and to prevent unauthorized intruder | |
| SNMP MIBs | RFC-1213 MIB-II |
| RFC-2863 Interface MIB | |
| RFC-1493 Bridge MIB | |
| RFC-2674 Extended Bridge MIB (Q-Bridge) | |
| Private MIB | |
| Standart Uygunluğu | |
| Yönetmelik Uygunluğu | FCC Part 15 Class A, CE |
| Sertifikalar | UL 331236 |
| Standart Uygunluğu | IEEE 802.3 10Base-T |
| IEEE 802.3u 100Base-TX/100Base-FX | |
| IEEE 802.3ab 1000Base-T | |
| IEEE 802.3z Gigabit SX/LX | |
| IEEE 802.3x Flow Control and Back pressure | |
| IEEE 802.1D Spanning tree protocol | |
| IEEE 802.1w Rapid spanning tree protocol | |
| IEEE 802.1p Class of service | |
| IEEE 802.1Q VLAN Tagging | |
| IEEE 802.1x Port Authentication Network Control | |
| IEEE 80.2.3af Power over Ethernet | |
| Çevresel Özellikler | |
| Çalışma | Temperature: -40 ~ 75 Degree C |
| Relative Humidity: 5% ~ 90% | |
| Saklama | Temperature: -40 ~ 85 Degree C |
| Relative Humidity: 5% ~ 95% (non-condensing) | |
Teknik Kısa
PoE : PoE
Port Hızı : 100 Mbps
Yönetilebilirlik : Yönetilebilir Layer 2
Aktarım Port Sayısı : 4
PoE Port Sayısı :
8 Port
8 Port
