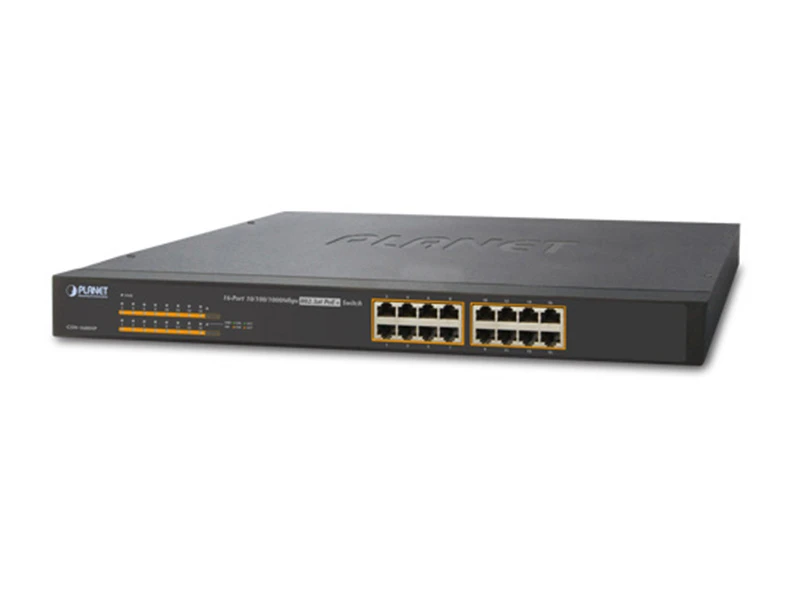

Planet GSW 1600HP PoE Switch
Özellikler
Interface
- 16-Port 10/100/1000Mbps Gigabit Ethernet RJ-45 ports
- Each port supports 52V DC power to PoE Powered Device
- Complies with IEEE 802.3af / IEEE 802.3at Power over Ethernet
- Up to 16 IEEE 802.3af / IEEE 802.3at devices powered
- Supports PoE Power up to 30 Watts for each PoE port
- Auto detect powered device (PD)
- Circuit protection prevents power interference between ports
- Remote power feeding up to 100m
Switching
- Hardware based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
- Flow control for full duplex operation and back pressure for half duplex operation
- Integrates address look-up engine, supporting 8K absolute MAC addresses
- 9K Jumbo Frame supports at all speed (10/100/1000Mbps)
- Automatic address learning and address aging
- Supports Pre-Energy-Efficient Ethernet (EEE) function (IEEE 802.3az)
Hardware
- 19-inch desktop size, 1U height
- LED indicators for PoE ready and PoE activity
- Ethernet Link Energy-Saving technology
- Link down power saving- Intelligent scales power based on cable length
Teknik Özellikler
| Hardware Specification | ||
| Network Port | 16 10/100/1000Base-T auto-MDI/MDI-X RJ-45 ports | |
| PoE Inject Port | 16-Port with 802.3af / 802.3at PoE injector function | |
| LED Display | System | |
| Power (Green) | ||
| PoE Ethernet Interfaces | ||
| PoE In-Use (Orange) | ||
| 10/100/1000Base-T Ports | ||
| 1000 (LNK/ACT, Green), 10/100 (LNK/ACT, Orange) | ||
| Switch Architecture | Store and Forward switch architecture | |
| MAC Address | 8K MAC address table with auto learning function | |
| Switch Fabric | 32Gbps | |
| Switch Throughput | 23.8Mpps@64Bytes | |
| Jumbo Packet Size | 9K Bytes | |
| Flow Control | Back pressure for half-duplex. IEEE 802.3x pause frame for full-duplex | |
| Power Requirements | AC 100~240V, 50/60Hz, 3.5A max. | |
| Power Consumption | Max. 260 watts / 885 BTU | |
| Dimensions (W x D x H) | 445 x 207 x 45 mm (1U height) | |
| Weight | 2.54kg | |
| Power over Ethernet | ||
| PoE Standard | IEEE 802.3af Power over Ethernet / PSE | |
| IEEE 802.3at Enhancement Power over Ethernet / PSE | ||
| PoE Power Output | Per Port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af) | |
| Per Port 52V DC, 590mA. max. 30 watts (IEEE 802.3at) | ||
| Power Pin Assignment | Port 1/3/5/7/9/11/13/15 | |
| 1/2(-), 3/6(+) - Endspan | ||
| Port 2/4/6/8/10/12/14/16 | ||
| 4/5(+), 7/8(-) - Midspan | ||
| PoE Power Budget | 220 watts | |
| Number of PD, 7Watts | 16 | |
| Number of PD, 15.4Watts | 14 | |
| Number of PD, 30.8Watts | 7 | |
| Environment | ||
| Operating environment | 0 ~ 50 degrees C | |
| Storage environment | -40 ~ 70 degrees C | |
| Operating Humidity | 5 ~ 95%, relative humidity, non-condensing | |
| Storage Humidity | 5 ~ 95%, relative humidity, non-condensing | |
| Standard Conformance | ||
| Standard Compliance | IEEE 802.3 | Ethernet |
| IEEE 802.3u | Fast Ethernet | |
| IEEE 802.3x | Flow Control | |
| IEEE 802.3af | Power over Ethernet | |
| IEEE 802.3at | Enhanced Power over Ethernet | |
| IEEE 802.3az | Pre-Energy-Efficient Ethernet | |
| Regulation Compliance | FCC Class A, CE | |
