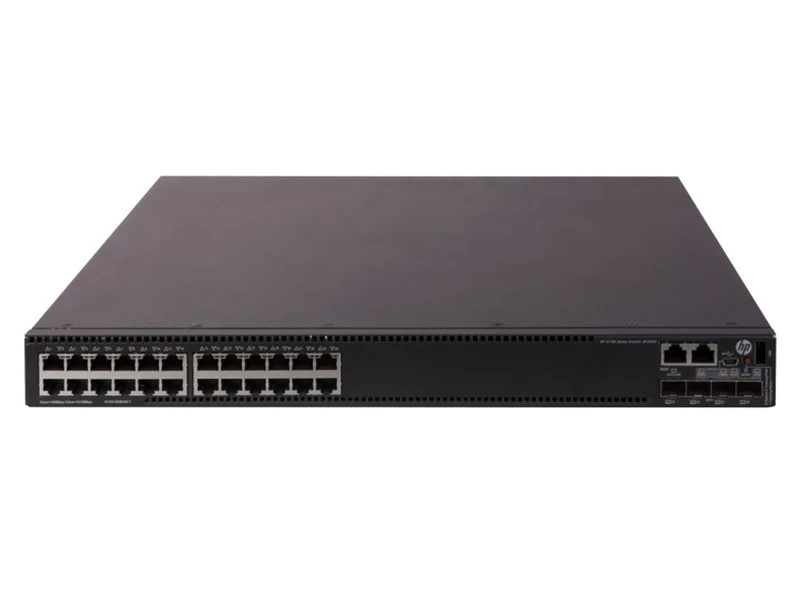

HP 5130 24G PoE Plus 4SFP Plus 1 slot HI JH325A 10/100/1000 PoE Switch

Teknik Özellikler

General
Device Type : Switch - 24 ports - Managed - stackable
Enclosure Type : Rack-mountable 1U
Subtype : Gigabit Ethernet
Ports : 24 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+
Power Over Ethernet (PoE) : PoE+
PoE Budget : 740 W
Performance
Throughput: up to 154.8 Mpps
Routing/switching capacity: 208 Gbps
Capacity
Simultaneous VLANs: 4094
IPv4 routing table entries: 32768
IPv6 routing table entries: 16384
Jumbo Frame Support : 9KB
Routing Protocol : RIP-1, RIP-2, IGMPv2, IGMP, PIM-SM, IGMPv3, MSDP, MLD
Remote Management Protocol : SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTPS, TFTP, SSH-2, CLI, SCP
Encryption Algorithm : SSL
Authentication Method : Secure Shell (SSH), RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2), HWTACACS
Features :  Flow control, DHCP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), Syslog support, Weighted Round Robin (WRR) queuing, IPv6 support, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Virtual Yol Tarifi Göster,Redundancy Protocol (VRRP) support, Multiple Spanning Tree Protocol (MSTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Committed Access Rate (CAR), DHCP server, Device Link Detection Protocol (DLDP) support, Equal-Cost Multipath (ECMP), STP Root Guard, IPv4 support, LLDP support, Smart Link Pass-Through, dynamic ARP protection, DHCP protection, port isolation, non blocking ports, Strict Priority (SP), Generic Attribute Registration Protocol (GARP), Intelligent Resilient Framework Technology (IRF), OpenFlow support, IP source guard
Compliant Standards : IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3az
RAM : 2 GB - SDRAM
Flash Memory : 512 MB
Expansion / Connectivity
Interfaces : 24 x 1000Base-T - RJ-45
       4 x 10Gbit LAN - SFP+
       1 x serial (console)
       1 x USB 2.0
       1 x management (LAN) - RJ-45
Expansion Slots : 1 (total) / 1 (free) x Expansion Slot
Installed Modules Qty (Max) :  1 (installed) / 1 (max)
Power
Power Device : Internal power supply
Installed Qty : 0 (installed) / 2 (max)
Power Redundancy : Optional
Power Redundancy Scheme  : 1+1 (with optional power supply)
Voltage Required : AC 120/230 V ( 50/60 Hz )
Power Consumption Operational : 650 Watt
Miscellaneous
Rack Mounting Kit : Included
Compliant Standards : VCCI, EN 61000-3-2, AS/NZS 60950-1, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, EN 60825-1, GB 4943, CAN/CSA C22.2 No. 60950-1, ANSI C63.4-2009, EN 60825-2, EN 61000-3-3:2008, EN 61000-4-4:2012, EN 61000-4-5:2006, EN 61000-4-6:2009, EN 61000-4-11:2004, EN 300 386 V1.6.1, VCCI V-3/2013.04 Class A, CISPR 24:2010, EN 55022:2010 Class A, FCC CFR47 Part 15 A
Dimensions & Weight
Width : 43.99 cm
Depth : 46 cm
Height : 4.37 cm
Weight : 12.5 kg
Environmental Parameters
Min Operating Temperature : -5 °C
Max Operating Temperature : 45 °C
Humidity Range Operating : 10 - 90% (non-condensing)
Min Storage Temperature : -40 °C
Max Storage Temperature : 70 °C
Humidity Range Storage : 5 - 95% (non-condensing)


Teknik Kısa

PoE : PoE Plus
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 3
Aktarım Port Sayısı : 4
Aktarım Türü : Gbit Fiber
Montaj Tipi : Rack Mount
PoE Port Sayısı : Tooltip 24 Port
PoE Güç Bütçesi : 400-800 Watt
