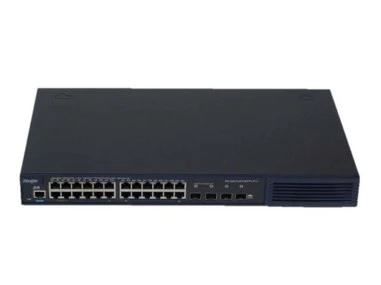

Ruijie RG 5750 24SFP/8SFP P PoE Switch

Özellikler

24 10/100/1000BASE-T Ports (PoE+),
8 100/1000BASE-X SFP Ports (combo),
2 Extension Slots (Stack or Uplink),
2 Modular Power Slots, 1 USB 2.0

Teknik Özellikler

Model	RG-S5750-24GT/8SFP-P
Optical Module Type	l Ethernet 100 MB:
	FE-SFP-LX-MM1310
	FE-SFP-LH15-SM1310
	FE-SFP-LX20-SM1310-BIDI
	FE-SFP-LX20-SM1550-BIDI
	FE-SFP-LH40-SM1310-BIDI
	FE-SFP-LH40-SM1550-BIDI
	l Ethernet 1000 MB:
	MINI-GBIC-SX
	MINI-GBIC-LX
	MINI-GBIC-LH40
	MINI-GBIC-ZX50
	MINI-GBIC-ZX80
	MINI-GBIC-ZX100
	GE-SFP-LX20-SM1310-BIDI
	GE-SFP-LX20-SM1550-BIDI
	GE-SFP-LH40-SM1310-BIDI
	GE-SFP-LH40-SM1550-BIDI
	l 1000Base-T :
	Mini-GBIC-GT
	* The supported module type may change at any time. For the detailed change information, consult the Ruijie Networks.
	* BIDI optical module must be used in pairs. For example, one port use FE-SFP-LX20-SM1310-BIDI is used at one end, then FE-SFP-LX20-SM1550-BIDI must be applied to the other end.Please refer to Appendix B for BIDI optic module details.
Extended Module Type	M5000E-02SFP/GT
	M5000E-01XS
	M5000E-02XS
SFP Port	100Base-X
	1000Base-X
RPS Type	Dual power supplies
Power Supply	AC input (M5000E-AC500P):	DC input (M5000E-DC500P):
	Rated voltage range: 100 V AC to 240 V AC	Rated voltage range: -36 V DC to -72 V DC
	Frequency: 50/60 Hz	Rated current: 16.5 A
	Rated current: 7 A to 3.5 A
	HVDC input:
	Voltage range: 192 V DC to 290 V DC
	Current range: 3.5 A to 2.5 A
Input Leakage Current	≤3.5mA
PoE Function	All the RJ45 ports support the PoE function, and each port supports a maximum of 30 W PoE power supply. The maximum power supported depends on the configured power supply.
Max. Power Consumption	Without extension modules or PD load	50 W
	Without extension modules but with 24-port PD load	900 W
	With extension modules but without PD load	65 W
	With extension cards and 24-port PD load	915 W
Temperature	Working temperature: 0ºC to 50ºC
	Storage temperature: -40ºC to 70ºC
Humidity	Working humidity: 10% to 90% RH
	Storage humidity: 5% to 90% RH
Fan	Support fan speed adjustment and the fault warning function.
Temperature Warning	Support
EMC	GB9254-1998
Security Compliance	GB4943-2001
Dimensions (W x D x H)	440 mm x 400 mm x 44 mm
Weight	With extension modules and power supplies 8.3 kg ;
	Without extension modules or power supplies 7.3 kg
