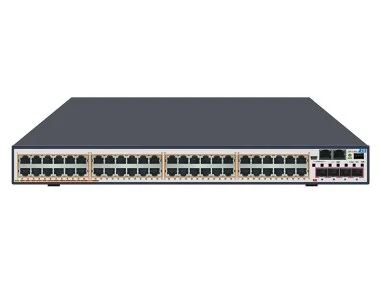

ZTE 5950 56PM H 10/100/1000 PoE Switch
Teknik Özellikler
| Dimensions(H*W*D) |
| 43.6mm*442mm*440mm |
| Fixed |
| 48 GE RJ45 |
| Expansion Card Slot |
| 2 |
| Expansion Card Type |
| 4*1GE SFP card |
| 4*1GE RJ45 card |
| 4*10GE SFP+ card |
| 2*40G MiniSAS stacking card |
| Weight |
| 9.2kg |
| Management Port |
| 1 GE MNG, 1RJ45 Console, 1 Mini USB Console |
| DC Power Supply |
| -38V ~ -57V |
| HVDC Power Supply |
| 240V/336V |
| AC Power Supply |
| Rated voltages: 100V~240V,50Hz~60Hz |
| Maximum voltages: 90V~286V,45Hz~66Hz |
| Maximum Power Consumption |
| 1036W (POE:940W) |
| Typical Power Consumption |
| 76.6W |
| Power Redundancy Pattern |
| Two independent and swappable power supply module, support AC 1+1, DC 1+1, mixed AC DC 1+1 |
| Heat Dissipation Pattern |
| Fan cooling, support multilevel speed regulation |
| Heat Dissipation |
| 214 BTU/h |
| Working Temperature |
| Long term working temperature: -10 oC ~ +50 oC |
| Short term working Temperature: -10 oC ~ +55 oC |
| Humidity |
| 5%~95% |
| Working Altitude |
| 2000 meters |
| MTBF/MTTR |
| 400000 hours/ < 30 minutes |
| Switching Capacity |
| 336Gbps |
| Packet Forwarding Rate |
| 252Mpps |
Teknik Kısa
PoE : PoE Plus
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 2
Aktarım Port Sayısı : 2
Aktarım Türü : Gbit Fiber
PoE Port Sayısı :
48 Port
48 Port PoE Güç Bütçesi : 800 Watt >
