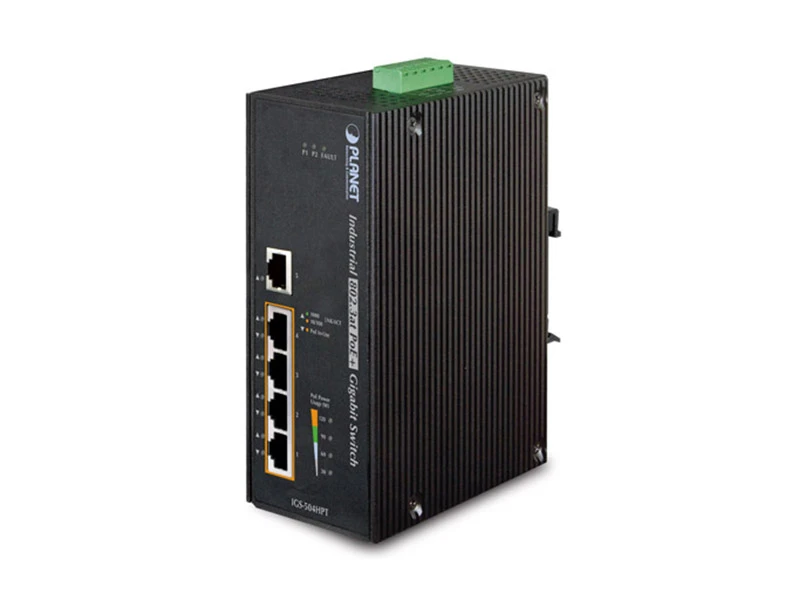

Planet IGS 504HPT Endüstriyel PoE Switch
Özellikler
Physical Port
- 5-port 10/100/1000Base-T RJ-45 with 4-port IEEE 802.3af / 802.3at PoE Injector
- Complies with IEEE 802.3af / IEEE 802.3at Power over Ethernet Plus End-Span PSE
- Up to 4 IEEE 802.3af / 802.3at devices powered
- Supports PoE Power up to 30.8 watts for each PoE port
- Provides DC 52V power over RJ-45 Ethernet cable to PD with Ethernet port
- Auto-detects IEEE 802.3af/at equipment and protects devices from being damaged by incorrect installation
- Remote power feeding up to 100m
Layer 2 Features
- Supports Auto-Negotiation and 10/100Mbps half / full duplex and 1000Mbps full duplex mode
- Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x PAUSE frame flow control (full-duplex)
- Automatic address learning and address aging
- Industrial Case / Installation
- IP30 aluminum metal case protection
- DIN Rail and Wall Mount Design
- 48V DC redundant power with polarity reverse protect function and removable terminal block for master and slave power
- Supports EFT protection of 6000 VDC for power line
- Supports 6000 VDC Ethernet ESD protection
- -40 to 75 degrees C operating temperature
Teknik Özellikler
Hardware Specifications | ||
Copper Ports | 5 x 10/100/1000Base-T RJ-45 TP | |
Auto-MDI/MDI-X, Auto-Negotiation | ||
Connector | Removable 6-pin terminal block | |
Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2 | ||
Alarm | Provides one relay output for power failure | |
Alarm Relay current carry ability: 1A @ DC 24V | ||
LED | 3 x LED for System and Power: | |
Green: DC Power 1 | ||
Green: DC Power 2 | ||
Green: Power Fault | ||
2 x LED for Per Copper Port (Port-1~Port-4): | ||
Green: 1000 LNK/ACT, Orange:100 LNK/ACT | ||
Orange: PoE In-use | ||
1 x LED for Port-5: | ||
Green: 1000 LNK/ACT, Orange:100 LNK/ACT | ||
4 x LED for PoE Power Usage (W): | ||
Orange: 30, 60, 90 and 120W | ||
ESD Protection | 6KV DC | |
EFT Protection | 6KV DC | |
Enclosure | IP30 aluminum metal case | |
Installation Type | DIN rail kit or wall mount | |
Dimensions (W x D x H) | 152 x 107x 72 mm | |
Weight | 1478g | |
Power Requirements | 48V DC, 5A max. | |
Redundant power with polarity reverse protection function | ||
Power Consumption / Dissipation | 14.1 watts / 48 BUT (System loading without PoE) | |
134.1 watts / 457 BTU (Full loading with PoE function) | ||
Power over Ethernet | ||
PoE Standard | IEEE 802.3af / IEEE 802.3at Power over Ethernet / PSE | |
PoE Power Supply Type | End-Span | |
Power Pin Assignment | 1/2(+), 3/6(-) | |
PoE Power Output | Per port 52V DC, 275mA. Max. 15.4 watts (IEEE 802.3af) | |
Per port 52V DC, 535mA. Max. 30 watts (IEEE 802.3at) | ||
Max. number of Class 4 PD | 4 | |
Switch Specification | ||
Switch Processing Scheme | Store-and-Forward | |
Address Table | 1K entries | |
Flow Control | Back pressure for half duplex | |
IEEE 802.3x Pause Frame for full duplex | ||
Switch fabric | 10Gbps | |
Throughput (packet per second) | 7.44Mpps@64bytes | |
Maximum Transmit Unit | 9216 bytes | |
Speed | TP: 10/20Mbps, 100/200Mbps, 2000Mbps | |
Standards Conformance | ||
Standards Compliance | IEEE 802.3 Ethernet / 10Base-T | |
IEEE 802.3u Fast Ethernet / 100Base-TX | ||
IEEE 802.3ab Gigabit Ethernet / 1000Base-T | ||
IEEE 802.3x Full-Duplex Flow Control | ||
IEEE 802.3at High Power over Ethernet | ||
IEEE 802.3af Power over Ethernet | ||
Regulation Compliance | FCC Part 15 Class A, CE | |
Stability Testing | IEC60068-2-32(Free fall) | |
IEC60068-2-27(Shock) | ||
IEC60068-2-6(Vibration) | ||
Environment | ||
Temperature | Operating: | -40~75 degree C |
Storage: | -40~75 degrees C | |
Humidity | Operating: | 5~95% (Non-condensing) |
Storage: | 5~95% (Non-condensing) |
