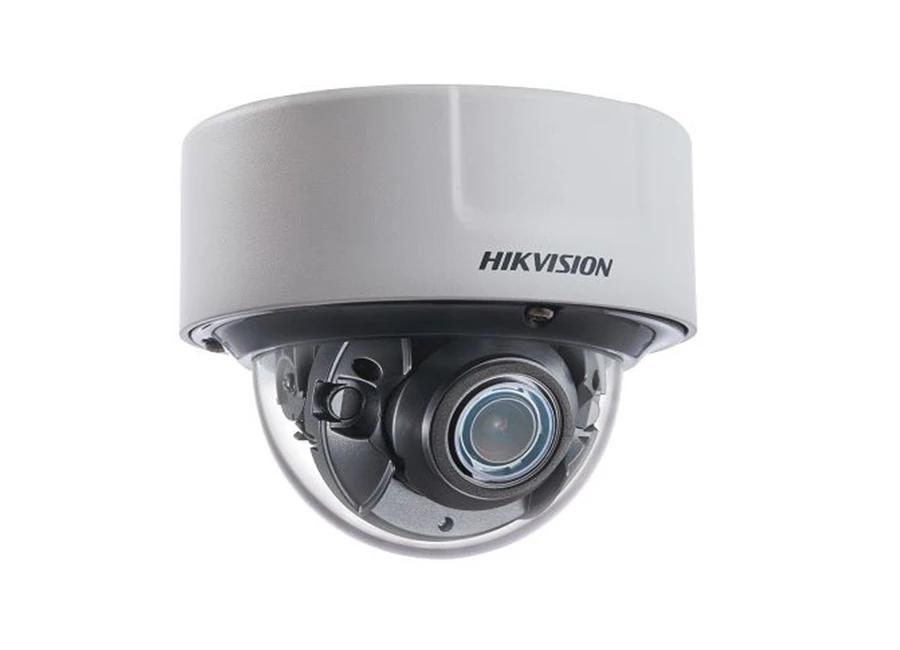

Hikvision iDS 2CD8146G0 IZS IP Dome Kamera

Özellikler

1/1.8" Progressive Scan CMOS
Max. 2560 × 1440 @30fps
140dB WDR
H.265+, H.265, H.264+, H.264
IR range up to 30 m

Teknik Özellikler

Camera
Image Sensor	1/1.8" Progressive Scan CMOS
Minimum Aydınlatma	Color: 0.0045 Lux @ (F1.8, AGC ON), 0 Lux with IR
Slow shutter	Yes
Objektif Hızı	1 s to 1/100,000 s
Lens	Motorized lens, 8 to 32 mm
Auto Iris	DC drive
Ayarlanan Aralık	Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Day& Night	IR cut filter with auto switch
Wide Dynamic Range	140dB
Focus	Auto, semi-auto, manual
Compression Standard
Video Compression	H.265+/H.265/H.264+/H.264/MJPEG
H.264 Türü	Baseline Profile/Main Profile/High Profile
Video bit rate	32Kbps~16Mbps
Audio Compression	G.711/G.722.1/G.726/MP2L2/PCM/MP3
Ses Bit Hızı	64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)/ 8-320Kbps(MP3)
Çift Akış	Yes
Üçüncü Akım	Yes
Max. Image Resolution	2560 × 1440
Ana Akış	50Hz: 25fps (704 × 576, 640 × 480)
Ana Akış	60Hz: 30fps (704 × 480, 640 × 480)
Çerçeve Hızı	50Hz: 25fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Çerçeve Hızı	60Hz: 30fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Üçüncül Akış	50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
Üçüncül Akış	60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Görüntü İyileştirme	BLC, HLC, 3D DNR, Defog, EIS, distortion correction
Image Setting	Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
Görüntü Düzeltme	Yes
Otomatik kazanç kontrolü	Yes
Resim Yerleşimi	LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
Network
Security	Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS1.0, TLS1.1
Network Storage	microSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS, SMB/CIFS), ANR;Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Protokoller	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
Intelligent
Face Capture	Face detection performance: detects up to 30 faces at the same time Detectable face position: supports swing left and right from -60° to 60°,tilt up and down from -30° to 30°; Uploads face with background and closed-up face pictures
Interface
Ses Girişi	1-ch 3.5 mm audio interface, Mic in/Line in. 1 built-in Microphone
Ses Çıkışı	1-ch 3.5mm audio interface
Alarm	1 input, 1 output (max. 24 VDC/VAC, 1A)
Video Output	1Vp-p composite output (75 Ω/BNC) (For adjustment only)
Dahili Depolama	Built-in micro SD/SDHC/SDXC slot, up to 256 GB
Reset Butonu	Yes
Smart Feature-set
Region of Interest	4 fixed regions and dynamic face tracking for each stream
Linkage Method	Trigger recording: memory card, network storage, pre-record and post-record
	Trigger captured pictures uploading: FTP, HTTP, NAS, Email, HTTPS
	Trigger notification: HTTP, ISAPI, alarm output, Email, HTTPS
Smart Event	Line crossing detection, up to 4 lines configurable
	Intrusion detection, up to 4 regions configurable
	Region entrance detection, up to 4 regions configurable
	Region exiting detection, up to 4 regions configurable
	Unattended baggage detection, up to 4 regions configurable
	Object removal detection, up to 4 regions configurable
	Scene change detection, audio exception detection, defocus detection
General
Güç Tüketimi	12 VDC ±20%, reverse polarity protection; two-core terminal block; 24 VAC±20%; PoE (802.3at, type 2, class 4)
Impact Protection	IK10
Ağırlık	Camera: approx. 940 g (2.1 lb.)
Ağırlık	With Package: approx. 1410 g (3.1 lb.)
