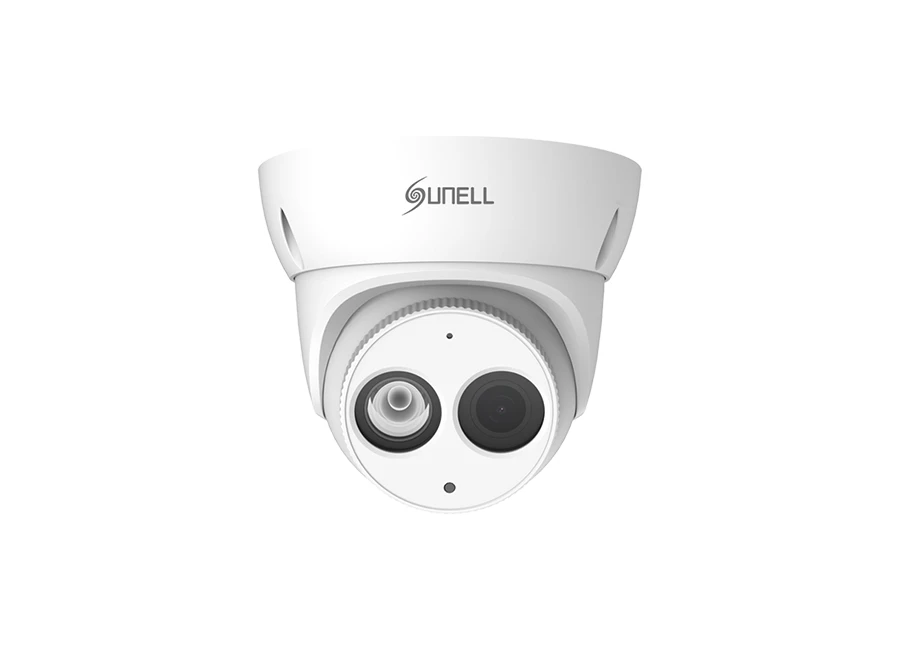

Sunell SN IPR5880CNBN B IP Eyeball Kamera
Özellikler
Teknik Özellikler
| Camera | |
| Image Sensor | 1/2.5” Progressive Scan CMOS |
| Effective Pixels | 3840(H)×2160(V) |
| Electronic Shutter | 1/5-1/20,000s |
| Min. illumination | Color: 0.01Lux @(F1.2,AGC ON) , |
| B/W: 0Lux @(IR LED ON) | |
| S/N Ratio | 55dB |
| Day/Night | ICR |
| Wide Dynamic | WDR (120dB) |
| Range | |
| IR Range | Up to 30m |
| IR On/Off Control | Auto/ Manual |
| IR LEDs | 1pcs |
| Pan/Tilt/Rotation Range | Pan: 0˚~360˚, Tilt: 0˚~90˚, Rotation: 0˚~360˚ |
| Lens | |
| Lens Type | Fixed |
| Iris | Fixed Iris |
| Focal Length | 2.8mm (3.6mm optional) |
| F Number | F2.2 |
| Angle of View | 110° |
| Focus Control | Fixed |
| Video | |
| Compression | H.265, H.264, MJPEG |
| Max. Resolution | 8MP (3840×2160) |
| Streaming Capability | 3 Streams |
| Stream / | Stream1: 3840×2160 / 3072×2048 / 2592×1520 / 1920×1080 @25/30fps |
| Frame Rate | Stream2: D1 / VGA / CIF / QVGA @25/30fps |
| Stream3: VGA / CIF / QCIF @25/30fps | |
| Bit Rate Control | CBR/VBR |
| Bit Rate | Stream1: 500kbps~16Mbps |
| Stream2: 10Kbps~6Mbps | |
| Stream3: 10Kbps~3Mbps | |
| Image Enhancement | HLC / BLC / Anti-shake / Defog / WDR (120dB) |
| White Balance | Support |
| Gain Control | Auto/Manual |
| Noise Reduction | 2D/3D DNR |
| Smart IR | Support |
| Mirror | Support |
| Aisle Mode | Support |
| Region of Interest | Support |
| Motion Detection | Support |
| Privacy Masking | Support |
| Audio | |
| Compression | G.711, RAW_PCM |
| Bit Rate | 8kbps, 16kps, 64kbps |
| Network | |
| Protocols | IPv4/IPv6, 802.1x, HTTP, HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, ARP, SNMP |
| Interoperability | ONVIF, SDK, CGI |
| Streaming Method | Unicast |
| Max. User Access | 10 Users |
| Web Viewer | <IE11, Chrome, Firefox |
| Management Software | SunView |
| Smart Phone | IOS, Android |
| Intelligence | |
| IVS | Perimeter, Single Virtual Fence, Double Virtual Fences, Loiter, Multi Loiter, Object Left, Object Removed, Abnormal Speed, Converse, Illegal Parking, Signal Bad |
| Interface | |
| Ethernet | 1 Ethernet (10/100 Base-T) RJ-45 Connector |
| Audio | N/A |
| Alarm | N/A |
| CVBS Output | N/A |
| Reset Button | N/A |
| Storage | N/A |
| Electrical | |
| Power Supply | DC12V/POE (IEEE 802.3af) |
| Power Consumption | 3.5W (IR LED OFF), 8W (IR LED ON) |
| Operating Temperature | -30°C ~ 50°C (-22°F ~ 122°F ) |
| Operating Humidity | Less than 90% RH |
| Ingress Protection | IP66 |
| Certifications | CE / FCC |
| Casing | Metal |
| Dimensions | φ118×103mm |
| Net Weight | 610g |
Sunell SN IPR5880CNBN B IP Eyeball Kamera Pdf Dosyası612.79 KB
Teknik Kısa
Depolama : Var
Çözünürlük : 8MP
Ses : Var
Irled : Var
