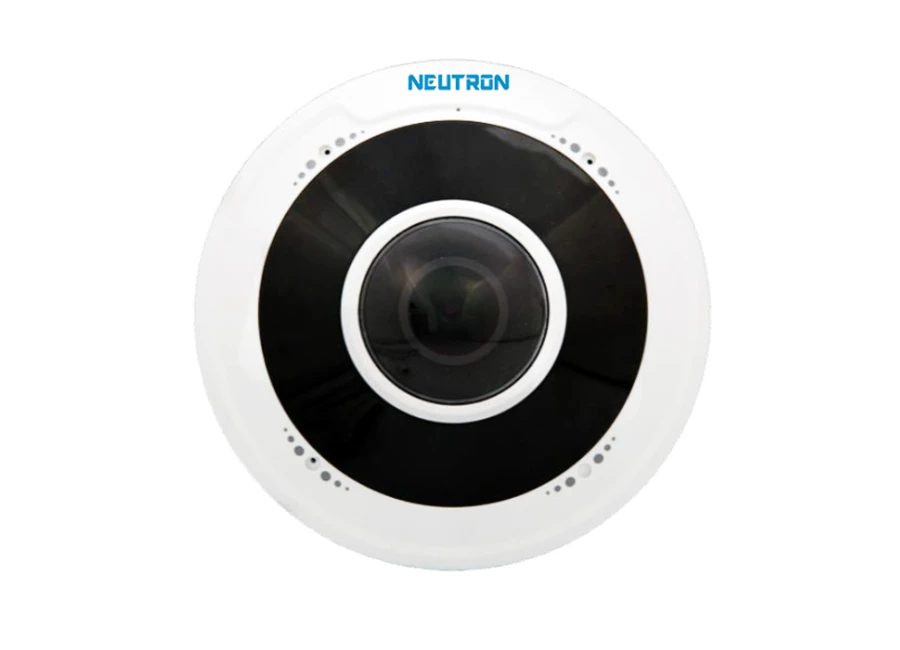

Neutron IPC814SR DVPF16 Panoramik IP Kamera

Özellikler

Ultra wide angle lens, 180°panoramic image
Smart IR, Up to 10 m (33 ft) IR distance
3D DNR (Digital Noise Reduction)
Ultra265, H.265, H.264, MJPEG
Built-in omnidirectional microphone
IK10, IP66

Teknik Özellikler

	IPC814SR-DVPF16
Camera
Image sensor	1/3", 4.0 megapixel, progressive scan, CMOS
Lens	1.6mm@F1.6
DORI Distance	Lens (mm)	Detect (m)	Observe (m)	Recognize (m)	Identify (m)
	1.Haz	36	14/4	7/2	3/7
Angle of View	180°
Shutter	Auto/Manual, shutter time: 1 ~ 1/100000s
Minimum Illumination	Colour: 0.01Lux (F1.6, AGC ON)
	0Lux with IR
Day / Night	IR-cut filter for day & night function
Digital noise reduction	2D/3D DNR
S/N	>55dB
IR Range	UP to 10m (33ft)
Defog	Digital Defog
WDR	120dB
Video
Compression	Ultra265, H.264, MJPEG
H.264 code profile	Baseline profile, Main Profile, High Profile
Frame Rate	Main Stream : 4MP (2560*1440), Max 25fps;
	Sub Stream: 1080P (1920*1080), Max 25fps;
	Third Stream: D1 (720*576), Max 25fps
BLC	Supported
OSD	Up to 8 OSDs
ROI	Up to 8 areas
Privacy Mask	Up to 8 areas
Motion Detection	Up to 4 areas
General Function	Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio Compression	G.711
Two-way audio	Supported
Suppression	Supported
Sampling Rate	8KHZ
Storage
Edge Storage	Micro SD, up to 256GB
Network Storage	ANR
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
Compatible Integration	ONVIF (Profile S, Profile G, Profile T), API
Live View Display
Mount Type	Support table, wall, and ceiling
Interface
Audio I/O	Audio interface
	Input: impedance 35kΩ; amplitude 2V [p-p]
	Output: impedance 600Ω; amplitude 2V [p-p]
	3 built-in omnidirectional microphone
Alarm I/O	1/1
Built-in Mic	Supported
Video Output	1 BNC, impedance 75Ω; amplitude 1V [p-p]
Network	1 RJ45 10M/100M Base-TX Auto-adaptive Ethernet
General
Power	DC 12V±25%, PoE (IEEE 802.3af)
	Power consumption: Max 11W
Dimensions (Ø x H)	Φ125 x 43.7mm (Φ4.9” x 1.7”)
Weight	0.39kg (0.86lb)
Working Environment	-40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH
Ingress Protection	IP66
Vandal Resistant	IK10
Reset Button	Supported
