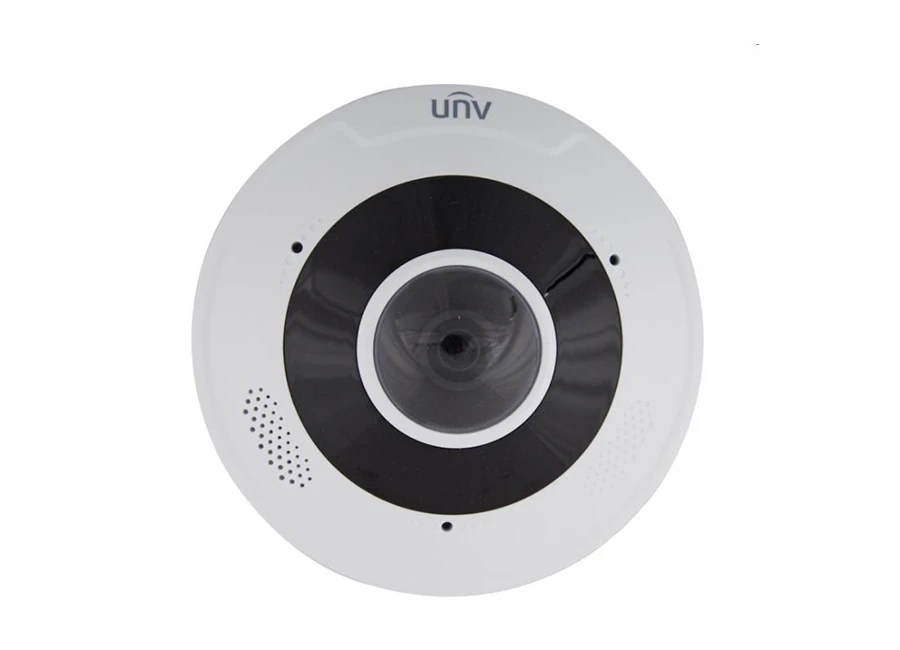

Uniview IPC868ER VF18 B IP HD Panoramik Kamera

Özellikler

Ultra wide angle lens, 360°panoramic image
Embedded infrared light, 360°fill-in light, Up to 10 m (33 ft) IR distance
2D/3D DNR (Digital Noise Reduction)
Max. 4000 * 3000 resolution
Ultra265,H.265, H.264, MJPEG
Built-in microphone & speaker, two-way talk supported
ROI (Region of Interest)
Distortion correction supported
ONVIF Conformance
Support PoE power supply
Wide temperature range: -30°C to 60°C (-22°F to 140°F)
Wide voltage range of ±25%
IK10, IP66

Teknik Özellikler

Camera
Image sensorq	1/1.7", progressive scan,12.0 megapixel, CMOS
Lens	1.8mm@ F2.4
Shutter	Auto/Manual, shutter time：1/6 s ~1/100000 s
Minimum Illumination	Colour: 0.01 Lux (F2.4, AGC ON)
	0 Lux with IR
Day / Night	IR-cut filter for day & night function
Digital noise reduction	2D/3D DNR
S/N Ratio	>52dB
IR Range	Up to 20 m (65 ft)
Defog	Digital Defog
WDR	DWDR
Video
Compression	Ultra265, H.265, H.264,MJPEG
H.264 code profile	Baseline profile, Main Profile, High Profile
Fisheye Frame Rate	Main Stream :15 fps(4000×3000, 3000×3000), 25 fps(2560×2560);
	Sub Stream: 15 fps(2000×1500, 2000×2000), 25 fps(2000×2000);
	Third Stream: 15 fps(720×576, 320×288)
Panorama	25 fps(3000×2000);
Panorama	15 fps(4000×3000,3000×2000,3000×1500)
Frame Rate PTZ	15 fps(1920×1080)
ROI	Up to 8 areas
BLC	Supported
OSD	Up to 8 OSDs
Privacy Mask	Up to 8 areas
Motion Detection	Up to 4 areas
Audio
Audio Compression	G.711
Two-way audio	Supported
Suppression	Supported
Sampling Rate	8 KHZ
Storage
Edge Storage	Micro SD, up to 128GB
Network Storage	ANR
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP
Compatible Integration	ONVIF(Profile S, Profile G), API
Live View Display
Mount Type	Support table, wall, and ceiling
Display Mode	Support 10 display modes in total (including display modes of mount types and decoding modes):
	Display Mode:Original Image, Fisheye+4PTZ, Panoramic
	Preview Mode: Original Image , 360°Panoramic+1PTZ, 180°Panoramic, Fisheye+3PTZ , Fisheye+4PTZ, 360°Panoramic+6PTZ, Fisheye+8PTZ
Interface
Audio I/O	Audio interface
	Input: impedance 35 kΩ; amplitude 2 V [p-p]
	Output: impedance 600 Ω; amplitude 2 V [p-p]
Alarm I/O	2.Oca
	Multiple Alarm linkage editable
Built-in Mic	Supported
Built-in Speaker	Supported
Serial	1 channel RS485 interface
Network	1 RJ45 10M/100M Base-TX Auto-adaptive Ethernet
Video Output	1 BNC, impedance 75 Ω; amplitude 1 V [p-p]
General
Power	DC12V±25%, PoE（IEEE802.3af）
	Power consumption: Max. 21W
Dimensions (Ø x H)	Φ149mm x 55mm (Φ5.87” x 2.17”)
Weight	0.5kg(1.1lb)
Working Environment	-35℃~60℃(-31°F ~ 140°F), Humidity :10%~90% RH
Ingress Protection	IP66
Vandal Resistant	IK10
Reset Button	Supported
