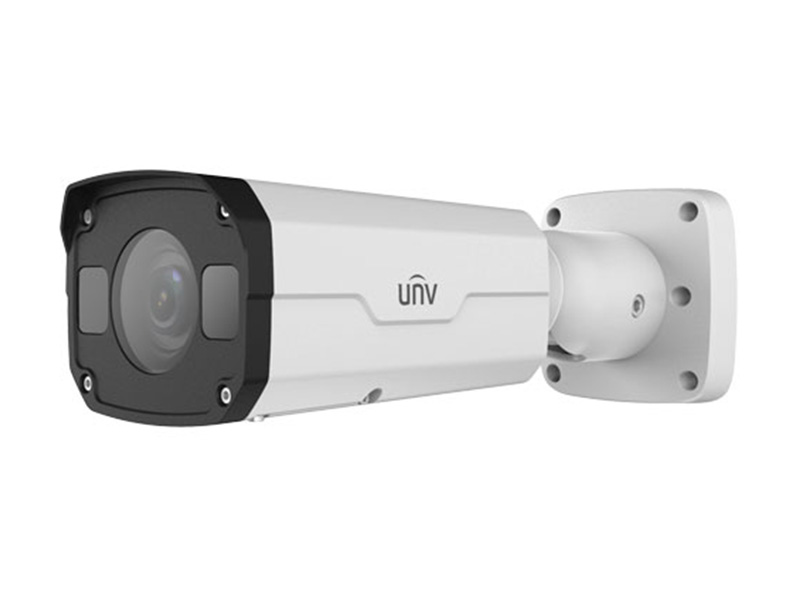

Uniview IPC2325LBR3 SP D IP Mini Bullet Kamera

Name: Uniview IPC2325LBR3 SP D IP Mini Bullet Kamera
Brand: Uniview

Optics

Compression

Network

Structure

	IPC2325LBR3-SP-D				IPC2325LBR3-SPZ28-D
Camera
Sensor	1/2.7", 5.0 megapixel,progressivescan, CMOS
Lens	2.8~12 mm, manual zoom lens				2.8~12mm,motorized zoom lens
DORI Distance	Lens	Detect(m)		Observe(m)		Recognize(m)	Identify(m)
	2.8mm	63		25.2		12.6	6.3
	12mm	270		17.4		23.2	27.1
Angle of View (H)	83.6°~31.5°
Angle of View (V)	58.4°~14.9°
Angle of View (O)	108.7~38.7°
Adjustment angle	Pan: °~360°		Tilt: °~90°			Rotate: 0°~360°
Shutter	Auto/Manual,1~1/100000 s
Minimum Illumination	Colour: 0.01 Lux(F1.8, AGC ON)
	0 Lux with IR on
Digital noise reduction	2D/3D DNR
Day/Night	IR-cut filter withauto switch (ICR)
S/N	>52dB
IR Range	Up to 30m (98 ft)IR range
WDR	DWDR
Video
Video Compression	Ultra 265,H.265, H.264, MJPEG
H.264 code profile	Baseline profile,Main Profile,High Profile
Frame Rate	Main Stream:5MP (2592*1944):Max. 15fps;
	Sub Stream: 720P (1280×720):Max. 30 fps;
	Third Stream:D1 (704×576):Max. 30fps
HLC	Supported
BLC	Supported
OSD	Up to 4 OSDs
Privacy Mask	Up to 8 areas
ROI	Up to 2 areas
Motion Detection	Up to 4 areas
Network
Protocols	IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP,RTP,RTSP,RTCP,DNS,DDNS,NTP,FTP,UPnP,HTTP,HTTPS,SMTP,SSL
Compatible Integration	ONVIF(Profile S, Profile G), API
Interface
Network	1 RJ45 100M Base-TX Ethernet
Edge Storage	MicroSD, up to 128GB
General
Power	12 V DC±25%, PoE (IEEE802.3 af)
	Power consumption: Max 7W
Dimensions (L × W × H)	253.4×86×71.7mm(9.98”×3.4”×2.8”)
Weight	1kg（2.2lb）
Working Environment	-30°C ~ +60°C (-22°F ~ 140°F),Humidity :10%~90% RH(noncondensing)
Ingress Protection	IP67
