Açıklama

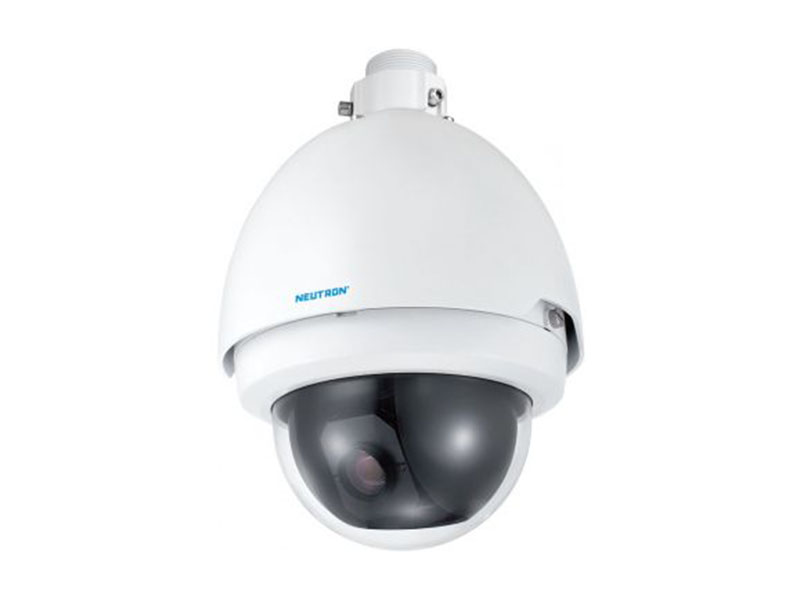

Neutron SD6580 HN IP HD Speed Dome Kamera

Özellikler

1/3” 1.3 Megapiksel SONY progresif tarama CCD
Güçlü 18x optik zoom ve 12x dijital zoom
H.264 & Çift akış video kodlama ve JPEG görüntü yakalama
12/15fps @ 1.3M(1280×960) & 25/30fps @ 720P çözünürlük
Gündüz/Gece(ICR),
Oto iris,
Otomatik odak,
AWB, BLC,
24 gizlilik maskeleme alanı
Internet Explorer web sunucusu,
NVR, CMS(PSS/DSS) & DMSS

Teknik Özellikler

Camera
Image Sensor	1/3” CCD
Effective Pixels	1280(H) x 960(V)
Scanning System	Progressive
Electronic ShutterSpeed	1/3(4)~1/10000s
Min. Illumination	Color: 0.1Lux/F1.6
	B/W: 0.01Lux/F1.6
S/N Ratio	More than 50dB
Video Output	BNC(1.0Vp-p/75Ω), PAL / NTSC
Camera Features
Day/Night	Auto(ICR) / Color / B/W
Backlight Compensation	BLC / HLC
White Balance	Auto, ATW, Indoor, Outdoor, Manual
Gain Control	Auto / Manual
Noise Reduction	2D / 3D
Privacy Masking	Up to 24 areas
Digital Zoom	16x
Lens
Focal Length	4.7mm~84.6mm(18x Optical zoom)
Max Aperture	F1.6~F2.7
Focus Control	Auto / Manual
Angle of View	H: 55.2°~3.2°
Close Focus Distance	100mm(wide) ~ 1500mm(Tele)
PTZ
Pan/Tilt Range	Pan: 0° ~ 360° endless; Tilt: -2° ~ 90°, auto flip 180°
Manual Control Speed	Pan: 0.1° ~ 300°/s; Tilt: 0.1° ~ 250°/s
Preset Speed	Pan: 400°/s; Tilt: 300°/s
Preset	80(DH-SD), 255(Pelco-P/D)
PTZ Mode	5 Pattern, 8 Tour, Auto Pan, Auto Scan
Speed Setup	Human-oriented focal length/ speed adaptation
Power up Action	Auto restore to previous PTZ and lens status after power failure
Idle Motion	Activate Preset/Pan/Scan/Tour/Pattern if there is no command in the specified period
Time Task	Auto activation of Preset/Pan/Scan/Tour/Pattern by preset-time
Protocol	DH-SD, Pelco-P/D (Auto recognition)
Video
Compression	H.264 / MJPEG
Resolution	1.3M(1280×960)/720P(1280×720)/D1(704×576/704×480)/CIF(352×288/352×240)
Frame Rate	Main Stream	1.3M(1~15fps),
		720P(1 ~ 25/30fps)
	Sub Stream	D1/CIF(1 ~ 25/30fps)
Bit Rate	H.264: 56K ~ 8192Kbps, MJPEG: 56K ~ 20480Kbps
Audio
Compression	G.711a / G.711u(32kbps) / PCM(128kbps)
Interface	1/1 channel In/Out
Network
Ethernet	RJ-45 (10/100Base-T)
Protocol	IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
ONVIF	ONVIF Profile S
Max. User Access	20 users
Smart Phone	iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot	Micro SD, Max 64GB
RS485	1
Alarm	7/2 channel In/Out
General
Power Supply	AC 24V/3A (±10%) /DC12V optional (Outdoor)
	AC 24V/2.2A (±10%) (Indoor in-ceiling)
Power Consumption	15W, 40W(Heater on)
Working Environment	-40ºC ~ 60ºC / Less than 90% RH
Ingress Protection	IP67 (Outdoor)
Vandal Resistance	IK10 (optional)
Dimensions	Φ222(mm) x 322(mm) (Outdoor)
	Φ211(mm) x 224.6(mm) (Indoor in-ceiling)
Weight	5.0kg
