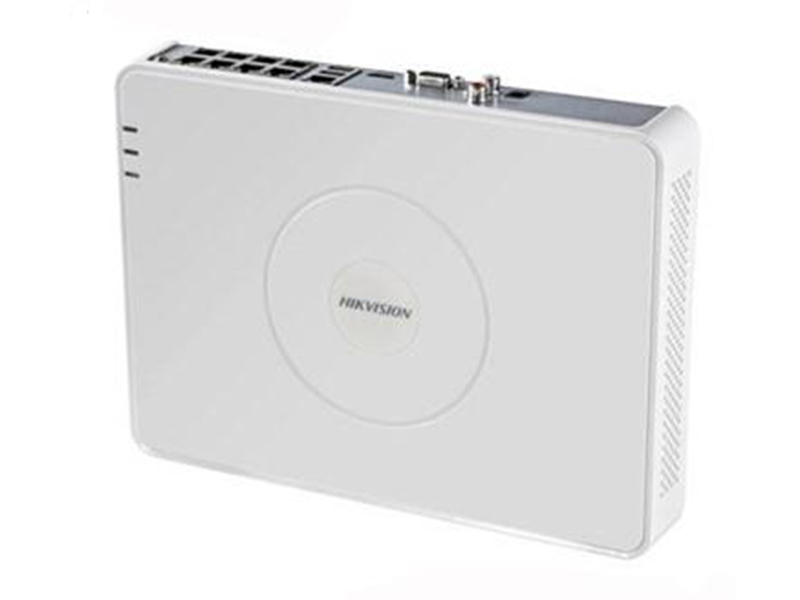

Haikon DS 7116HGHI E1 Turbo HD DVR Kayıt Cihazı
Özellikler
- H.264 & Dual-stream video compression
- Support both HD-TVI and analog cameras with adaptive access
- Full channel@720P resolution non real-time recording
- HDMI and VGA output at up to 1920×1080P resolution
- Long transmission distance over coax cable
- Support up to 16-ch synchronous playback at 720P resolution
Teknik Özellikler
| Video/Audio Input | |
| Audio Input: | 1-ch |
| Video Compression: | H.264 |
| Analog and HD-TVI video input: | 16-ch BNC interface (1.0Vp-p, 75 Ω) |
| Supported camera types: | 720p/25Hz, 720p/30Hz, CVBS |
| Audio Compression: | G.711u |
| Audio Input Interface: | RCA (2.0 Vp-p, 1 kΩ) |
| Two-way Audio: | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input) |
| Video/Audio Output | |
| HDMI/VGA Output: | 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz |
| Recording resolution: | 720p/WD1/4CIF/VGA/CIF |
| Frame Rate: | Main stream: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) |
| Sub-stream: | |
| 4CIF/2CIF@6fps; | |
| CIF/QVGA/QCIF@25fps (P)/30fps (N) | |
| Video Bit Rate: | 32 Kbps ~ 4 Mbps |
| Stream Type: | Video/Video&Audio |
| Audio Output: | 1-ch RCA(Linear, 1kΩ) |
| Audio Bit Rate: | 64kbps |
| Dual Stream: | Support |
| Playback Resolution: | 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF |
| Synchronous Playback: | 16-ch |
| Network management | |
| Remote connections: | 128 |
| Network protocols: | TCP/IP, PPPoE, DHCP, EZVIZ Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP™, HTTPS |
| Hard Disk Driver | |
| Interface Type: | 1 SATA Interface |
| Capacity: | Up to 6 TB capacity for each disk |
| External Interface | |
| Network Interface: | 1; 10M / 100M self-adaptive Ethernet interface |
| USB Interface: | 2 USB 2.0 Interfaces |
| General | |
| Power Supply: | 12V DC |
| Consumption: | ≤20W(without hard disks) |
| Working Temperature: | -10 ºC ~+55 ºC (14 ºF ~ 131 ºF) |
| Working Humidity: | 10% ~ 90% |
| Dimensions: | 285 × 210 × 45 mm (11.2 × 8.3 × 1.8 inch) |
| Weight: | ≤ 1.2 kg / 2.6 lb(without hard disks) |
Haikon DS 7116HGHI E1 Turbo HD DVR Kayıt Cihazı PDF Dosyası500.58 KB
