Açıklama

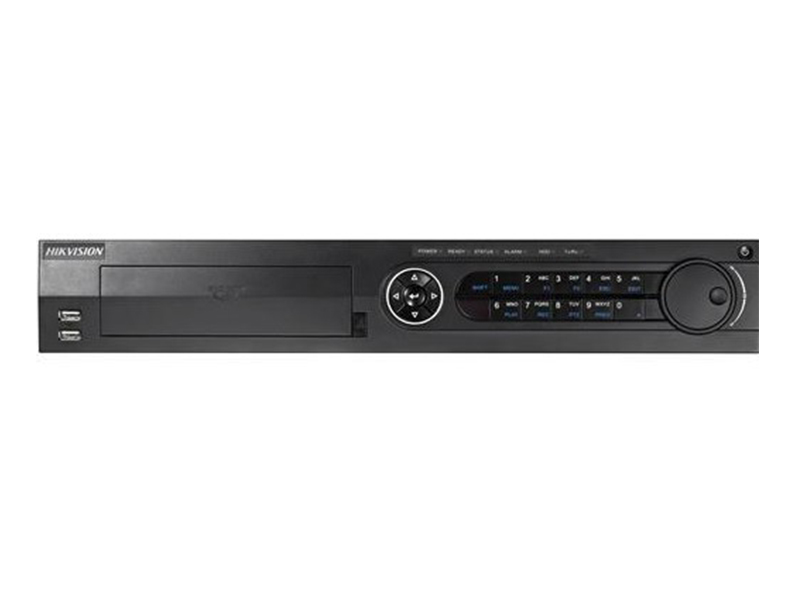

Haikon DS 7316HQHI K4 Turbo HD DVR Kayıt Cihazı

Özellikler

H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub stream of analog cameras
Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input
Support Cloud storage(One Drive, Google Drive or Drop Box)
Up to 3 MP resolution for recording
HDMI output at up to 4K (3840 × 2160) resolution
Long distance transmission over UTP and coaxial cable: max. 800m for 1080p and 1200m for 720p HDTVI signal
16-ch synchronous playback
Supports POS triggered recording and POS information overlay

Teknik Özellikler

Video/Audio Input
Audio Input:	4-ch
Video Compression:	H.265+/H.265/H.264+/H.264
Analog and HD-TVI video input:	16-ch,BNC interface (1.0Vp-p, 75 Ω)connection
Supported camera types:	Support HDTVI input: 3 MP, 1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz, 720P/50Hz, 720p/60Hz
	Note: The 3 MP signal input is only available for the first channel of DS-7304HQHI-K4, the first 2 channels of DS-7308HQHI-K4, and the first 4 channels of DS-7316HQHI-K4.
	Support AHD input: 1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz
	support CVBS input
Video Input Interface:	BNC (1.0 Vp-p, 75Ω)
Audio Compression:	G.711u
Audio Input Interface:	4-ch, RCA (2.0 Vp-p, 1 KΩ)
Two-way Audio:	1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input)
Video/Audio Output
CVBS Output:	1-ch,BNC(1.0Vp-p,75Ω),resolution:PAL:704x576,NTSC:704x480
Recording resolution:	When 1080p Lite mode not enabled: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF;
	When 1080p Lite mode enabled: 3 MP/1080p lite/720p/VGA/WD1/4CIF/CIF
Frame Rate:	Main stream:
	When 1080p Lite mode not enabled:
	For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@12fps
	For 1080p stream access: 1080p/720p@12fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
	For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
	When 1080p Lite mode enabled:
	3 MP/1080p lite/720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
Video Bit Rate:	32 Kbps-6 Mbps
Stream Type:	Video/Video&Audio
Two-way Audio:	1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input)
Audio Output:	1-ch RCA(Linear, 1kΩ)
Playback Resolution:	3 MP/1080p/720p/VGA/WD1/4CIF/CIF
Synchronous Playback:	16-ch
Network management
Remote connections:	128
Network protocols:	TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS,ONVIF
Hard Disk Driver
Interface Type:	4 SATA Interfaces
Capacity:	Up to 8 TB capacity for each disk
External Interface
Network Interface:	1; 10M / 100M / 1000M self-adaptive Ethernet interface
USB Interface:	2 USB 2.0 Interface on the front panel
