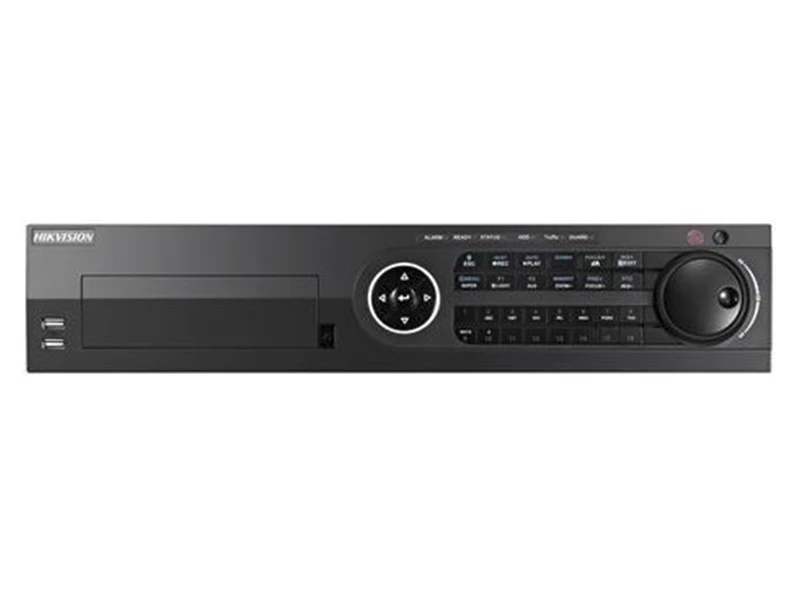

Haikon DS 9016HUHI F8 N Turbo HD DVR Kayıt Cihazı

Özellikler

H.264 ,H.264+& Dual-stream video compression
Support HD-TVI, IPC,AHD and analog cameras with adaptive access
Support Cloud storage(One Drive, Google Drive or Drop Box)
Simultaneous HDMI1 and VGA output at up to 1920 × 1080 resolution, and independent HDMI 2 output at up to 4K (3840 × 2160) resolution
Long transmission distance over coax cable
Up to 16-ch synchronous playback at 3MP resolution
playback at up to 256X speed.
Support POS functions.
Raid 1/0/5/10
Dual network ports

Teknik Özellikler

Video/Audio Input
Audio Input:	16-ch
Video Compression:	H.264,H.264+
Analog and HD-TVI video input:	16-ch,BNC interface (1.0Vp-p, 75 Ω)connection
Supported camera types:	Support HDTVI input: 3MP, 1080P/25Hz, 1080P/30Hz,720P/25Hz, 720P/30Hz, 720P/50Hz, 720P/60Hz,
	Support AHD input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz
	Support CVBS input
Video Input Interface:	BNC (1.0 Vp-p, 75Ω)
Audio Compression:	G.711u
Audio Input Interface:	16-ch RCA (2.0 Vp-p, 1 KΩ)
Two-way Audio:	1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input)
Video/Audio Output
HDMI 1/ VGA and HDMI2:	HDMI1 & VGA: 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60Hz, 1024 × 768/60 Hz
	HDMI2: 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz,
	1280 × 720/60Hz, 1024 × 768/60 Hz
CVBS Output:	1-ch,BNC(1.0Vp-p,75Ω),resolution:PAL:704x576,NTSC:704x480
Recording resolution:	3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame Rate:	Main stream:3 MP@15fps;1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
	Sub-stream:WD1/4CIF@12fps;CIF/QVGA/QCIF@25fps (P)/30fps (N)
Video Bit Rate:	32 Kbps-10 Mbps
Stream Type:	Video/Video&Audio
Two-way Audio:	1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input)
Audio Output:	2-ch, RCA (2.0 Vp-p, 1 kΩ)
Playback Resolution:	3 MP/1080p/720p/VGA/WD1/4CIF/CIF
Synchronous Playback:	16-ch
Network management
Remote connections:	128
Network protocols:	TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS,ONVIF
Hard Disk Driver
Interface Type:	8 SATA Interfaces
Capacity:	Up to 6 TB capacity for each disk
External Interface
Network Interface:	2; 10M / 100M / 1000M self-adaptive Ethernet interfaces
USB Interface:	2 USB 2.0 Interface on the front panel& 1 USB 3.0 Interface on the rear panel
Serial Interface:	1 RJ45 RS-232 interface；1 RS-485 interface; 2 RS-485 keyboard interface
Alarm Input:	16-ch
Alarm Output:	4-ch
General
Power Supply:	100 to 240 VAC
Consumption:	≤ 65W(without hard disks)
Working Temperature:	-10 ºC ~+55 ºC (14 ºF ~ 131 ºF)
Working Humidity:	10% ~ 90%
Dimensions:	445 × 470 × 90 mm (17.5 × 18.5 × 3.5 inch)
Weight:	≤ 8 kg (17.6lb)
