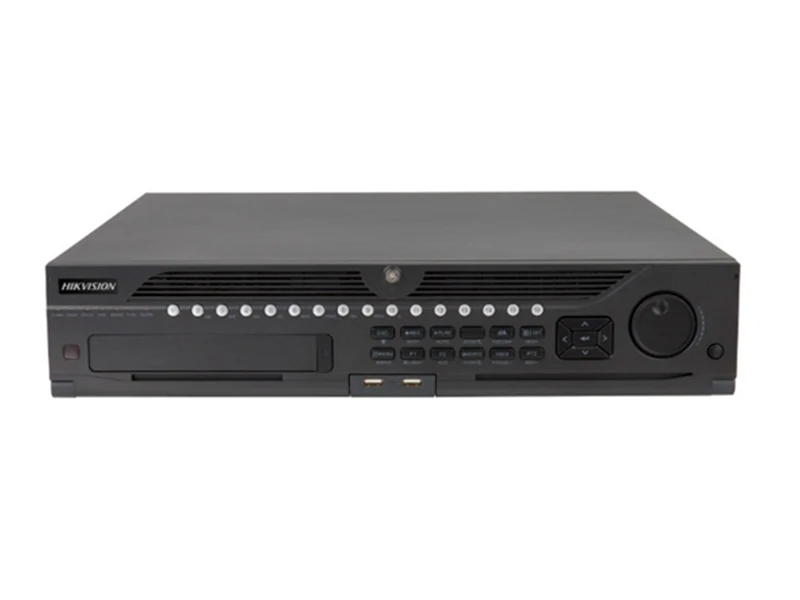

Hikvision iDS 9016HUHI K8/16S Turbo HD DVR Kayıt Cihazı
Özellikler
- Supports multiple VCA (video Content Analytics) events for both analog and smart IP cameras
- Supports all channels line crossing detection and intrusion detection, and 2-ch sudden scene change detection
- Supports people counting and heat map functions for 1-ch analog camera
- Supports PTZ control via Omnicasr VMS of Genetec protocol
Teknik Özellikler
| Video/Audio Input | |
| Audio Input | 16-ch |
| Video Compression | H.265+/H.265/H.264+/H.264 |
| Analog Video Input | 16-ch |
| PAL/NTSC Adaptive | Support |
| Analog and HD-TVI video input | 8 MP/15HZ, 8 MP/12.5HZ, 5 MP/20Hz, 5 MP/12Hz, 4 MP/30Hz, 4 MP/25Hz, 3 MP/18Hz, |
| 1080p/30Hz, 1080p/25Hz, 720p/60Hz, 720p/50Hz, 720p/30Hz, 720p/25Hz | |
| Supported camera types | AHD input 5 MP/20Hz, 4 MP/30Hz, 4 MP/25Hz, 1080p/30Hz, 1080p/25Hz, 720p/30Hz, 720p/25Hz |
| HDCVI input 4 MP/30Hz, 4 M/25Hz, 1080p/30Hz, 1080p/25Hz, 720p/30Hz, 720p/25Hz | |
| Video Input Interface | BNC (1.0 Vp-p, 75Ω) |
| Audio Compression | G.711u |
| Video/Audio Output | |
| HDMI 1/ VGA and HDMI2 | HDMI1/VGA output HDMI 1: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| VGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz | |
| HDMI2 output 1 1280 -ch, 4K × 720/60Hz (3840 × 2160)/30Hz , 1024 × 768/60Hz , 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, | |
| Encoding resolution | 5 MP/4 MP/3 M/1080p/720p/WD1/4CIF/VGA/CIF |
| Frame Rate | Main stream: |
| 8 MP (8 fps)/5 MP (12 fps)/4 MP (15 fps)/3 M (18 fps)/1080P/720P/WD1/4CIF/VGA/CIF | |
| Sub-stream: | |
| WD1/4CIF/CIF@25fps (P)/30fps (N) | |
| Video Bit Rate | 32 Kbps-10 Mbps |
| Stream Type | Video/Video&Audio |
| Two-way Audio | 1-ch, RCA (2.0 Vp-p, 1 kΩ) (independent) |
| Audio Output | 2-ch, RCA (Linear, 1 kΩ) |
| Audio Bit Rate | 64kbps |
| Dual Stream | Support |
| Synchronous Playback | 16-ch |
| Hard Disk Driver | |
| Interface Type | 8 SATA Interfaces |
| Capacity | Up to 8 TB capacity for each disk |
| e-SATA Interface | 1 eSATA high speed backup interface |
| External Interface | |
| Network Interface | 2; 10M / 100M / 1000M self-adaptive Ethernet interfaces |
| Serial Interface | 1RS-485 interface, 1 RS-232 interface, 1 RS-485 keyboard interface |
| Alarm Input | 16-ch |
| Alarm Output | 8-ch |
| General | |
| Power Supply | 110 to 220 VAC |
| Consumption | ≤ 150 W |
| Working Temperature | -10 °C to +55 °C (+14 °F to +131 °F) |
| Working Humidity | 10% to 90% |
| Dimensions | 442 × 470 × 92 mm (17.4 × 18.5 × 3.6 inch) |
| Weight | ≤ 8 kg (17.6 lb) |
Hikvision iDS 9016HUHI K8/16S Turbo HD DVR Kayıt Cihazı Pdf Dosyası629.07 KB
