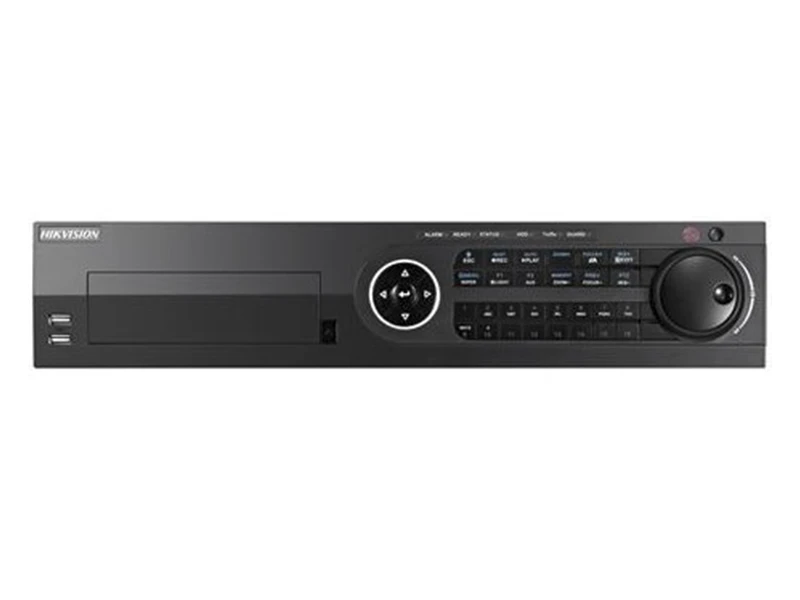

Hikvision DS 8132HGHI SH Turbo HD DVR Kayıt Cihazı
Özellikler
- H.264 & Dual-stream video compression
- Support HD-TVI/analog/IP camera triple hybrid
- Support both HD-TVI and analog cameras with adaptive access
- Full channel@1080P resolution real-time recording
- HDMI and VGA output at up to 1920×1080P resolution
- Long transmission distance over coax cable
- Support up to 24/32-ch synchronous playback at 1080P resolution
Teknik Özellikler
| Video/Audio Input | |
| Audio Input | 16-ch |
| Video Compression | H.264 |
| Analog and HD-TVI video input | 32-ch, BNC interface (1.0Vp-p, 75 Ω) |
| Supported camera types | 720P/25, 720P/30, 720P/50, 720P/60, 1080P/25, 1080P/30, CVBS |
| IP Video Input | 16-ch (up to 32-ch) Up to 2MP resolution |
| Video Input Interface | BNC (1.0 Vp-p, 75Ω) |
| Audio Compression | G.711u |
| Audio Input Interface | RCA (2.0 Vp-p, 1 kΩ) |
| Two-way Audio | 1-ch RCA(2.0Vp-p, 1kΩ) |
| Video/Audio Output | |
| HDMI 1/ VGA and HDMI2 | 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| Recording resolution | Main stream: 1080P (non-real-time) / 720P / WD1/ VGA / 4CIF / CIF |
| Sub-stream: WD1(12fps) / 4CIF(12fps) / CIF / QCIF / QVGA | |
| Frame Rate | Main stream: 1/16 fps ~ Real time frame rate |
| Sub-stream: 1/16 fps ~ Real time frame rate | |
| Video Bit Rate | 32 Kbps-6 Mbps |
| Stream Type | Video/Video&Audio |
| Audio Output | 1-ch RCA(Linear, 1kΩ) |
| Audio Bit Rate | 64kbps |
| Dual Stream | Support |
| Playback Resolution | 1080P / 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF |
| Synchronous Playback | 32-ch |
| Network management | |
| Remote connections | 128 |
| Network protocols | TCP/IP, PPPoE, DHCP, EZVIZ Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, |
| UPnP?, HTTPS | |
| Hard Disk Driver | |
| Interface Type | 8 SATA interfaces for 8 HDDs; 1 eSATA interface |
| Capacity | Up to 6 TB capacity for each disk |
| External Interface | |
| Network Interface | 2; 10M / 100M / 1000M self-adaptive Ethernet interfaces |
| USB Interface | 3 USB2.0 interfaces |
| Serial Interface | 1RS-485 interface, 1 RS-232 interface, 1 RS-485 keyboard interface |
| Alarm Input | 16-ch |
| Alarm Output | 8-ch |
| General | |
| Power Supply | 100 ~ 240VAC, 47 ~ 63HZ |
| Consumption | ≤ 67W |
| Working Temperature | -10 oC ~+55 oC (14 oF ~ 131 oF) |
| Working Humidity | 10% ~ 90% |
| Chassis | 19-inch rack-mounted 2U chassis |
| Dimensions | 445 × 470 × 90 mm (17.5 × 18.5 × 3.5 inch) |
| Weight | ≤8Kg (17.6 lb) |
Hikvision DS 8132HGHI SH Turbo HD DVR Kayıt Cihazı Pdf Dosyası613.09 KB
