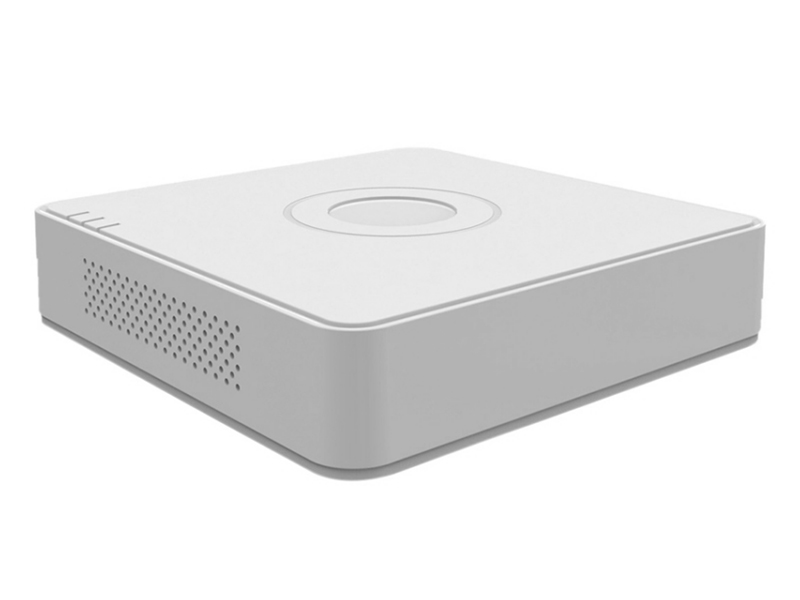

Haikon DS 7104HQHI SH Turbo HD DVR Kayıt Cihazı
Özellikler
- H.264 & Dual-stream video compression
- Support both HD-TVI and analog cameras with adaptive access
- Full channel@1080P resolution real-time recording
- HDMI and VGA output at up to 1920×1080P resolution
- Long transmission distance over coax cable
- Support up to 4-ch synchronous playback
Teknik Özellikler
| Video/Audio Input | |
| Audio Input: | 1-ch |
| Video Compression: | H.264 |
| Analog and HD-TVI video input: | 4-ch,BNC interface (1.0Vp-p, 75 Ω) |
| Supported Camera Types: | 720P25, 720P30, 720P50, 720P60, 1080P25, 1080P30, CVBS |
| Audio Compression: | G.711u |
| Audio Input Interface: | (2.0~2.4 Vp-p, 1 kΩ) |
| Two-way Audio: | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input) |
| Video/Audio Output | |
| HDMI/VGA Output: | 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz |
| Recording resolution: | Main stream: 720P / WD1 / 4CIF / VGA / CIF ;Sub-stream: 4CIF (non-real-time) / 2CIF (non-real-time) / CIF |
| Frame Rate: | Main stream: 1/16 fps ~ Real time frame rate ; Sub-stream: 1/16 fps ~ Real time frame rate |
| Video Bit Rate: | 32 Kbps-10 Mbps |
| Stream Type: | Video/Video&Audio |
| Two-way Audio: | 1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input) |
| Audio Output: | 1-ch RCA(Linear, 1kΩ) |
| Audio Bit Rate: | 64kbps |
| Dual Stream: | Support |
| Playback Resolution: | 1080P / 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF |
| Synchronous Playback: | 4-ch |
| Network Management | |
| Remote connections | 128 |
| Remote connections | TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP™, HTTPS |
| Hard Disk Driver | |
| Interface Type: | 1 eSATA interface |
| Capacity: | Up to 4 TB capacity for each disk |
| External Interface | |
| Network Interface: | 1; 10M / 100M self-adaptive Ethernet interface |
| USB Interface: | 2 USB2.0 interfaces |
| General | |
| Power Supply: | 12V DC |
| Consumption: | ≤15W(without hard disks) |
| Working Temperature: | -10 ºC ~+55 ºC (14 ºF ~ 131 ºF) |
| Working Humidity: | 10% ~ 90% |
| Dimensions: | 200 × 200 × 45mm (7.9 × 7.9 × 1.8 inch) |
| Weight: | ≤ 0.8 kg / 1.8lb(without hard disks) |
Haikon DS 7104HQHI SH Turbo HD DVR Kayıt Cihazı PDF Dosyası553.82 KB
