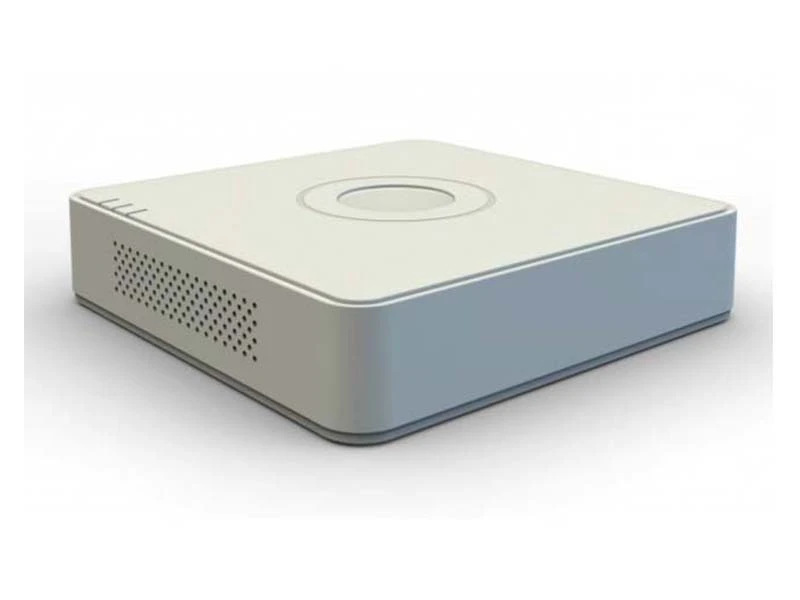

Hikvision DS 7104HQHI SH Turbo HD DVR Kayıt Cihazı
Özellikler
- Connectable to HD-TVI and analog cameras;
- Connectable to the Coaxitron camera with long transmission distance;
- Simultaneous HDMI and VGA outputs at up to 1920×1080P resolution.
- New GUI and support starting record with one key;
- Redundant recording and holiday recording;
- Instant playback for assigned camera during multi-channel live view mode;
- Support up to 4-ch synchronous playback at 1080P resolution; and reverse playback for multi-camera;
- Smart playback to go through less effective information;
- Manual video quality diagnostics;
- Customization of tags, searching and playing back by tags;
- Locking and unlocking record files;
- Support HDD quota management; different capacity can be assigned to different cameras under quota mode;
- Provide 1 SATA interface for recording;
- Support access by EZVIZ Cloud P2P;
- Up to 1 self-adaptive 10M/100M network interface.
- Support Hikvision DDNS (Dynamic Domain Name System);
- Network detection function.
Teknik Özellikler
| Video/Audio Input | |
| Video Sıkıştırma | H.264 |
| Analog ve HD-TVI video girişi | 4-ch BNC interface (1.0Vp-p, 75 Ω) |
| Desteklenen Kameralar | 720P/25, 720P/30, 720P50, 720P60, 1080P25, 1080P30, CVBS |
| Ses Sıkıştırma | G.711u |
| Ses Girişi Arayüzü | (2.0~2.4 Vp-p, 1 kΩ) |
| Çift Yön Ses | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input) |
| Video/Audio Output | |
| HDMI/VGA Çıkışı | 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz |
| Kayıt Çözünürlüğü | Main stream: 1080P (non-real-time) / 720P / WD1/ VGA / 4CIF / CIF;Sub-stream: WD1(non-real-time) / 4CIF(non-real-time) / CIF / QCIF / QVGA |
| Çerçeve Hızı | Main stream: 1/16 fps ~ Real time frame rate |
| Sub-stream: 1/16 fps ~ Real time frame rate | |
| Video Bit Hızı | 32 Kbps-10 Mbps |
| Akış Tipi | Video/Video&Audio |
| İki Yönlü ses | 1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input) |
| Ses Çıkışı | 1-ch RCA(2.0 Vp-p, 1kΩ) |
| Ses Bit Hızı | 64kbps |
| Çift Akış | Support |
| Oynatma Çözünürlüğü | 1080P / 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF |
| Senkronize yeniden oynatma | 4-ch |
| Ağ yönetim | |
| Uzak Bağlantı | 128 |
| Ağ Protokolleri | TCP/IP, PPPoE, DHCP, EZVIZ Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP™, HTTPS |
| Sabit Disk Sürücü | |
| Arayüzü Türü | 1 SATA Interface |
| Kapasite | Up to 4TB capacity for each disk |
| Harici Arayüzü | |
| Ağ Arayüzü | 1 RJ45 10M/100M adaptive Ethernet Interface |
| USB Arayüzü | 3 USB2.0 interfaces |
| Genel | |
| Güç Kaynağı | 12V DC |
| Tüketim | ≤ 15W(without hard disks) |
| Çalışma Sıcaklığı | -10 ºC ~+55 ºC (14 ºF ~ 131 ºF) |
| Çalışma Nem oranı | 10% ~ 90% |
| Boyutlar | 200 × 200 × 45mm (7.9 × 7.9 × 1.8 inch) |
| Ağırlık | ≤ 0.8 kg / 1.8lb(without hard disks) |
Hikvision DS 7104HQHI SH Turbo HD DVR Kayıt Cihazı Pdf Dosyası284.82 KB
