Açıklama

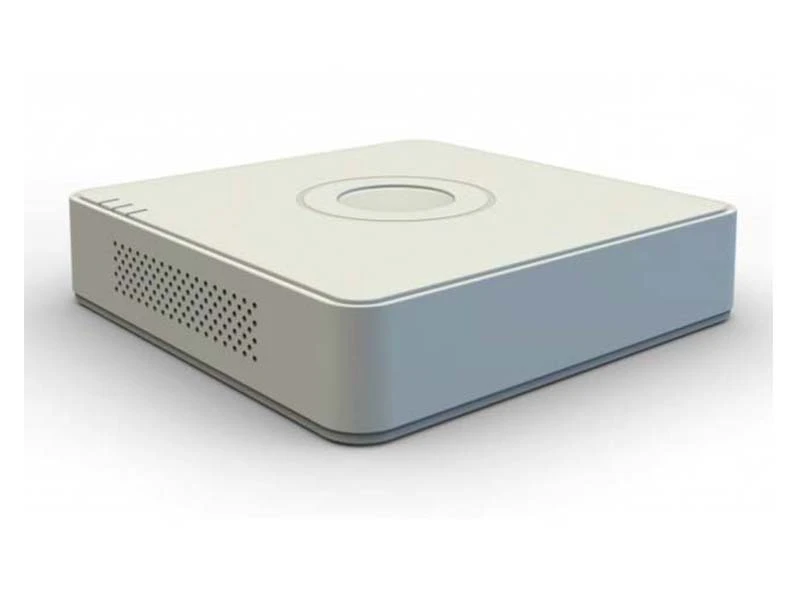

Hikvision DS 7A04HGHI F1 Turbo HD DVR Kayıt Cihazı
Özellikler
- H.264 /H.264+& Dual-stream video compression
- Support both HD-TVI /analog and AHD cameras with adaptive access
- Full channel recording at up to 1080P lite resolution
- HDMI and VGA output at up to 1920×1080P resolution
- Long transmission distance over coax cable
- Support 4/8/16-ch synchronous playback at 720P resolution
Teknik Özellikler
| Video/Audio Input | |
| Audio Input | 1-ch |
| Video Compression | H.264,H.264+ |
| Analog and HD-TVI video input | 4-ch BNC interface (1.0Vp-p, 75 Ω) |
| Supported camera types | Support HDTVI input 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz, |
| Support AHD input 720P/25Hz, 720P/30Hz, | |
| support CVBS input | |
| Video Input Interface | BNC (1.0 Vp-p, 75Ω) |
| Audio Compression | G.711u |
| Audio Input Interface | RCA (2.0 Vp-p, 1 kΩ) |
| Two-way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input) |
| Video/Audio Output | |
| HDMI/VGA Output | 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz |
| Recording resolution | When 1080p Lite mode not enabled 720p/WD1/4CIF/VGA/CIF; |
| When 1080p Lite mode enabled 1080p lite/720p/WD1/4CIF/VGA/CIF | |
| Frame Rate | Main stream |
| When 1080p Lite mode not enabled | |
| For 720p stream access 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) | |
| When 1080p Lite mode enabled | |
| 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) | |
| Video Bit Rate | 32 Kbps ~ 4 Mbps |
| Stream Type | Video/Video&Audio |
| Audio Output | 1-ch RCA(Linear, 1kΩ) |
| Audio Bit Rate | 64kbps |
| Dual Stream | Support |
| Playback Resolution | 1080p lite/720p/WD1/4CIF/VGA/CIF |
| Synchronous Playback | 4-ch |
| Network management | |
| Remote connections | 32 |
| Network protocols | TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP?, HTTPS |
| Hard Disk Driver | |
| Interface Type | 1 SATA Interface |
| Capacity | Up to 6 TB capacity for each disk |
| External Interface | |
| Network Interface | 1; 10M / 100M self-adaptive Ethernet interface |
| USB Interface | 2 USB 2.0 Interfaces |
| General | |
| Power Supply | 12V DC |
| Consumption | ≤ 8W |
| Working Temperature | -10 oC ~+55 oC (14 oF ~ 131 oF) |
| Working Humidity | 10% ~ 90% |
| Dimensions | 200 × 200 × 45mm (7.9 × 7.9 × 1.8 inch) |
| Weight | ≤ 0.8 kg / 1.8 lb(without hard disks) |
Hikvision DS 7A04HGHI F1 Turbo HD DVR Kayıt Cihazı Pdf Dosyası686.35 KB
