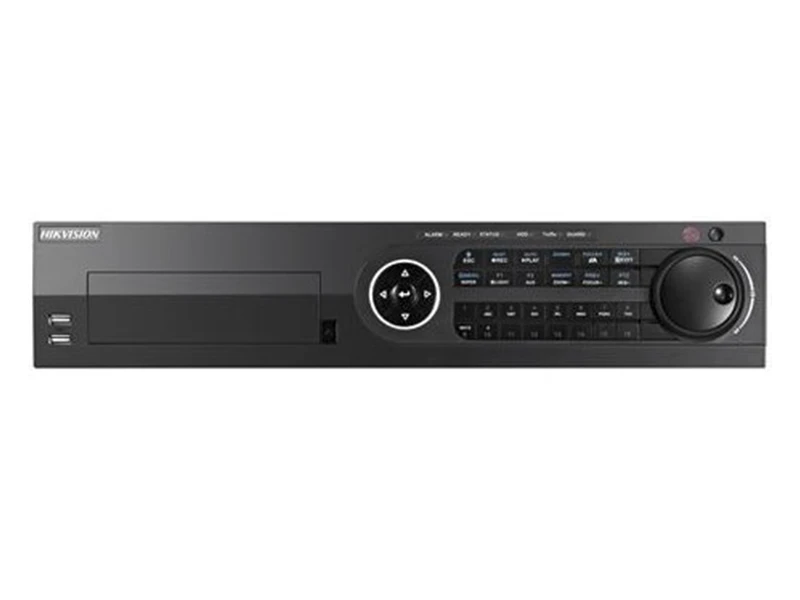

Hikvision DS 8108HUHI F8/N Turbo HD DVR Kayıt Cihazı
Özellikler
- H.264 ,H.264+& Dual-stream video compression
- Support HD-TVI, IPC,AHD and analog cameras with adaptive access
- Support Cloud storage(One Drive, Google Drive or Drop Box)
- Simultaneous HDMI1 and VGA output at up to 1920 × 1080 resolution, and independent HDMI 2 output at up to 4K (3840 × 2160) resolution
- Long transmission distance over coax cable
- Up to 4/8/16-ch synchronous playback at 3MP resolution
- playback at up to 256X speed.
- Support POS functions.
- Raid 1/0/5/10
- Dual network ports
Teknik Özellikler
| Video/Audio Input | |
| Audio Input | 8-ch |
| Video Compression | H.264,H.264+ |
| Analog and HD-TVI video input | 8-ch,BNC interface (1.0Vp-p, 75 Ω)connection |
| Supported camera types | Support HDTVI input: 3 MP, 1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz, 720P/50Hz, 720p/60Hz |
| Support AHD input: 1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz | |
| support CVBS input | |
| Video Input Interface | BNC (1.0 Vp-p, 75Ω) |
| Audio Compression | G.711u |
| Audio Input Interface | 4-ch, RCA (2.0 Vp-p, 1 KΩ) |
| Two-way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input) |
| Video/Audio Output | |
| HDMI 1/ VGA and HDMI2 | HDMI1 & VGA: 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60Hz, 1024 × 768/60 Hz |
| HDMI2: 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, | |
| 1280 × 720/60Hz, 1024 × 768/60 Hz | |
| CVBS Output | 1-ch,BNC(1.0Vp-p,75Ω),resolution:PAL:704x576,NTSC:704x480 |
| Recording resolution | 3 MP/1080p/720p/WD1/4CIF/VGA/CIF |
| Frame Rate | Main stream:3 MP@15fps;1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) |
| Sub-stream:WD1/4CIF@12fps;CIF/QVGA/QCIF@25fps (P)/30fps (N) | |
| Video Bit Rate | 32 Kbps-10 Mbps |
| Stream Type | Video/Video&Audio |
| Two-way Audio | 1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input) |
| Audio Output | 2-ch, RCA (Linear, 1 kΩ) |
| Audio Bit Rate | 64kbps |
| Dual Stream | Support |
| Playback Resolution | 3 MP/1080p/720p/VGA/WD1/4CIF/CIF |
| Synchronous Playback | 8-ch |
| Network management | |
| Remote connections | 128 |
| Network protocols | TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS,ONVIF |
| Hard Disk Driver | |
| Interface Type | 8 SATA Interfaces |
| Capacity | Up to 6 TB capacity for each disk |
| External Interface | |
| Network Interface | 2; 10M / 100M / 1000M self-adaptive Ethernet interfaces |
| USB Interface | 2 USB 2.0 Interface on the front panel& 1 USB 3.0 Interface on the rear panel |
| Serial Interface | 1 RJ45 RS-232 interface；1 RS-485 interface; 2 RS-485 keyboard interface |
| Alarm Input | 16-ch |
| Alarm Output | 4-ch |
| General | |
| Power Supply | 100 to 240 VAC |
| Consumption | ≤ 45W(without hard disks) |
| Working Temperature | -10 oC ~+55 oC (14 oF ~ 131 oF) |
| Working Humidity | 10% ~ 90% |
| Dimensions | 445 × 470 × 90 mm (17.5 × 18.5 × 3.5 inch) |
| Weight | ≤ 8 kg (17.6lb) |
Hikvision DS 8108HUHI F8/N Turbo HD DVR Kayıt Cihazı Pdf Dosyası735.5 KB
