Açıklama

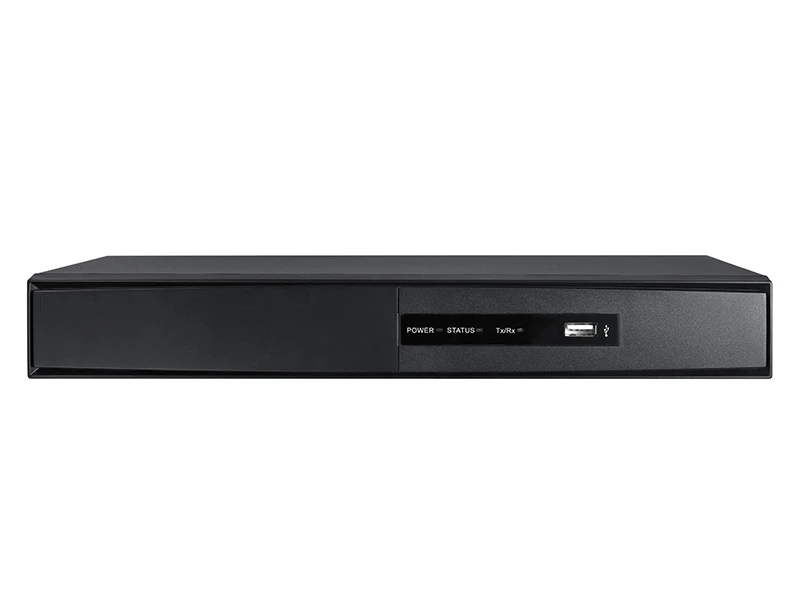

Hikvision DS 7216HGHI E2 Turbo HD DVR Kayıt Cihazı
Özellikler
- H.264 & Dual-stream video compression
- Support HD-TVI/analog/IP camera triple hybrid
- Support both HD-TVI and analog cameras with adaptive access
- Full channel@ 720P resolution non real-time recording
- HDMI and VGA output at up to 1920×1080P resolution
- Long transmission distance over coax cable
- Support up to 16-ch synchronous playback
Teknik Özellikler
| Video/Audio Input | |
| Audio Input | 1-ch |
| Video Compression | H.264 |
| Analog and HD-TVI video input | 16-ch BNC interface (1.0Vp-p, 75 Ω) |
| Supported camera types | 720P/25, 720P/30, CVBS |
| IP Video Input | 2-ch Up to 2MP resolution |
| Video Input Interface | BNC (1.0 Vp-p, 75Ω) |
| Audio Compression | G.711u |
| Audio Input Interface | RCA (2.0 Vp-p, 1 kΩ) |
| Two-way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input) |
| Video/Audio Output | |
| HDMI/VGA Output | 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz |
| Recording resolution | Main stream: 720P / WD1 / 4CIF / VGA / CIF ;Sub-stream: 4CIF (non-real-time) / 2CIF (non-real-time) / CIF |
| Frame Rate | 1/16 fps ~ Real time frame rate |
| Video Bit Rate | 32 Kbps ~ 4 Mbps |
| Stream Type | Video/Video&Audio |
| Two-way Audio | 1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input) |
| Audio Output | 1-ch RCA(2.0 Vp-p, 1kΩ) |
| Audio Bit Rate | 64kbps |
| Dual Stream | Support |
| Playback Resolution | 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF |
| Synchronous Playback | 16-ch |
| Network management | |
| Remote connections | 128 |
| Network protocols | TCP/IP, PPPoE, DHCP, EZVIZ Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP?, HTTPS |
| Hard Disk Driver | |
| Interface Type | 2 SATA Interfaces |
| Capacity | Up to 6 TB capacity for each disk |
| External Interface | |
| Network Interface | 1; 10M / 100M self-adaptive Ethernet interface |
| USB Interface | 2 USB 2.0 Interfaces |
| General | |
| Power Supply | 12V DC |
| Consumption | ≤ 20W(without hard disks) |
| Working Temperature | -10 oC ~+55 oC (14 oF ~ 131 oF) |
| Working Humidity | 10% ~ 90% |
| Chassis | 1U chassis |
| Dimensions | 380 × 290 × 48 mm (14.9 × 11.4 × 1.9 inch) |
| Weight | ≤ 2 kg (4.4 lb) (without hard disks) |
Hikvision DS 7216HGHI E2 Turbo HD DVR Kayıt Cihazı Pdf Dosyası520.13 KB
