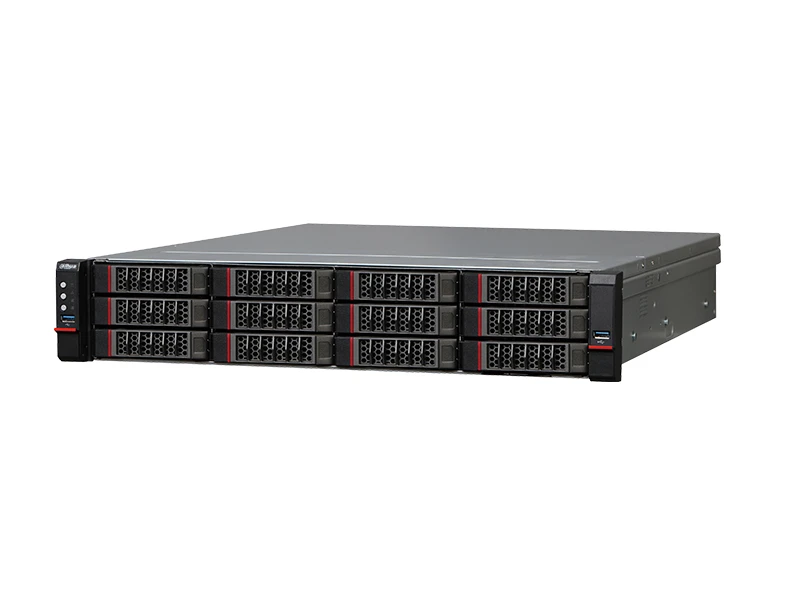

Dahua IVSS7012 2T NVR Kayıt Cihazı
Özellikler
- Intel dual-core processor
- Max 400Mbps incoming bandwidth
- 128 Channel IP video access
- Up to 8 Channel video stream face recognition
- Up to 20 Channel picture stream face recognition
- Regular/stranger mode
- Search by image
- Face database management
- Supports RAID 0/1/5/6/10
- 3HDMI/2VGA video output
- Optional redundant power
Teknik Özellikler
| System | |
| Main Processor | Intel Dual-core Processor |
| Memory | 8GB, up to 32GB |
| Operating System | Embedded LINUX |
| Artificial Intelligence | |
| Face Recognition | 8 channel video stream face recognition / 20 channel picture stream
face recognition (with FD camera) |
| Performance | 20 face pictures /sec processing (modeling and comparing) |
| Metadata | Sturctured data of gender, age, expression, glasses, moustache, mouth mask information. |
| Stranger Mode | Detect strangers' faces(not in device's face database).Similarity threshold can be set manually. |
| Trigger Events | Buzzer, snapshot, recording, etc. |
| Search by Image | Up to 10 target face images search at same time. Support
similarity threshold set for each target face image. |
| Database Management | Up to 20 face databases with 100,000 face images in total. Name,
gender, birthday, nationality, address, ID information can be added to each face picture. |
| Database Application | Each database can be applied to video channels independently. |
| Audio and Video | |
| IP Camera Input | 128 Channel |
| Two-way Talk | 1 audio input, 2 audio output, RCA |
| Display | |
| Interface | 3 HDMI, 2VGA |
| Resolution | HDMI1/2/3 : 3840 × 2160 , 1920 × 1080 , 1280 × 1024, |
| 1280 × 720 | |
| VGA1/2 : 1920 × 1080 , 1280 × 1024, | |
| 1280 × 720 | |
| Decoding Capability | 20-ch@1080P(30fps) |
| Multi-screen Display | Up to 36 split for each screen |
| OSD | Camera title, Time, Motion detection, Recording |
| Recording | |
| Bandwidth | 320Mbps |
| Compression | H.265/H.264/MJPEG/MPEG4 |
| Resolution | 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, etc. |
| Record Mode | Schedule (Continuous, Event) |
| Video Detection and Alarm | |
| Trigger Events | Recording, Snapshot, Buzzer, etc. |
| Video Detection | Motion Detection, MD Zones: 396 (22 × 18); Tampering |
| Alarm input | 16 Channel |
| Relay Output | 8 Channel |
| Playback and Backup | |
| Sync Playback | Up to 16ch sync playback, 64Mbps playback bandwidth |
| Search Mode | Time /Date, Video Detection, Face and Exact Search (accurate to second) |
| Backup Mode | USB Device/Network |
| Third-party Support | |
| Third-party Support | AXIS, Panasonic, Sony, etc. |
| Network | |
| Interface | 4 RJ-45 Ports (10/100/1000Mbps) |
| Network Port Mode | Independent Ethernet Ports, Load Balance, Fault-Tolerance, Link Aggregation |
| Network Function | |
| Interoperability | ONVIF 2.4, SDK |
| Storage | |
| Internal HDD | 12 SAS/SATA HDDs, Up to 10 TB capacity for each HDD, Independent HDD bracket, hot-swap |
| HDD Mode | Single, Raid 0/1/5/6/10(Enterprise-level HDDs are recommended), Support Global HDD Hot-spare |
| eSATA | 1 eSATA Port (Please contact technical engineer to confirm the compatible device) |
| SAS | 1 miniSAS Port |
| Auxiliary Interface | |
| USB | 4 USB 3.0 Ports |
| RS232 | 1 Port, for PC Communication |
| RS485 | 1 Port |
| Electrical | |
| Power Supply | AC100V ~ 240V, 50 ~ 60 Hz, Hot-swap, Single |
| (Optional Redundant Power Supply) | |
| Power Consumption | |
| Environmental | |
| Operating Conditions | °C ~ +45°C (+32°F ~ +113°F), 86 ~ 106kpa |
| Storage Conditions | -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH |
| Construction | |
| Dimensions | 2U, 447.6mm x 558.2mm x 87mm (17.62" x 21.98" x 3.43") (without ear) |
| Net Weight | 14kg (30.86 lb) (without HDD) |
| Installation | Standard 19-inch Rack-mounted |
| Certifications | |
| CE | EN55032, EN55024, EN50130-4, EN60950-1 |
| FCC | Part 15 Subpart B, ANSI C63.4-2014 |
