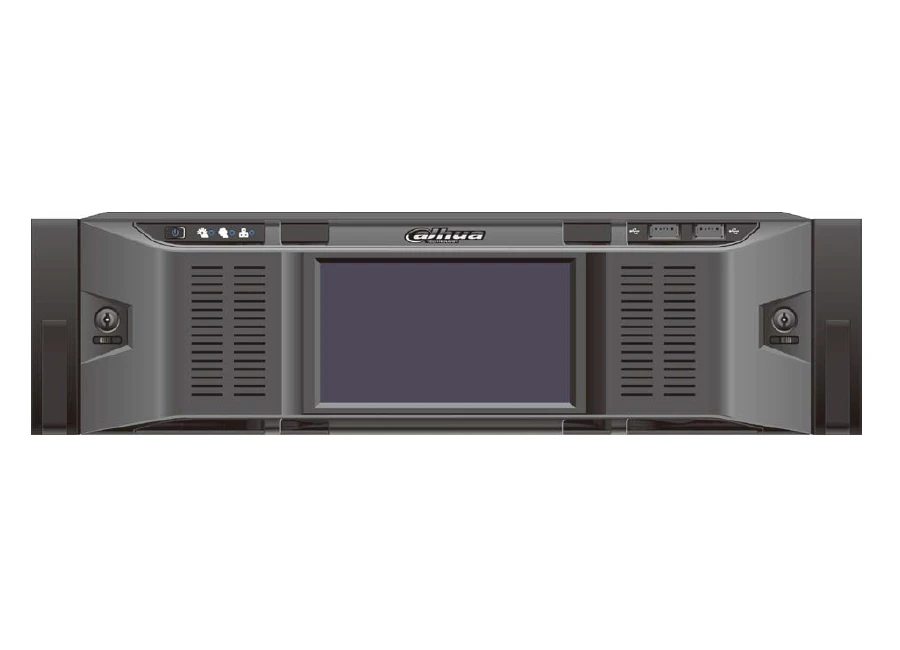

Dahua DSS 7016D NVR Kayıt Cihazı
Özellikler
- 15+1 SATA HDD 3U Akıllı Yönetim Merkezi (CMS + Donanım)
- 3U standart 19 inch Metal Kasa,
- Intel Core i5 İşlemci,Server Sınıfı Anaboard,
- 8GB DDR3 Hafıza, Yerel ve IPSAN Depolama,
- GIS Harita (Google vs.), ONVIF,
- GB/T28181 Standardı, IVS-B/PC Gibi Akıllı Cihaz Bağlantısı,
- SDK Platformu, Sistem Hizmet Durumu Görüntüleme,
- Maks. 2.000 Kanal (Maks. 500 Cihaz Girişi),
- 10.000 Hesap Yönetimi ve 1.000 Online Kullanıcı,
- 700M Transfer, 700M Yerel Depolama,
- 20 Dağıtıcı Server ve 5 Seviye Kademelendirme,
- E-MAP ile Bir Ekranda Maks. 200 Kanal Görüntüleme,
- Saniye Başına 1000 Kanal Alarm İşleyeme,
- 7"inch 1080p Full HD LCD Ekran, 1xVGA,
- 7/24 Kesintisiz Hizmet, 60 TB'a kadar 15 Sata HDD II Hot-Swap,
- Hot-Stanby, RAID 0/1/5/6/Single,
- 4xRJ45(1000M), 4xUSB2.0, 1xRS232,
- 1xeSATA, AC100~240V
Teknik Özellikler
| System | |
| Main Processor | Intel Core i5, 64 bits 4 Core Processor |
| Operating System | Embedded Linux |
| Memory | 8GB DDR3 |
| Motherboard | Embedded Board (support 7×24 operation) |
| Case | Hot-dipped galvanized sheet steel (1.2mm), High-precise |
| aluminum alloy slide, Patented pull-out rack design | |
| Power Supply | Single Power Supply |
| Interface | |
| Network Port | 4 RJ-45 Ports（10/100/1000Mbps ) |
| Ethernet Port | 4 Ethernet Ports Joint Working or 4 Independent |
| 1000Mbps Ethernet Ports | |
| RS232 | Reserved |
| USB | Front panel: 2× USB 2.0, Rear panel: 2 × USB 2.0 |
| HDMI | 2 HDMI ( one as network config, another as spare) |
| VGA | 1 VGA, as network config |
| Video Management | |
| Number of Connected Cameras Per Server | 500 IP devices and 2000 channels |
| Onvif Device | 100 |
| Auto-Register | 500 devices, 2000channels |
| Mobile DVR Devices | 200IP, 800 channels |
| Clients Per System | 200 Online Users |
| Numbers of Users | Unlimited |
| Numbers of Roles | 100 |
| Bandwidth of Video Input per Server | 700 Mbps |
| Bandwidth of Video Output per Server | 700 Mbps |
| Alarm Inputs | 80 /s ( Average ), 200/s (Peek) |
| Storage | |
| HDD Installation | Built-in 1×1T HDD disk (3.5") for system |
| Support 15HDD disks (3.5") for Video or Picture storage | |
| (Max support 4T HDD) | |
| Storage | Up to 200TB per server |
| HDD Mode | Single, Raid 0/1/5/6/10 |
| Bandwidth of Video | 700 Mbps |
| Front Cover | Support Hot-swap |
| 7-inch HD LCD (1920 × 1080 , 1280 × 1024, 1024 × 768) | |
| Power | 10W ~ 200W(with HDD) |
| Working Environment | ℃ ~ 50℃ |
| Temperature | |
| Working Environment Humidity | 5% ~ 90% (non-condensation) |
| Storage Environment Temperature | -20℃ ~ ﹢70℃ |
| Storage Environment Humidity | 5% ~ 90% (non-condensation) |
| Working Altitude | -60m ~ 3000m |
| Weight | 20 Kg |
| Dimension | 3U, 526mm×485mm×135mm |
Dahua DSS 7016D NVR Kayıt Cihazı Pdf Dosyası335.87 KB
