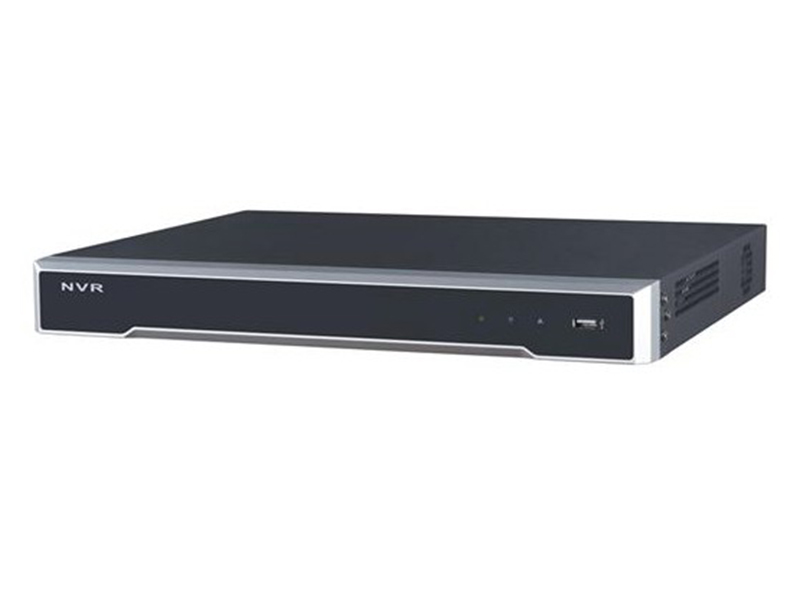

Hikvision DS 7616NI I2/16P NVR Kayıt Cihazı
Özellikler
- Third-party network cameras supported
- Up to 12 Megapixels resolution recording
- Support 1-ch HDMI, 1-ch VGA, HMDI at up to 4K(3840x2160) resolution
- 8/16-ch network cameras can be connected with 80M/160M incoming bandwidth
- Up to 2 SATA interfaces
- Plug & Play with up to 16 independent PoE network interfaces
- Support dual-os to ensure high reliablility of system running
- Support various VCA detection alarm and VCA search
- Support H.265/H.264/MPEG4 video formats
Teknik Özellikler
| Video / Ses Girişi | |
| İki Yönlü ses girişi | 1-ch, RCA (2.0 Vp-p, 1kΩ) |
| IP Video girişi | 16-ch |
| Network | |
| Incoming bandwidth | 160Mbps |
| Outgoing bandwidth | 256Mbps |
| Uzak Bağlantı | 128 |
| Video/Audio Output | |
| HDMI Output | 1-ch, resolution: 4K(3840*2160)/60Hz, 4K(3840*2160)/30Hz, 1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz |
| Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Ses Çıkışı | 1-ch, RCA (Linear, 1kΩ) |
| Senkronize Yeniden Oynatma | 16-ch |
| VGA Çıkışı | 1-ch, resolution: 1920*1080P/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz |
| Decoding | |
| Live view / Playback | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Capability | 4-ch@8MP,16-ch@1080P |
| Hard Disk | |
| SATA | 2 SATA interfaces for 2 HDDs |
| Kabiliyeti | Up to 6TB capacity for each HDD |
| Harici Arayüzü | |
| Ağ Arayüzü | 1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface |
| Seri bağlantı Arayüzü | RS-232 |
| USB Arayüzü | Front panel: 1 × USB 2.0 |
| Rear panel: 1 × USB 3.0 | |
| Alarm iç | 4-ch |
| Alarm dış | 1-ch |
| POE | |
| Desteklenen Standartlar | AF and AT |
| Max. Power | 200W |
| Arayüzü | 16 independent 10/100 Mbps PoE Ethernet interfaces |
| General | |
| Güç Kaynağı | 100 to 240 VAC, 50 to 60 Hz |
| Tüketim (hard disk ve POE olmadan) | ≤15 W |
| Çalışma Sıcaklığı | -10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF) |
| Çalışma Nem oranı | 10 % ~ 90 % |
| Kasa | 380 chassis |
| Boyutlar | 380 × 290 ×45 mm (15.0"× 11.4" × 1.8") |
| Ağırlık (HDD hariç) | ≤ 3 Kg (6.6 lb) |
Hikvision DS 7616NI I2/16P NVR Kayıt Cihazı Pdf Dosyası547.26 KB
