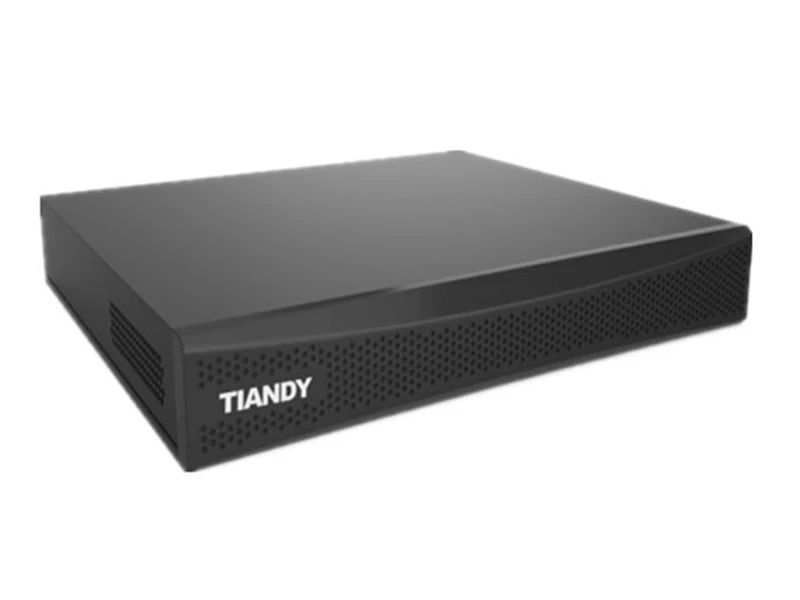

Tiandy TC NR1016M7 S2 Nvr Kayıt Cihazı
Özellikler
- 16-ch 6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF IP Camera Input
- 4-ch 1080P/8-ch 720P/16-ch 4CIF Realtime Display
- 16-ch Sub-stream 4CIF Realtime Display
- 4-ch 1080P/8ch 720P/16ch 4CIF Sync Playback
- Support 1080P Resolution Recording
- Bandwidth in/out 128Mbps/64Mbps
- HDMI, VGA Output Up to 1920X1080 Resolution
- Support 16-ch Intelligent Analysis Process
- Smart Search&Recording, Plug&Play
- 2 SATA(Up to 16TB), Alarm I/O 1/0, Audio I/O 1/1, 2xUSB, 1xRJ45(1000M)
- CE, FCC
Teknik Özellikler
| Specification | |
| Video/Audio Input | |
| IP Video Input | 16-ch |
| Audio Input | 1-ch |
| Network | |
| Incoming Bandwidth | 128Mbps |
| Outgoing Bandwidth | 64Mbps |
| Remote Connection | 32 Users, Up to 48ch Videos |
| Browser | IE8,IE9,IE10,IE11,Firefox24 |
| Mobile Software | P2P&DDNS for IOS&Android (Tiandy: Easylive, Neutral: Mobilelive) |
| Internet Protocol | TCP/UDP/HTTP/MULTICAST/UPNP/DHCP/PPPoE/DDNS/NFS/FTP/NTP/HTTPS/RTSP/SMTP/HTTPS/SADP |
| Activated by Alarm | |
| ANR | Y, Auto download video from camera SD card, Which was stored when disconnnection (Only Support Tiandy ANR IP Camera) |
| Advanced | Remaining Bandwidth Display |
| Video/Audio Output | |
| CVBS Output | N/A |
| HDMI Output | 1-ch Resolution: 1920×1080，1280×720，800×600,1024×768,1366×768,1440×900,1280×800 |
| VGA Output | 1ch Resolution: 1920×1080，1280×720，800×600,1024×768，1366×768,1440×900,1280×800 |
| Adjustable Output Mode, Self-adaptive Resolution | |
| Frame Rate | Mainstream: 25fps(P)/30fps(N) |
| Substream: 25fps(P)/30fps(N) | |
| I-Frame Record | Y |
| Recording Resolution | |
| Audio Output | 1xRCA |
| Synchronous Playback | 4-ch 1080P/8-ch 720P/16-ch 4CIF |
| Decoding | |
| Live View/Playback | 6MP(2752*2208,3008*2008,2408*2008)/5MP(2448*2048,2560*1920,2592*1944,2592*1920,2528*2128/
4MP(2560*1440,2592*1520)/3MP(2048*1536)/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Capability | 1-ch 6MP/5MP/4MP/4-ch 3MP/1080P/8-ch 720P/16-ch 4CIF |
| Display Split | 1/4/6/8/9/16 |
| E-Zoom | Y |
| Hard Disk | |
| SATA | 2 SATA for 2 HDDs |
| Capacity | Up to 8TB Capacity for Each HDD |
| NTFS Files System | Y |
| HDD Management | Group and Quota |
| External Interface | |
| Network Interface | 1 RJ-45 100/1000Mbps Self-adaptive Ethernet Interfaces |
| Serial Interface | N/A |
| USB Interface | 2 x USB2.0 |
| Alarm In | 1 |
| Alarm Out | N/A |
| Advance | |
| NAS | NFS Protocol, Support Manual Backup Only |
| Plug and Play | Y, Only for Tiandy Cameras |
| Corridor Mode | Y, 16:9 to 9:16, Only for Tiandy Cameras |
| Video Analytics(VCA) | Support 16-ch Camera VCA Function,Including Tripwire/Double Tripwire/Perimeter/
Object Abandon/Object Lost/Running/Loitering/Parking/Early Warning/Crowd/
Face Detection/People Counting/Audio Abnormal Detection/Video Abnormal Detection/
On duty Detection |
| Smart Search | Quickly Search Target VCA Videos , Only for Tiandy Cameras |
| Trigger Recording | Manual/Timing/Motion Detection/Port Alarm/ VCA Alarm/Video Occlusion |
| Smart Recording | Set Recording Bit Rate for Different Time |
| Alarm Recording | Pre Alarm Default 10s ( 5/10/15/60s Optional) , Post Alarm Default 10s (10/15/30/60/600s Optional ). |
| Records Format | SDV, Export MP4 in H.264 Format |
| Onvif | Onvif(Profile S) |
| General | |
| Languge | English, Spanish, Korean, Italian,Turkish,Thai, Russian, Traditional Chinese, Simplified Chinese,French, Polish |
| Power Supply | DC12V/3A |
| Consumption(without HDD) | ≤10W |
| Working Temperature | -10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF) |
| Working Humidity | 10 % ~ 90 % |
| Chassis | 1U |
| Dimensions | 43.6mm×341mm×274mm |
| Weight | 1.6KG (without HDD), 2.8KG (with Packing Box) |
