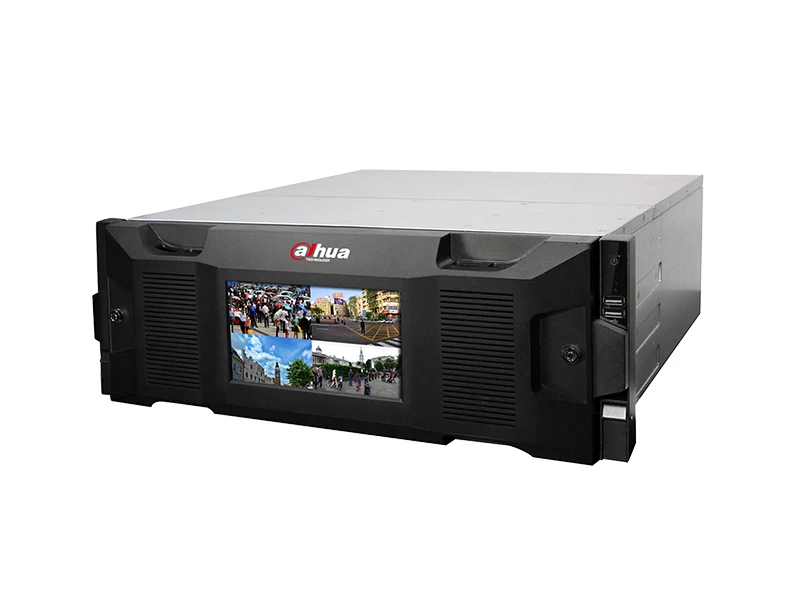

Dahua IVSS7024DR 8T NVR Kayıt Cihazı
Özellikler
- Intel quad-core processor
- Max 512Mbps incoming bandwidth
- 256 Channel IP video access
- Up to 32 Channel video stream face recognition
- Up to 80 Channel picture stream face recognition
- Regular/stranger mode
- Search by image
- Face database management
- Supports RAID 0/1/5/6/10
- SAS3.0 for storage extension
- 3HDMI/1VGA video output
- Redundant power
Teknik Özellikler
| System | |
| Main Processor | Intel Quad-core Processor |
| Memory | 16GB, up to 64GB |
| Operating System | Embedded LINUX |
| Artificial Intelligence | |
| Face Recognition |
32 channel video stream face recognition / 80 channel
picture stream face recognition (with FD camera)
|
| Performance | 80 face pictrues /sec processing (modeling and comparing) |
| Metadata |
Sturctured data of gender, age, expression, glasses,
moustache, mouth mask information.
|
| Stranger Mode | Detect strangers' faces(not in device's face database).Similarity threshold can be set manually. |
| Trigger Events | Buzzer, snapshot, recording, etc. |
| Search by Image |
Up to 10 target face images search at same time.
Support similarity threshold set for each target face image.
|
| Database Management |
Up to 20 face databases with 100,000 face images in total.
Name, gender, birthday, nationality, address, ID information can be added to each face picture.
|
| Database Application | Each database can be applied to video channels independently. |
| Audio and Video | |
| IP Camera Input | 256 Channel |
| Two-way Talk | 1 × 3.5mm audio input, 1 × 3.5mm audio output |
| Display | |
| Interface | 3 HDMI, 1VGA |
| Resolution | HDMI1/2/3 : 3840 × 2160 , 1920 × 1080 , 1280 × 1024, |
| 1280 × 720 | |
| VGA : 1920 × 1080 , 1280 × 1024, | |
| 1280 × 720 | |
| Decoding Capability | 24-ch@1080P(30fps) |
| Multi-screen Display | Up to 36 split for each screen |
| OSD | Camera title, Time, Motion detection, Recording |
| Recording | |
| Bandwidth | 450Mbps |
| Compression | H.265/H.264/MJPEG/MPEG4 |
| Resolution | 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, etc. |
| Record Mode | Schedule (Continuous, Event) |
| Video Detection and Alarm | |
| Trigger Events | Recording, Snapshot, Buzzer, etc. |
| Video Detection | Motion Detection, MD Zones: 396 (22 × 18); Tampering |
| Alarm input | 16 Channel |
| Relay Output | 8 Channel |
| Playback and Backup | |
| Sync Playback | Up to 16ch sync playback, 128Mbps playback bandwidth |
| Search Mode | Time /Date, Video Detection, Face and Exact Search (accurate to second) |
| Backup Mode | USB Device/Network |
| Third-party Support | |
| Third-party Support | AXIS, Panasonic, Sony, etc. |
| Network | |
| Interface | 4 RJ-45 Ports (10/100/1000Mbps) |
| Optional Interface | 4 Giga Optical Fiber Interface |
| Network Port Mode | Independent Ethernet Ports, Load Balance, Fault-Tolerance, Link Aggregation |
| Network Function | |
| Interoperability | ONVIF 2.4, SDK |
| Storage | |
| Internal HDD |
24 SAS/SATA HDDs, Up to 10 TB capacity for each
HDD, Independent HDD bracket, hot-swap
|
| HDD Mode |
Single, Raid 0/1/5/6/10(Enterprise-level HDDs are recommended),
Support Global HDD Hot-spare
|
| eSATA | 1 eSATA Port (Please contact technical engineer to confirm the compatible device) |
| SAS | 2 SAS3.0 Ports |
| Auxiliary Interface | |
| Front Cover | Support Hot-swap, 7-inch HD LCD (1920 × 1080 , 1280 × 1024) |
| USB | 4 USB Ports (2 USB 2.0 , 2 USB 3.0 ) |
| RS232 | 1 Port, for PC Communication |
| RS485 | 1 Port |
| Electrical | |
| Power Supply | AC100V ~ 240V, 50 ~ 60 Hz, Hot-swap, Redundant |
| Power Consumption | |
| Fan | Dual-ball bearing fans, Hot-swap |
| Environmental | |
| Operating Conditions | °C ~ +45°C (+32°F ~ +113°F), 86 ~ 106kpa |
| Storage Conditions | -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH |
| Construction | |
| Dimensions | 4U, 482.6mm x 543.4mm x 175mm (19" x 21.39" x 6.89") |
| Net Weight | 20kg (44.09 lb) (without HDD) |
| Installation | Standard 19-inch Rack-mounted |
| Certifications | |
| CE | EN55032, EN55024, EN50130-4, EN60950-1 |
| FCC | Part 15 Subpart B, ANSI C63.4-2014 |
| UL | UL 60950-1 |
