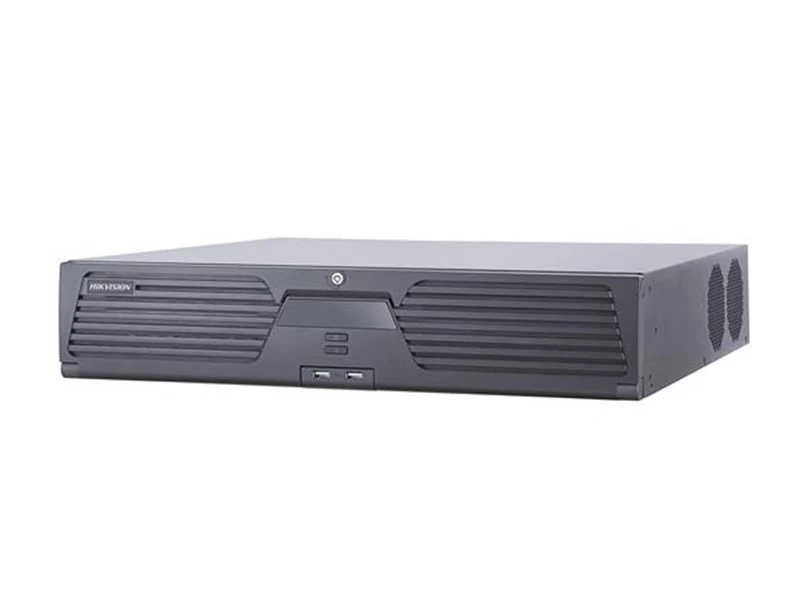

Hikvision iDS 9632NXI I8/4F NVR Kayıt Cihazı
Özellikler
- Powerful face pictures library management
- Face pictures comparison and alarm linkage actions
- Search by picture supported
- More precise face recognition and analytics based on deep learning algorithm
- Up to 16-ch decoding at 1080p resolution
- HDMI output at up to 4K resolution
- Supports H.265+ decoding format
- HDD hot swapping with RAID 0/1/5/6/10
Teknik Özellikler
| Video/Audio Input | |
| Two-way audio input | 1-ch, RCA (2.0 Vp-p, 1kΩ) |
| IP video input | 32-ch |
| Network | |
| Incoming bandwidth | 256Mbps |
| Outgoing bandwidth | 200Mbps |
| Video/Audio Output | |
| HDMI/VGA output | 2-ch, resolution: |
| HMDI1:4K (3840 × 2160)/60Hz, | |
| 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz | |
| VGA1: 2K (2560 × 1440)/60Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz | |
| HDMI2/VGA2:1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz | |
| CVBS Output | 1-ch, BNC(1.0Vp-p, 75Ω) |
| Resolution: 704×576(PAL); 704×480(NTSC) | |
| Synchronous Playback | 16-ch |
| Decoding | |
| Capability | 16-ch @ 1080p |
| Live view / Playback | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Hard Disk | |
| eSATA | 1 eSATA interface |
| SATA | 8 SATA interfaces for 8 HDDs |
| Capacity | Up to 6TB capacity for each HDD |
| Disk array | |
| Array type | RAID0, RAID1, RAID5, RAID6, RAID10 |
| External Interface | |
| Network Interface | 2 RJ-45 10/100/1000Mbps self-adaptive Ethernet interfaces |
| Serial Interface | RS-232, RS-485, Keyboard |
| USB Interface | Front panel: 2 × USB 2.0 |
| Rear panel: 1 × USB 3.0 | |
| Alarm In | 16-ch |
| Alarm Out | 4-ch |
| POE | |
| Max. Power | 200W |
| General | |
| Power Supply | 220 VAC |
| Consumption(without hard disk and POE) | ≤ 70 W |
| Working Temperature | -10 oC ~ +55 oC (+14 oF~ + 131 oF) |
| Working Humidity | 10 % ~ 90 % |
| Chassis | 19-inch rack-mounted 2U chassis |
| Dimensions | 445 × 470 ×90 mm (17.5"× 18.5" × 3.5") |
| Weight(without HDD) | ≤ 10 kg (22 lb) |
Hikvision iDS 9632NXI I8/4F NVR Kayıt Cihazı Pdf Dosyası591.47 KB
