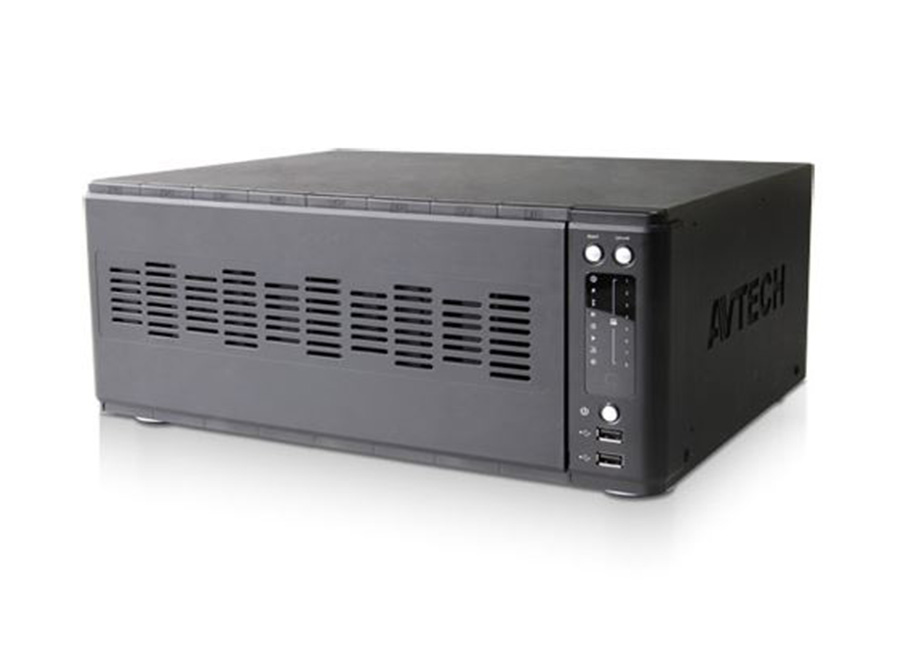

| Model | DGH8536 |
| Hardware |
| Video Input | One LAN port (up to 36 IP cameras) |
| Video Output | HDMI x 2 / VGA x 1 / Composite x 1 |
| Video Output Resolution | HDMI-1: Up to 3840 x 2160 (4K2K) |
| HDMI-2 & VGA: Up to 1920 x 1080 (Full HD) |
| Audio Output | YES (Line out / HDMI) |
| Audio Input | YES (Mic in) |
| Alarm I/O | Alarm out only |
| HDD Storage | Eight 10TB hard disks |
| USB Ports | USB 3.0 x 1 / USB 2.0 x 2 |
| Ethernet LAN port | 1000Mbps |
| Ethernet Internet port | 1000Mbps |
| Software |
| Video Compression Format | H.265 |
| Audio Compression Format | G711 |
| Local/ Remote Display Mode | 36CH |
| Local/ Remote Playback Mode | 36CH |
| Local Single Channel Playback | Yes |
| Record Stream | Dual |
| Recording Mode | Manual / Event / Alarm / Schedule |
| Recording Throughput | Up to 540 IPS @ 8MP, 300Mbps |
| Up to 1080 IPS @ 5MP, 300Mbps |
| Pre-alarm Recording | Yes |
| Quick Search | Time / Event |
| Event Notification | Push Status / Video Mail / Message Mail |
| Security | Multiple user access levels with password |
| Max. Online User | 20 |
| Spot Monitor Setup | Call Monitor / Event Monitor / Live Monitor (HDMI-2, VGA & Composite) |
| General |
| Alarm Scenario Setup | YES |
| Alarm Pop-up & Preview | YES |
| Power Source (±10%) | DC19V / 3.42A |
