Açıklama

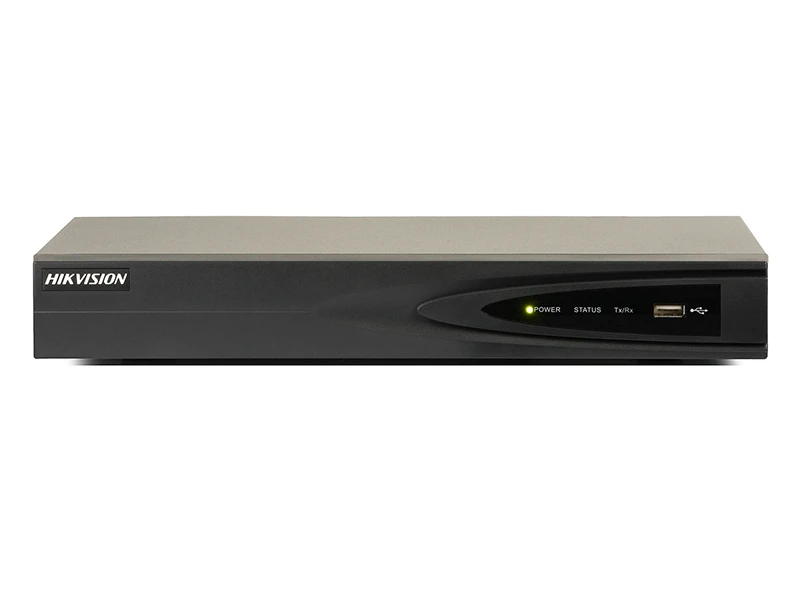

Haikon DS 7R04NI K1 4P NVR Kayıt Cihazı
Özellikler
- Third-party network cameras supported
- Up to 8 Megapixels resolution recording
- Support 1-ch HDMI, 1-ch VGA, HMDI at up to 4K(3840x2160) resolution
- 4-ch network cameras can be connected with 40M/60M/80M incoming bandwidth
- Support dual-os to ensure high reliablility of system running
- Plug & Play with up to 4 independent PoE network interfaces
- Support various VCA detection alarm and VCA search
- Support H.265/H.264/MPEG4 video formats
Teknik Özellikler
| Video/Audio Input | |
| IP video input: | 4-ch |
| Two-way audio input: | 1-ch, RCA (2.0 Vp-p, 1kΩ) |
| Network | |
| Incoming bandwidth: | 40Mbps |
| Outgoing bandwidth: | 80Mbps |
| Video/Audio Output | |
| Recording Resolution: | 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Audio Output: | 1-ch, RCA (Linear, 1kΩ) |
| VGA Output: | 1-ch, resolution: 1920*1080P/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz |
| Decoding | |
| Live view / Playback: | 8MP/6MP/5MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Capability: | 4-ch@1080P |
| Hard Disk | |
| SATA: | 1 SATA interface for 1 HDD |
| Capacity: | Up to 6TB capacity for each HDD |
| External Interface | |
| Network Interface: | 1 RJ-45 10 / 100 Mbps selfadaptive |
| Ethernet interface | |
| USB Interface: | 2, USB2.0 |
| POE | |
| Interface: | 4 independent 10 /100 Mbps PoE |
| Ethernet interfaces | |
| General | |
| Power Supply: | 48 VDC |
| Consumption(without hard disk and POE): | ≤ 10 W |
| Working Temperature: | ºC ~ +40 ºC (+32 ºF ~ +104 ºF) |
| Working Humidity: | 10 % ~ 90 % |
| Chassis: | 315 mm chassis |
| Dimensions: | 315 × 240 × 48 mm (12.4" × 9.4" × 1.9") |
| Weight(without HDD): | ≤ 1 kg (2.2 lb) |
Haikon DS 7R04NI K1 4P NVR Kayıt Cihazı PDF Dosyası670.81 KB
