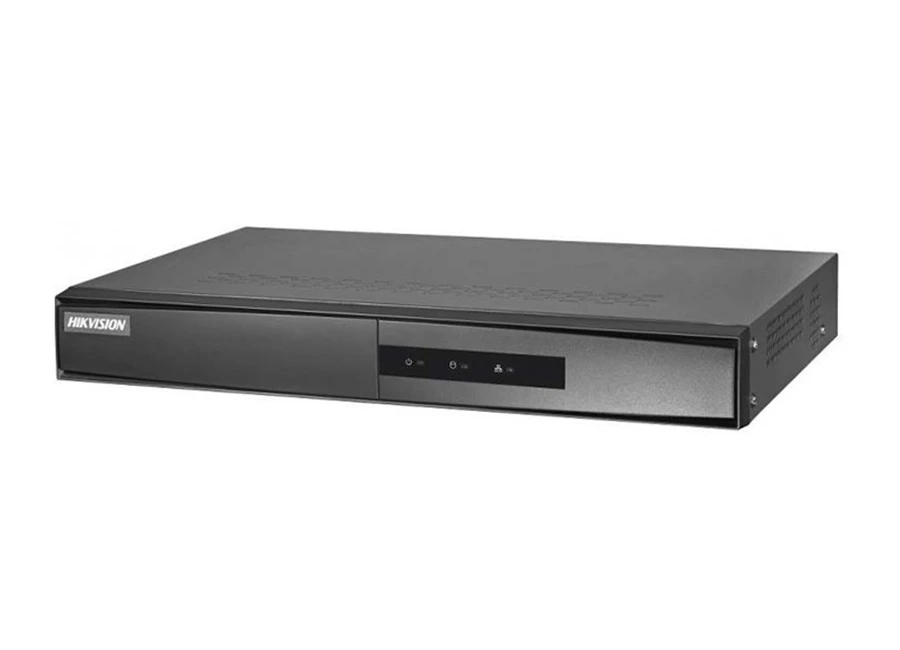

Hikvision DS 7104NI Q1/M NVR Kayıt Cihazı

Connectable to the third-party network cameras
4/8 network cameras can be connected
H.265+/H.265 compression effectively reduces the storage space and costs
Full channel recording at up to 4 MP resolution
HDMI/VGA output at 1080p resolution
1-ch playback at 4 MP resolution or 2-ch at 1080p resolution
1 SATA hard disks can be connected with 6TB capacity
Supports line crossing and intrusion detection
Smart search for the selected area in the video; and smart playback to improve the playback efficiency
Hik-Connect for easy network management
100 Mbps Ethernet network interface

Video/Audio Input
IP video input	4-ch
IP Video input	Up to 4 MP resolution
Network
Incoming bandwidth	40Mbps
Outgoing bandwidth	60 Mbps
Video/Audio Output
HDMI/VGA output	1-ch, resolution
	1920 × 1080P /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768 /60Hz
Recording Resolution	4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
Synchronous Playback	4-ch
VGA Output	1-ch, resolution 19201080P/60Hz, 12801024/60Hz, 1280720/60Hz, 1024768/60Hz
Decoding
Decoding format	H.265+/H.265/ H.264+/H.264
Capability	1-ch @ 4 MP / 2-ch @ 1080p
Live view / Playback	4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
Hard Disk
Interface Type	1 SATA interface
Capacity	Up to 6TB capacity for each disk
Capacity	Up to 6TB capacity for each HDD
External Interface
Network Interface	1 RJ-45 10 / 100 Mbps selfadaptive
	Ethernet interface
USB Interface	2, USB2.0
General
Power Supply	12 VDC
Power	≤ 18W
Consumption(without hard disk and POE)	≤ 10 W
Working Temperature	-10 oC ~ +55 oC (+14 oF~ + 131 oF)
Working Humidity	10 % ~ 90 %
Chassis	1U chassis
Dimensions	260 × 225 × 48 mm (10.2" × 8.9" × 1.9")
Weight(without HDD)	≤ 1 kg (2.2 lb)
