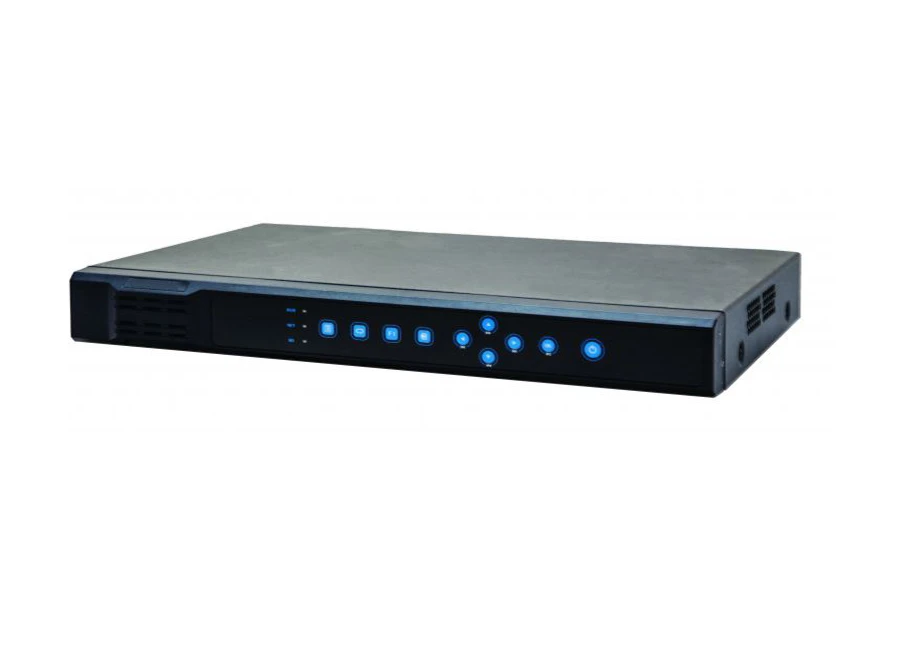

DCODE Exclusive DEN302 08EP NVR Kayıt Cihazı
Özellikler
Teknik Özellikler
| DEN302-08EP | DEN302-16EP | |
| Video/Audio Input | ||
| IP Video Input | 8-ch | 16-ch |
| Two-way Audio Input | 1-ch, RCA | |
| Network | ||
| Incoming Bandwidth | 80Mbps | 160Mbps |
| Outgoing Bandwidth | 96Mbps | |
| Remote Users | 128 | |
| Protocols | P2P, UPnP, NTP, DHCP, PPPoE | |
| Video/Audio Output | ||
| HDMI/VGA Output | HDMI/VGA: | |
| 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz | ||
| Recording Resolution | 4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |
| Audio Output | 1-ch, RCA | |
| Synchronous Playback | 8-ch | 16-ch |
| Corridor Mode Screen | 3/4/5/7/9 | 3/4/5/7/9/10/12/16 |
| Decoding | ||
| Decoding format | H.264 | |
| Live view/Playback | 4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |
| Capability | 4 x 4MP@20, 6 x 1080p@25, 16 x 720p@25 | |
| Hard Disk | ||
| SATA | 2 SATA interfaces | |
| Capacity | up to 6TB for each disk | |
| Smart | ||
| VCA Detection | Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking | |
| External Interface | ||
| Network Interface | 1 RJ-45 10M/100M self-adaptive Ethernet Interface | |
| USB Interface | Rear panel: 1 x USB2.0, 1 x USB3.0 | |
| PoE | ||
| Interface | 8 independent 100 Mbps PoE network interfaces | |
| Supported Standard | IEEE 802.3at | |
| General | ||
| Power Supply | 52V DC | |
| Power Consumption: ≤ 8 W( without HDD ) | ||
| Working Environment | -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing) | |
| Dimensions(W×D×H) | 360 mm ×254mm × 44 mm (10.0” × 14.2” ×1.7”) | |
| Weight ( without HDD ) | ≤ 1.47 Kg ( 3.24 lb ) | |
DCODE Exclusive DEN302 08EP NVR Kayıt Cihazı Pdf Dosyası488.12 KB
