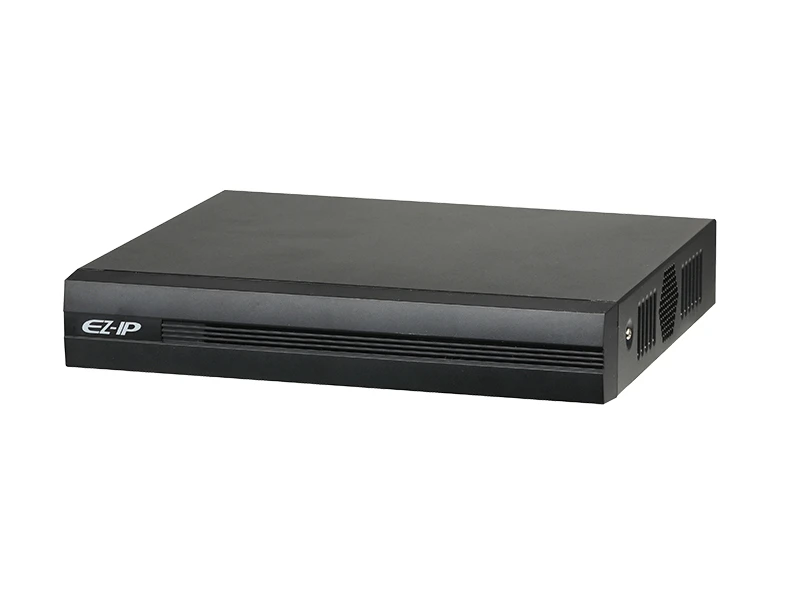

EZ IP NVR1B08HS 8P/E NVR Kayıt Cihazı
Özellikler
- H.265+/H.264+ codec decoding
- Max 40Mbps/20Mbps incoming/outgoing bandwidth
- Max 8 channel IP camera inputs
- Up to 6MP resolution preview&playback
- Up to 1ch@6MP/4ch@1080P 25fps decoding
- HDMI/VGA simultaneous video output
- Support IPC UPnP, 8PoE ports
Teknik Özellikler
| System | |
| Main Processor | Dual-core embedded processor |
| Operating System | Embedded LINUX |
| Audio and Video | |
| IP Camera Input | 8 Channel |
| Two-way Talk | N/A |
| Display | |
| Interface | 1 HDMI, 1 VGA |
| Resolution | 1920×1080, 1280×1024, 1280×720 |
| Decoding Capacity | 1ch@6MP 30fps, 4ch@1080P 25fps |
| Multi-screen Display | 1.Nis |
| OSD | Camera title, Time, Camera lock, Motion detection, Recording |
| Recording | |
| Compression | H.265+/H.264+ |
| Resolution | 6MP/5MP/4MP/3MP/1080P/ 720P/ D1&etc. |
| Record Rate | 40Mbps |
| Bit Rate | 16Kbps - 20Mbps Per Channel |
| Record Mode | Manual, Schedule(Regular(Continuous), MD, Stop |
| Record Interval | 1-120 min (default: 60 min), Pre-record: 1-30 sec, Post-record: 10-300 sec |
| Video Detection and Alarm | |
| Trigger Events | Recording, PTZ, Tour, Video Push, Snapshot, and Screen Tips |
| Video Detection | Motion Detection, MD Zones: 396 (22 × 18), |
| and Tampering | |
| Alarm input | N/A |
| Relay Output | N/A |
| Playback and Backup | |
| Sync Playback | 1.04.2009 |
| Search Mode | Time /Date, MD and Exact Search |
| (accurate to second) | |
| Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File,
Previous File, Next Camera, Previous Camera, Full Screen, Backup Selection, Digital Zoom |
| Backup Mode | USB Device/Network |
| Third-party Support | |
| Third-party Support | Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor,
Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, and more |
| Network | |
| Interface | 1 RJ-45 port (10/100Mbps) |
| PoE | 8 ports(IEEE802.3at/af) |
| Network Function | HTTP/HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, NTP, DHCP, DNS, IP Filter, IP Search(Support Dahua IP camera, DVR, NVS and etc.), P2P |
| Optical Fiber Interface | N/A |
| Max. User Access | 128 users |
| Smart Phone | iPhone, iPad, Android |
| Interoperability | ONVIF ,SDK, CGI Conformant |
| Storage | |
| Internal HDD | 1 SATA III Port, up to 4TB capacity for each HDD |
| HDD Mode | Single |
| eSATA | N/A |
| Auxiliary Interface | |
| USB | 2 ports (2 Rear USB2.0) |
| RS232 | N/A |
| RS485 | N/A |
| Electrical | |
| Power Supply | Single, DC48V/2A |
| Power Consumption | NVR: <4.29w without="" hdd="" --4="" 29w--=""> |
| PoE: Max 25.5w for single port, 72w in total | |
| Environmental | |
| Operating Conditions | -10°C - +45°C (+14°F - +113°F), 86 - 106kpa |
| Storage Conditions | -20°C - +70°C (-4°F - +158°F), 0 - 90% RH |
| Construction | |
| Dimensions(W×D×H) | Cooper 1U, 260mm×227mm×47.6mm |
| (10.24" x 8.94" x 1.87") | |
| Net Weight | 2 kg (4.41 lb) (without HDD) |
| Gross Weight | 2.5 kg(5.51 lb)(without HDD) |
| Certifications | |
| CE | EN55032, EN55024, EN50130-4, EN60950-1 |
| FCC | Part 15 Subpart B, ANSI C63.4-2014 |
