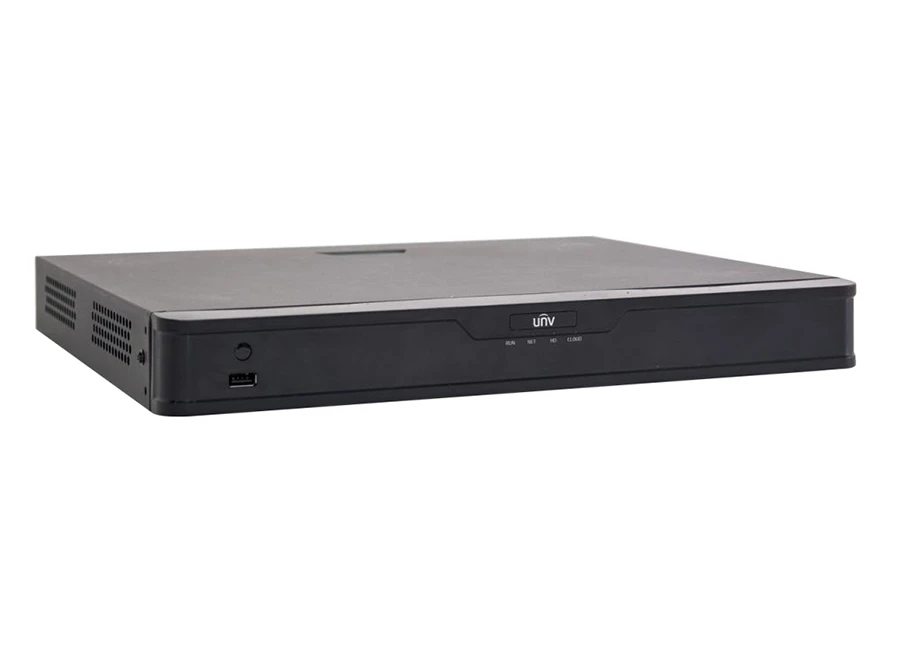

Uniview NVR302 08E P8 B NVR Kayıt Cihazı
Özellikler
- 8-channel input
- Third-party IP cameras supported with ONVIF conformance
- Support 1-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840x2160) resolution
- Up to 12 Megapixels resolution recording
- Support H.265/H.264 video formats
- Accurate retrieval, instant playback
- Up to 8TB for each disk
- Support various VCA detection alarm and VCA search
- Dewarping support for fisheye cameras
- Plug & Play with up to 8/16 independent PoE network interfaces
- Support for P2P, UPnP, NTP, DHCP, PPPoE
- Support for mobile client access
Teknik Özellikler
| Video/Audio Input | |
| IP Video Input | 8-ch |
| Two-way Audio Input | 1-ch, RCA |
| Network | |
| Incoming Bandwidth | 80Mbps |
| Outgoing Bandwidth | 160Mbps |
| Remote Users | 128 |
| Video/Audio Output | |
| HDMI/VGA Output | VGA: |
| 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz | |
| HDMI: | |
| 4K (3840x2160) /60Hz, 4K (3840x2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz | |
| Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Audio Output | 1-ch, RCA |
| Synchronous Playback | 8-ch |
| Decoding | |
| Compression | H.265/H.264 |
| Live view/ | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Playback | |
| Capability | 3 x 12MP@25, 4 x 4K@30, 8 x 4MP@30, 16 x 1080P@30 |
| Hard Disk | |
| SATA | 2 SATA interfaces |
| Capacity | up to 8TB for each disk |
| External Interface | |
| Network Interface | 1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface |
| USB Interface | Front panel: 1 x USB2.0, Rear panel: 1 x USB3.0 |
| Alarm In | 4-ch |
| Alarm Out | 1-ch |
| PoE | |
| Interface | 8 independent 100 Mbps PoE network interfaces |
| Max Power | Max 30W for single port |
| Max 130W in total ( 16.25W for each ) | |
| Supported Standard | IEEE 802.3af/at |
| General | |
| Power Supply | 100 ~ 240 V AC |
| Consumption | ≤ 20 W |
| Working Temperature | -10°C ~ + 55°C ( +14°F ~ +131°F ) |
| Working Humidity | 10% ~ 90% |
| Dimensions | 380 mm × 315mm × 46 mm |
| Weight ( without HDD ) | ≤2.42kg（5.34lb） |
Uniview NVR302 08E P8 B NVR Kayıt Cihazı Pdf Dosyası536.13 KB
