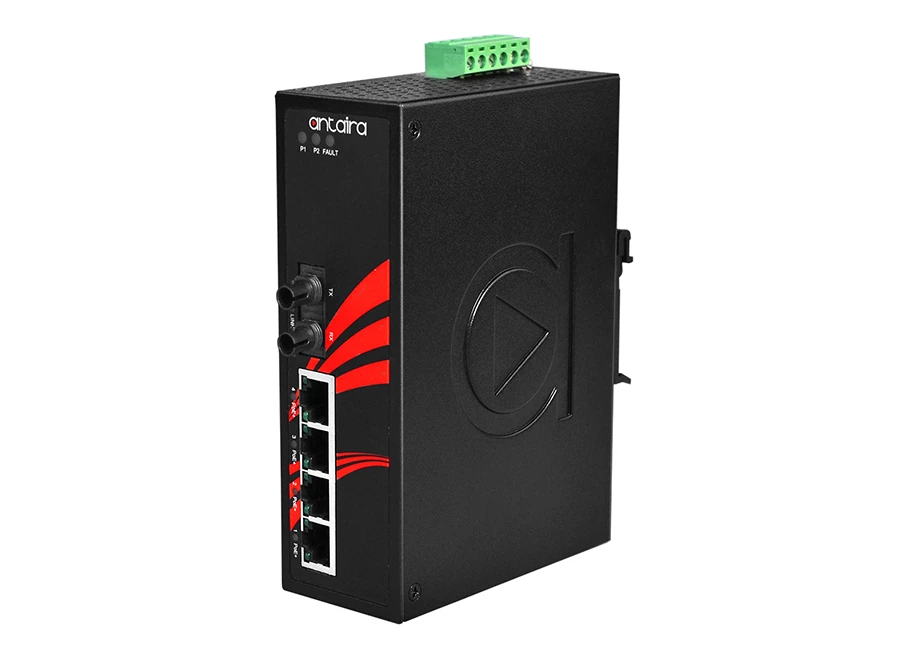

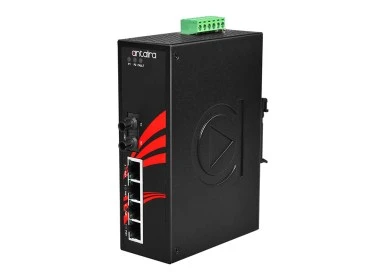

Antaira LNP-0501-ST-M-24-T Endüstriyel PoE+ Switch
Özellikler
- 4-Port IEEE 802.3at Compliant PoE+ Function with 30W/Port
- 1-Port 100Fx ST Type Connector (Multi-mode 2Km)
- Supports Auto MDI/MDI-X Function
- Store-and-Forward Switching Architecture
- 2K MAC Address Table
- Surge Protection: 2,000 VDC Support
- ESD Protection: 6,000 VDC Support
- Redundant Power Input Design – 12~36VDC
- Built-in 1 Relay Output for Power Failure Warning
- IP30 Rugged Metal Case Design
- DIN-Rail and Wall Mount Support
- Operating Temperature Range - EOT: -40° to 75°C
- 5-Year Warranty
Teknik Özellikler
| Certifications | FCC, CE, UL/cUL 508, ISA 12.12.01, Class 1 Div 2 |
| EMI | FCC Class A |
| EMS | IEC6100-4-2,3,4,5,6,8 / IEC6100-6-2,4 |
| Ethernet Port | 4*RJ45 Ports w/10/100Tx (PSE: 30W/Port) |
| Fiber Port | 1*100Fx (ST); Multi-mode 2Km |
| Free Fall / Shock / Vibration | IEC60068-2-32 / 27 / 6 |
| Green | RoHS Compliant |
| Housing / Mounting | Metal, IP30 Protection / DIN-Rail or Wall mounting |
| Humidity | 5 to 95%, (non-condensing) |
| Input Voltage & Connection | 12~36VDC, 6-Pin Terminal Block Redundant Input |
| MAC Table Size | 2K |
| Operating Temperature | EOT: -40 to 75°C |
| Overload Current Protection | Present |
| PoE Pin Out | V+, V+, V-, V- for pin s 1,2,3,6 |
| Endspan, MDI Alternative A | |
| Power Consumption | 145W @12~36VDC |
| Reverse Polarity Power Protection | Present |
| Standards | IEEE 802.3 10BaseTx Ethernet |
| IEEE 802.3u 100BaseTx Fast Ethernet | |
| IEEE 802.3at PoE+ | |
| IEEE 802.3x back pressure flow control | |
| Storage Temperature | -40°C ~ 85°C |
| Transfer Rate | 14,880pps for Ethernet Port |
| 148,800pps for Fast Ethernet Port | |
| Warranty | 5 Years |
| Wavelength | 1310nm |
Antaira LNP-0501-ST-M-24-T Endüstriyel PoE Switch Pdf Dosyası281.74 KB
Teknik Kısa
PoE : PoE Plus
Port Hızı : 100 Mbps
Yönetilebilirlik : Yönetilemez
Aktarım Port Sayısı : 1
Aktarım Türü : Gbit Fiber
Montaj Tipi : Wall Mount
PoE Port Sayısı :
4 Port
4 Port PoE Güç Bütçesi : 50-130 Watt
