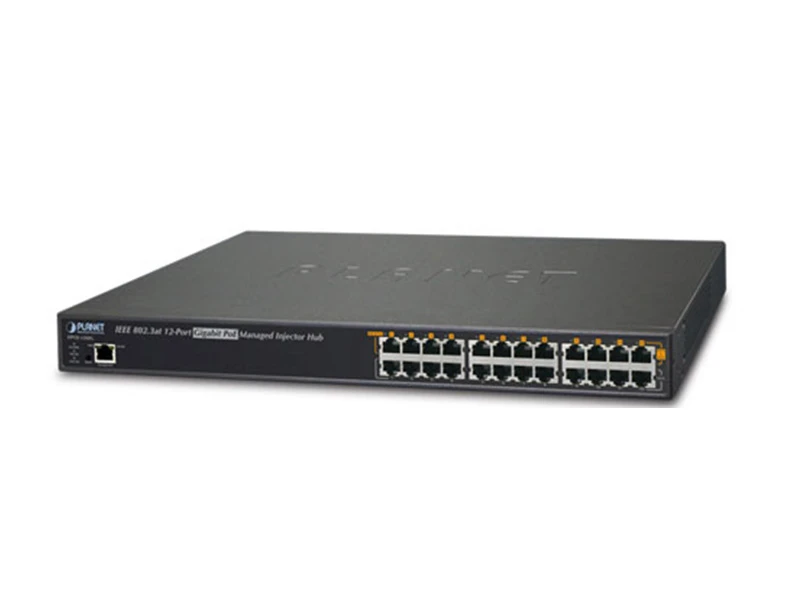

Planet HPOE 1200G PoE Injector Hub
Özellikler
Interface
- Complies with the IEEE 802.3, IEEE 802.3u and IEEE 802.3ab Ethernet standards
- 24-port RJ45
- - 12-port 10/100/1000Mbps
- Data input
- - 12-port 10/100/1000Mbps
- Data + Power output
- One 10/100/1000BASE-T management port
- Complies with IEEE 802.3at and IEEE 802.3af Power over Ethernet mid-span PSE
- Up to 12 IEEE 802.3at/802.3af devices powered
- 360-watt PoE budget
- Supports PoE power up to 30.8 watts (802.3at PoE)/15.4 watts (802.3af PoE) for each PoE port
- Automatically detects powered device (PD)
- Circuit protection prevents power interference between ports
- Remote power feeding up to 100m
PoE Management
- Total PoE power budget control
- Per port PoE power schedule
- PoE function enable/disable
- Per port PoE function enable/disable
- PoE port power feeding priority
- PD classification detection
- Over temperature protection
- PD alive-check
Management
- Web interface for remote management
- Supports Network Time Protocol (NTP)
- Firmware upgrade through Web interface
- PLANET Smart Discovery utility automatically finds PLANET devices on the network
- SNMP trap for alarm notification of events
- System log/remote syslog
Hardware
- 19-inch rack mountable; 1U height
- Reset button for resetting to default setting and system reboot
- LED indicators for PoE ready and PoE activity
- LED indicators for power alert and fan alert
- FCC Part 15 Class A, CE
Teknik Özellikler
| Hardware | |
| Hardware Version | 4 |
| Interface | Data Input Ports: 12 x RJ45 |
| Data + Power Output Ports: 12 x RJ45 | |
| Management Port: | |
| 1 x RJ45 10/100/1000BASE-T, auto-negotiation, auto-MDI/MDIX | |
| Data Rate | 10/100/1000Mbps |
| LED | System: |
| SYS PWR x 1 (Green) | |
| PoE Failure x 1 (Red) | |
| Fan Failure x 1 (Red) | |
| Per PoE Port: PoE-in-use x 1 (Green) | |
| Management port x 2: 1000 (Green), 10/100(Orange) | |
| Network Cable | 10BASE-T: 4-pair UTP Cat5 up to 100m (328ft) |
| 100BASE-TX: 4-pair UTP Cat5 up to 100m (328ft) | |
| 1000BASE-T: 4-pair UTP Cat5e/6 up to 100m (328ft) | |
| EIA/TIA- 568 100-ohm STP (100m) | |
| Power Requirements | 100-240V AC, 50/60 Hz, 6A |
| Power Consumption | 440 watts (max.) |
| Ventilation | Fan x 3 |
| Dimensions (W x D x H) | 440 x 300 x 44mm |
| Power over Ethernet | |
| PoE Power Supply Type | Mid-span |
| PoE Power Output | Per port DC 52V 30.8/15.4 watts |
| Power Pin Assignment | 4/5(-), 7/8(+) |
| PoE Power Budget | 360 watts |
| Number of 802.3af PDs (Class 0, 1, 2, 3) can be powered | 12 |
| Number of 802.3at PDs (Class 1, 2, 3) can be powered | 12 |
| Number of 802.3at PDs (Class 0, 4) can be powered | 12 |
| Management | |
| Management Interface | Web, PLANET Smart Discovery Lite |
| PoE Management | Power limit by consumption and classification |
| PoE admin mode | |
| Per port power schedule | |
| Per port power enable/disable | |
| Power feeding priority | |
| Over temperature protection | |
| Current per port usage and status | |
| Total power consumption | |
| Management Feature | Setup of system/management functions |
| Web firmware upgrade | |
| SNMP trap for alarm notification of events | |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Standards Compliance | IEEE 802.3 10BASE-T Ethernet |
| IEEE 802.3u 100BASE-TX Fast Ethernet | |
| IEEE 802.3ab 1000BASE-T Gigabit Ethernet | |
| IEEE 802.3at Power over Ethernet Plus | |
| IEEE 802.3af Power over Ethernet | |
| RFC 768: UDP | |
| RFC 791: IP | |
| RFC 2068 HTTP | |
| RFC 1157: SNMP v1 | |
| RFC 1902: SNMP v2c | |
| RFC 5424: Syslog | |
| Environments | |
| Operating | Temperature: 0 ~ 50 degrees C |
| Relative Humidity: 5 ~ 90% (non-condensing) | |
| Storage | Temperature: -10 ~ 70 degrees C |
| Relative Humidity: 5 ~ 90% (non-condensing) | |
