Açıklama

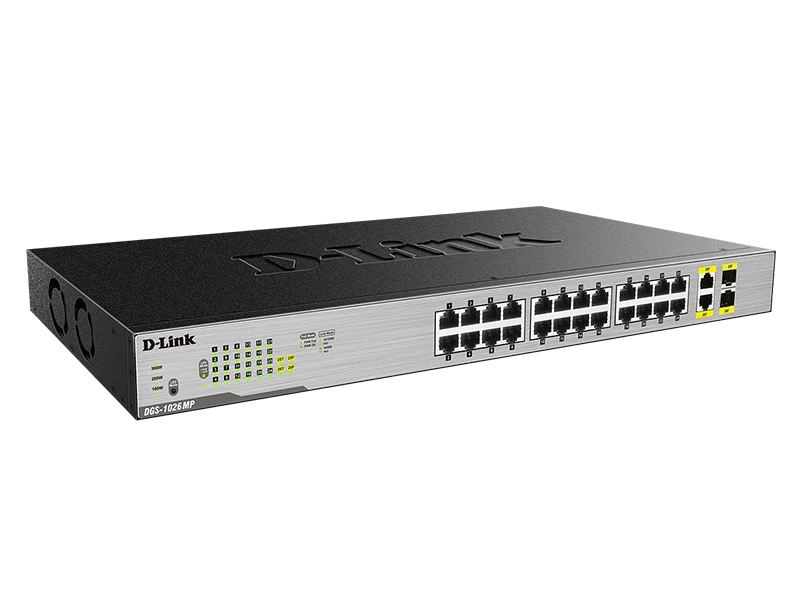

D-Link DGS 1026MP 10/100/1000 PoE Switch
Teknik Özellikler
| Number of Ports |
| 24 x 10/100/1000 Mbps ports |
| 2 x 10/100/1000BASE-T/SFP combo ports |
| Standards |
| IEEE 802.3 10BASE-T Ethernet |
| IEEE 802.3u 100BASE-TX Fast Ethernet |
| IEEE 802.3ab 1000BASE-T Gigabit Ethernet |
| IEEE 802.3z |
| IEEE 802.3x Flow Control |
| IEEE 802.3az Energy Efficient Ethernet (EEE) |
| Switching Capacity |
| 52 Gbps switching fabric |
| 64 Byte Max. Forwarding Rate |
| 38.69 Mpps |
| Media Interface Exchange |
| Auto MDI/MDI-X |
| Transmission Method |
| Store-and-forward |
| MAC Address Table |
| 8K (8192) entries per device |
| Packet Buffer Memory |
| 512 KB per device |
| PoE Standards |
| IEEE 802.3at |
| IEEE 802.3af |
| PoE Ports |
| Ports 1 to 24 |
| PoE Budget |
| 370 W |
| Up to 30 W per port |
| LEDs |
| Per Unit |
| Power |
| PoE Power Budget |
| Per Port |
| Activity/Link |
| Speed |
| Per PoE Port |
| Power Fail |
| Power OK |
Fiziksel Özellikler
| Fan |
| 2 x Smart fans |
| Dimensions |
| 440 x 250.4 x 44 mm |
| Weight |
| 3.1 kg |
| Power Input |
| AC Input: 100 to 240 V AC, 50/60 Hz |
| Power Consumption |
| Maximum: |
| 444.1 W (PoE on) |
| 82.1 W (PoE off) |
| Standby: |
| 100 V: 18.35 W |
| 240 V: 18.25 W |
| Temperature |
| Operating: 0° to 50°C |
| Storage: -40° to 70°C |
| Humidity |
| Operating: 10% to 90% non-condensing |
| Storage: 5% to 90% non-condensing |
| MTBF |
| 205,975 hours |
| Heat Dissipation |
| 1,515 BTU/h |
| EMI |
| FCC Class A |
| CE |
| CCC |
| RoHS |
| VCCI |
| BSMI |
| RCM |
| Safety |
| UL/CSA 60950-1 |
| EN 60950-1 |
| IEC 60950-1 |
D-Link DGS 1026MP 10/100/1000 PoE Switch Pdf Dosyası488.15 KB
Teknik Kısa
PoE : PoE
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilemez
Aktarım Port Sayısı : 2
Aktarım Türü : Combo
PoE Port Sayısı :
24 Port
24 Port PoE Güç Bütçesi : 200-400 Watt
