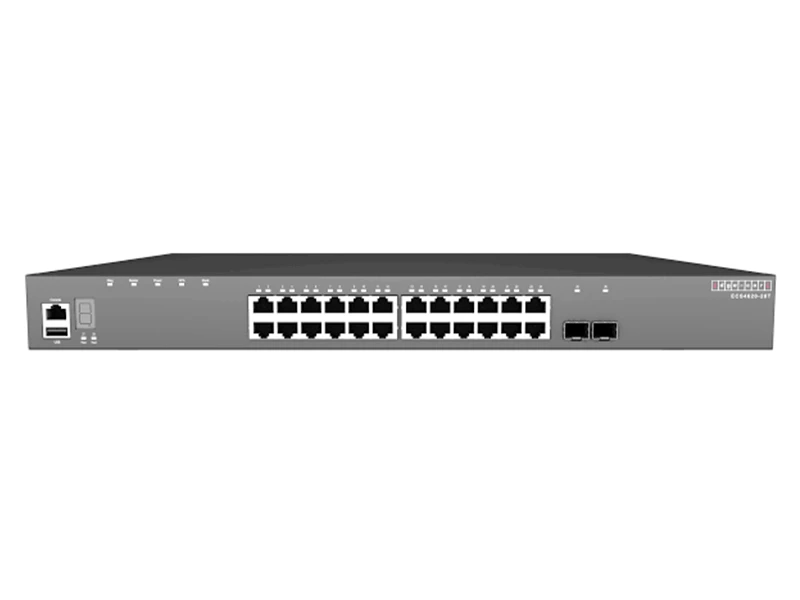

Edge-corE ECS4620 28P 10/100/1000 PoE Switch
Teknik Özellikler
| Expansion Slots |
| 1 |
| Flash Memory |
| 128MB |
| Performance |
| Forwarding Rate |
| 95.23 Mpps |
| MAC Address Table Size |
| 16K |
| Switching Capacity |
| 128 Gbps |
| L3 Features |
| Proxy ARP:Yes |
| Unicast Routing:RIP v1/v2 OSPF BGP4 |
| VRRP:Yes |
| QoS Features |
| CoS:IEEE 802.1p DSCP |
| H/W Queues:8 hardware queues per port |
| Rate Limiting:Ingress Egress |
| Security Features |
| ARP Inspection: Yes |
| DHCP Snooping:Yes |
| HTTP and SSL ( Secured Web):Yes |
| IEEE 802.1x:Port-based MAC-based |
| IP Source Guard:Yes |
| Management Access filtering:SNMP WEB Telnet |
| SSH v1.5/ v2.0 (Secured Telnet Session):Yes |
| TACACS+:Authentication Accounting Authorization |
| Management Features |
| DHCP:Client Server Dynamics Provision |
| DNS:Client Proxy |
| Dual F/W Images:Yes |
| Firmware Upgrade:TFTP (RFC783) |
| LLDP:Yes |
| RMON:RMON I (1,2,3 9 groups) |
| sFlow:Yes |
| Software Download / Upgrade:TFTP (RFC783) |
| IPv6 Features |
| ICMPv6:Yes |
| ICMPv6 Redirect:Yes |
| IPv4/IPv6 Dual Protocol Stack:Yes |
| IPv6 Address Types:Unicast Multiicast |
| IPv6 Management:IPv6 SNTP Support SNMP over IPv6 IPv6 Telnet Support Remote IPv6 Ping IPv6 Syslog Support IPv6 DNS Resolver IPv6 FTP support HTTP over IPv6 IPv6 sFlow |
| IPv6 Multicast Routing:MLD v1/v2 Snooping |
| IPv6 Security:SSH over IPv6 |
| Pv6 Neighbor Discovery:Static Cache Entry Address Resolution |
| Item Dimension (L”xW”xH”): |
| 17.32 x 12.4 x 1.73 |
| Weight: |
| 8.16 lb |
| Warranty Information: |
| 1 Year |
Edge-corE ECS4620 28P 10/100/1000 PoE Switch Pdf Dosyası321.8 KB
Teknik Kısa
PoE : PoE Plus
Port Hızı : 100 Mbps
Yönetilebilirlik : Yönetilebilir Layer 3
Aktarım Port Sayısı : 2
Aktarım Türü : 10Gbit Fiber
PoE Port Sayısı :
1 Port
1 Port PoE Güç Bütçesi : 400-800 Watt
