Açıklama

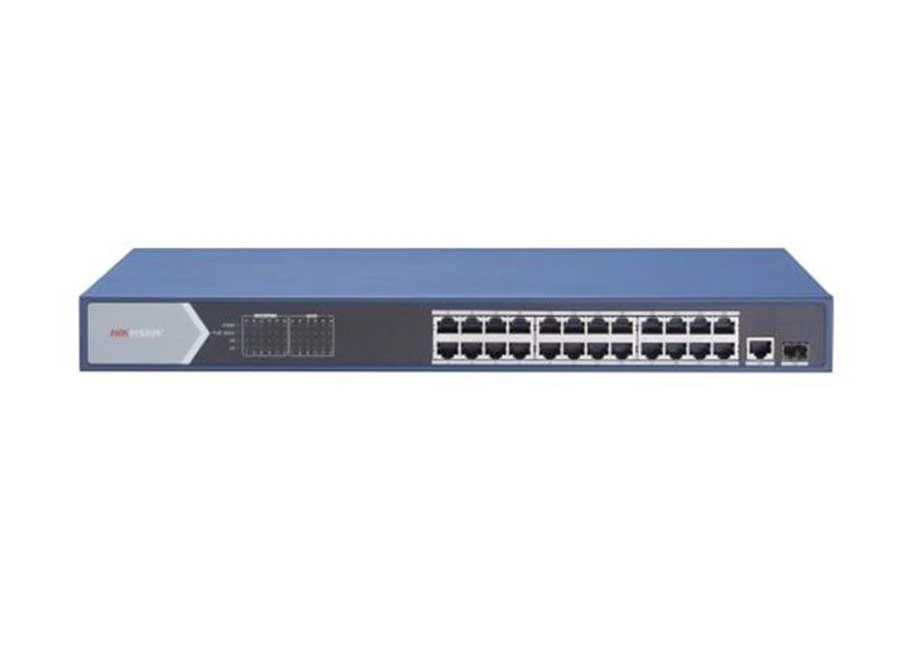

Hikvision DS 3E0526P E PoE Switch

24 × gigabit PoE ports, 1 × gigabit RJ45 port, and 1 × gigabit SFP fiber optical port.
IEEE 802.3at/af standard.
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z standard.
PoE port with 6 KV surge protection.
PoE output power management.
Gigabit network access.
Wire-speed forwarding and non-blocking design.
Store-and-forward switching.
Solid high-strength metal shell.

PoE : PoE

PoE Port Sayısı : Tooltip

24 Port

PoE Güç Bütçesi : 200-400 Watt

Aktarım Port Sayısı : 2

Item
Item	DS-3E0526P-E
Backplane
Backplane	52 Gbps
Forwarding rate
Forwarding rate	38.688 Mpps
MAC
MAC	8 K
Ports
Ports	24 × gigabit PoE ports, 1 × gigabit RJ45 port, and 1 × gigabit SFP fiber optical port
Dimensions(W×D×H)(mm)
Dimensions(W×D×H)(mm)	440 mm × 44 mm × 220.8 mm (17.3” × 1.7” × 8.7”)
POE/POE+
POE/POE+	IEEE 802.3af, IEEE 802.3at
POE power consumption
POE power consumption	400 W
Power supply
Power supply	100 to 240 VAC, 50/60 Hz, Max. 6.5 A
Environment
Environment	Operating temperature 0˚C to 40˚C (32˚F to 104˚F)
	Storage temperature –40˚C to 85˚C (–40˚F to 185˚F)
	Operating humidity 5% to 95% (no condensation)
	Storage humidity 5% to 95% (no condensation)
