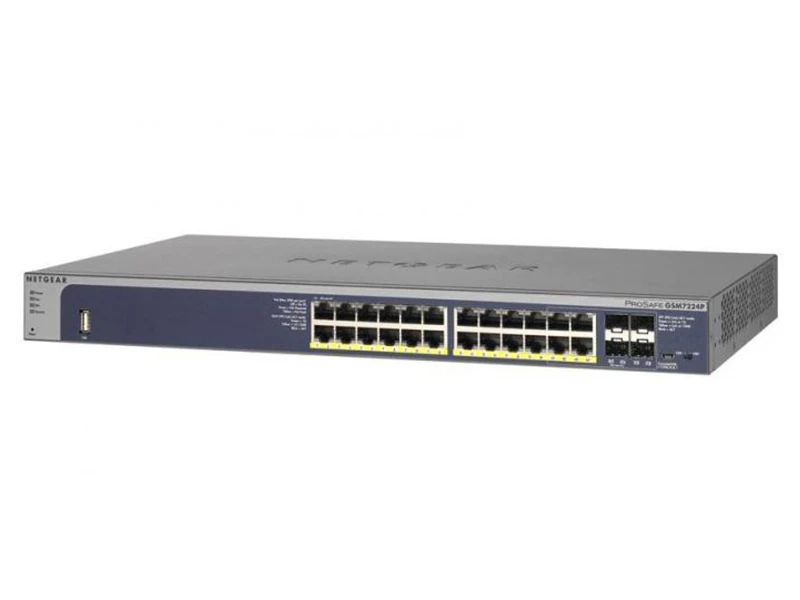

Netgear GSM7224P PoE Switch
Teknik Özellikler
| FİZİKSEL ARAYÜZ |
| Ön |
| 24 auto-sensing RJ45 10/100/1000 ports |
| 4 shared SFP ports Fiber 100/1000 |
| 1 USB port (config/firmware files storage) |
| 1 Mini-USB port RS-232 for console |
| Arka |
| 1 Serial DB9 RS-232 port for console |
| 1 Connector for Redundant Power Supply |
| 1 Kensington Lock Slot |
| Power Supply: 1 fixed PSU |
| Toplam |
| 24 ports |
| POE |
| 24 PoE+ ports |
| IEEE 802.3af (up to 15.4 Watts/port) |
| IEEE 802.3at (up to 30 Watts/port) |
| IEEE 802.3at Layer 2 (LLDP) method |
| IEEE 802.3at 2-event classification |
| PoE timer/schedule (week, days, hours) |
| TOTAL POE BUDGET |
| AC Power Mode |
| Using built-in PSU: 380 Watts |
| İŞLEMCİ / HAFIZA |
| Processor: BCM53003 @600 MHz |
| System memory: 128 MB (RAM) |
| Packet buffer memory: 12 Mb |
| Code storage (flash): 32 MB |
| FİZİKSEL ÖZELLİKLER |
| Dimensions (w x d x h): 440 x 257 x 44 mm (17.32 x 10.12 x 1.73 in) |
| Weight: 4.368 kg (9.63 lb) |
| GÜÇ TÜKETİMİ |
| Max AC Current (with max PoE): 5.59 A |
| Max AC Watts (with max PoE): 533W |
| Heat dissipation: 1,820 Btu/hr |
| ÇEVRESEL ÖZELLİKLER |
| Çalışma : |
| Temperature: 32° to 122°F (0° to 50°C) |
| Humidity: 90% maximum relative humidity, non-condensing |
| Altitude: 10,000 ft (3,000 m) max |
| Depolama : |
| Temperature: – 4° to 158°F (–20° to 70°C) |
| Humidity: 95% maximum relative humidity, non-condensing |
| Altitude: 10,000 ft (3,000 m) max |
| ELECTROMAGNETIC EMISSIONS AND IMMUNITY |
| CE mark, commercial |
| FCC Part 15 Class A, VCCI Class A |
| Class A EN 55022 (CISPR 22) Class A |
| Class A C-Tick |
| EN 50082-1 |
| EN 55024 |
| GÜVENLİK |
| CE mark, commercial |
| CSA certified (CSA 22.2 #950) |
| UL listed (UL 1950)/cUL IEC 950/EN 60950 |
| PAKET İÇERİĞİ |
| GSM7224P |
| Power cord |
| Rubber footpads for tabletop installation |
| Rubber caps for the SFP |
| Rack mounting kit |
| Mini-USB to USB cable for console |
| Resource CD |
| ProSafe NMS200 Network Management System DVD |
| WARRANTY AND SUPPORT |
| ProSafe Lifetime Warranty† |
| ProSupport Lifetime 24x7 Advanced Technical Support* |
| Next business day onsite hardware replacement support, 3 years (included)** |
| MODULES & ACCESSORIES |
| AFM735 100BASE-FX SFP GBIC |
| AGM731F 1000BASE-SX SFP GBIC |
| AGM732F 1000BASE-LX SFP GBIC |
| RPS5412 (Optimal Power® External Redundant Power Supply) |
Teknik Kısa
PoE : PoE Plus
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 3
Aktarım Port Sayısı : 4
Aktarım Türü : Gbit Fiber
PoE Port Sayısı :
24 Port
24 Port PoE Güç Bütçesi : 200-400 Watt
Montaj Tipi : Rack Mount
