Açıklama

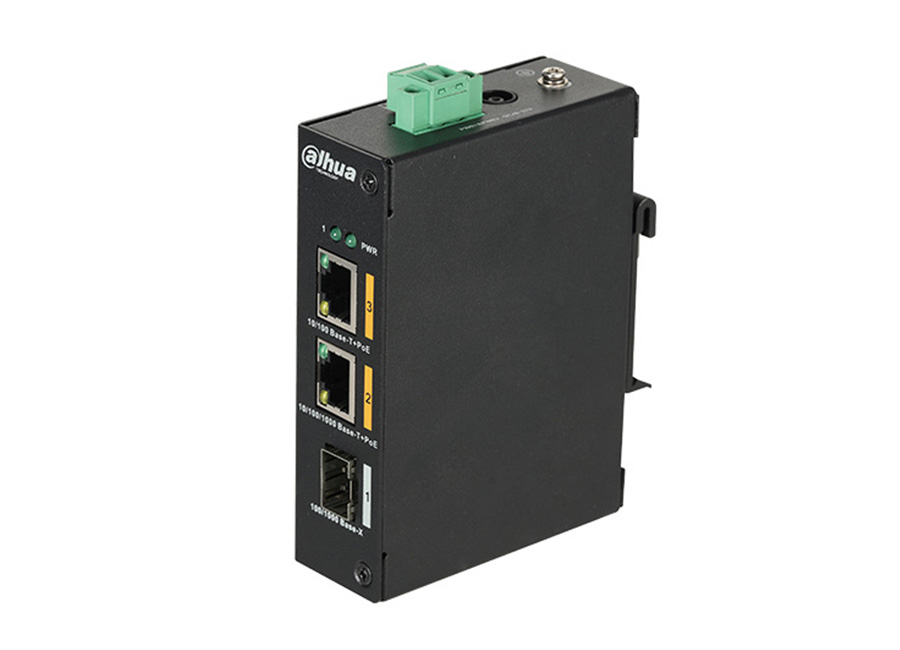

Dahua PFS3103-1GT1ET-60 PoE Switch

Name: Dahua PFS3103-1GT1ET-60 PoE Switch
Brand: Dahua

PoE : PoE

Port Hızı : 1 GBit

PoE Port Sayısı : Tooltip

2 Port

PoE Güç Bütçesi : 50-130 Watt

Yönetilebilirlik : Yönetilemez

Hardware
Data Transmission Port	Port 3: 1 × RJ-45 10/100M (PoE)
	Port 2: 1 × RJ-45 10/100/1000M (PoE)
	Port 1: 1 × SFP 100/1000M (uplink)
Power Supply	48 V - 57 V DC
Operaing Temperature	–30 °C to +65 °C (-22 °F to +149 °F)
Operating Humidity	5% – 95% (RH)
Power Consumption	Idling: 3 W
Power Consumption	Full load: 60 W
Performance
Capacity	7.6 Gbps
Packet Forwarding Rate	4.17 Mbps
Packet Buffer Memory	1 Mbit
MAC Table Size	8K
Communication Standard	IEEE802.3/IEEE802.3u/IEEE802.3X/IEEE 802.3ab/IEEE 802.3z
PoE
PoE Standard	IEEE802.3af/ IEEE802.3at/ Hi-PoE/ IEEE802.3bt
PoE Power	Port 1-2 ≤ 90 W, Port 3-8 ≤ 30W, total≤ 96 W
Power Consumption Management	Yes
PoE Pin Assignment	1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
Long Distance PoE	250 m (820.21 ft) long distance PoE transmission
General
Statics Protection	Air discharge: 8 kV
Statics Protection	Contact discharge: 6 kV
Thunder-proof	Common mode: 4 kV
Thunder-proof	Differential mode: 2 kV
Net Weight	0.28 kg (0.62 lb)
Product Dimensions	105 mm × 75 mm × 30 mm (4.13" × 2.95" × 1.18")
