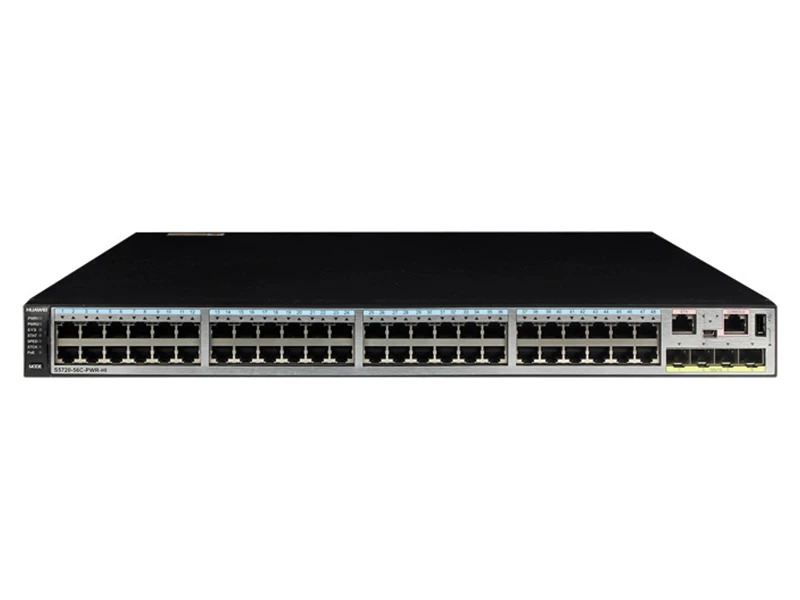

Huawei S5720 56C PWR HI AC 10/100/1000 PoE Switch
Teknik Özellikler
| Fixed port |
| 48×10/100/1000Base-T, 4×10GE SFP+ |
| MAC address table |
| IEEE 802.1d compliance |
| MAC address learning and aging |
| Static, dynamic, and blackhole MAC address entries |
| Packet filtering based on source MAC addresses |
| MAC address entries: 128K |
| VLAN |
| 4K VLANs |
| Guest VLAN and voice VLAN |
| GVRP |
| MUX VLAN |
| VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports |
| 1:1 and N:1 VLAN Mapping |
| Ring protection |
| RRPP ring topology and RRPP multi-instance |
| Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchover |
| SEP |
| ERPS(G.8032）(supported by the S5700-LI/S5700-SI/S5700-EI/S5700-HI series) |
| STP, RSTP, and MSTP |
| BPDU protection, root protection, and loop protection |
| BPDU Tunnel |
| Reliability |
| Ethernet OAM (IEEE 802.3ah and 802.1ag) |
| ITU-Y.1731 |
| DLDP |
| LACP |
| MPLS features |
| MPLS L3VPN |
| MPLS L2VPN(VPWS/VPLS) |
| MPLS-TE |
| MPLS QoS |
| IP routing |
| Static routing |
| RIPv1, RIPv2 and RIPng,ECMP(supported by the S5700-SI/S5700-EI/S5700-HI series) |
| IPv6 features |
| Neighbor Discovery (ND) |
| Path MTU (PMTU) |
| IPv6 ping, IPv6 tracert, and IPv6 Telnet |
| ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol type |
| MLD v1/v2 snooping |
| Multicast |
| IGMP v1/v2/v3 snooping and IGMP fast leave |
| Multicast forwarding in a VLAN and multicast replication between VLANs |
| Multicast load balancing among member ports of a trunk |
| Controllable multicast |
| Port-based multicast traffic statistics |
| QoS/ACL |
| Rate limiting on packets sent and received by an interface |
| Packet redirection |
| Port-based traffic policing and two-rate three-color CAR |
| Eight queues on each port |
| WRR, DRR, SP, WRR+SP, and DRR+SP queue scheduling algorithms |
| Re-marking of the 802.1p priority and DSCP priority |
| Packet filtering at Layers 2 through 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP port number, protocol type, and VLAN ID |
| Rate limiting in each queue and traffic shaping on ports |
| Security |
| User privilege management and password protection |
| DoS attack defense, ARP attack defense, and ICMP attack defense |
| Binding of the IP address, MAC address, interface, and VLAN |
| Port isolation, port security, and sticky MAC |
| MFF |
| Blackhole MAC address entries |
| Limit on the number of learned MAC addresses |
| 802.1x authentication and limit on the number of users on an interface |
| AAA authentication, RADIUS authentication, HWTACACS authentication, and NAC |
| SSH v2.0 |
| Hypertext Transfer Protocol Secure (HTTPS) |
| CPU defense |
| Blacklist and whitelist |
| Access Security |
| DHCP Relay, DHCP Server, DHCP Snooping, DHCP Security |
| Management and maintenance |
| Virtual cable test |
| Port mirroring and RSPAN (remote port mirroring) |
| Remote configuration and maintenance using Telnet |
| SNMP v1/v2c/v3 |
| RMON |
| Web NMS |
| HGMP |
| System logs and alarms of different levels |
| Interoperability |
| Supports VBST (Compatible with PVST/PVST+/RPVST) |
| Supports LNP (Similar to DTP) |
| Supports VCMP (Similar to VTP) |
| Operating environment |
| Operating temperature: 0℃–50℃ |
| Relative humidity: 10%–90% (non-condensing) |
| Input voltage |
| AC: |
| Rated voltage range: 100 V to 240 V AC, 50/60 Hz |
| Maximum voltage range: 90 V to 264 V AC, 47/63 Hz |
| DC: |
| Rated voltage range: –48 V to –60 V, DC |
| Maximum voltage range: –36 V to –72 V DC |
| Note: PoE-support switches do not use DC power supplies. |
| Dimensions (W x D x H) |
| 442x470.0x87.2 |
| Power Consumption |
| without PD: <188.74W, |
| with PD: <1739W(device:299W, PD: 1440W) |
Teknik Kısa
PoE : PoE Plus
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir
Aktarım Port Sayısı : 4
Aktarım Türü : Gbit Fiber
PoE Port Sayısı :
48 Port
48 Port PoE Güç Bütçesi : 130-200 Watt
