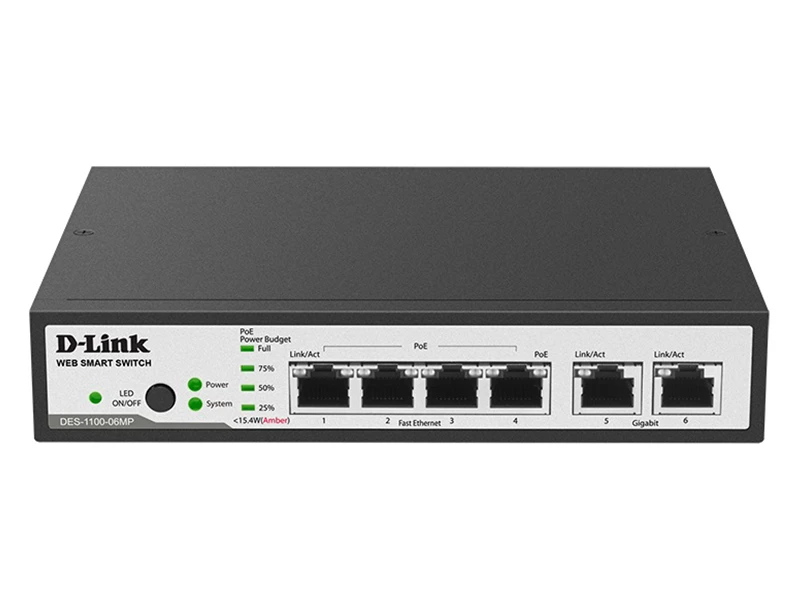

D-Link DES 1100 06MP 10/100 PoE Switch
Teknik Özellikler
| General features: |
| Size :7-inch metal case |
| Interface : 4 10/100BASE-TX |
| 2 10/100/1000BASE-T |
| Port Standards |
| IEEE 802.3 10BASE-T Ethernet (twisted-pair copper) |
| IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper) |
| IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted-pair copper) |
| IEEE 802.3af PoE |
| IEEE 802.3at PoE |
| Auto-negotiation |
| IEEE 802.3x Flow Control |
| Performance |
| Switching Capacity : 4.8 Gbps |
| Maximum Forwarding Rate : 3.6 Mpps |
| MAC Address Table Size : 4K Entries |
| Packet Buffer : 2.75 Mbits |
| Flash Memory : 2 Mbytes |
| Forwarding Method : Store and forward |
| LEDs : Power (Per Device) |
| Link/Active/Speed (Per Port) |
| PoE Budget LED |
| PoE Capable Ports : Ports 1-4 |
| Power Budget : 80 W |
| Software Features |
| Layer 2 Features |
| MAC Address Table : 4K entries |
| Flow Control |
| 802.3x Flow Control |
| HOL Blocking Prevention |
| Port Mirroring |
| One-to-One |
| Many-to-One |
| Supports Mirroring for Tx/Rx/Both |
| Spanning Tree |
| Supports 802.1D STP 2004 edition |
| Supports 802.1w RSTP |
| Supports Root Restriction (defined in 802.1Q-2005) |
| 802.3ad Link Aggregation |
| Supports 2 trunking groups: |
| 2-4 ports per trunk, port 1-4 and port 5-6 |
| Layer 2 Multicasting |
| IGMP Snooping |
| Supports IGMP v1/2 |
| VLAN |
| VLAN mode: tag-based or port-based* |
| Quality of Service (QoS) |
| 802.1p |
| Max. 4 queues per port |
| Queue Handling |
| Strict |
| Weighted Round Robin (WRR) |
| Bandwidth control |
| CoS Based on: |
| 802.1p |
| DSCP |
| ToS |
| TCP/UDP port number |
| Security |
| Storm Control |
| MAC-Port Binding |
| Physical |
| MTBF : 61320 hours |
| Acoustics : 0 dB |
| Heat Dissipation : 45.73 BTU/h |
| Power Input : 54 V / 2.22 A external power adapter |
| Maximum Power Consumption : 94.5 W |
| Weight : 480 g |
| Dimensions : 180 x 145 x 34 mm |
| Operating Temperature : 0 to 50°C |
| Storage Temperature : -20 to 70 °C |
| Operating Humidity : 20% to 80% non-condensing |
| Storage Humidity : 10% to 90% non-condensing |
| Certification : CE |
Teknik Kısa
PoE : PoE
Port Hızı : 100 Mbps
Yönetilebilirlik : Yönetilebilir Layer 2
Aktarım Port Sayısı : 2
Aktarım Türü : Gbit Fiber
PoE Port Sayısı :
4 Port
4 Port PoE Güç Bütçesi : 50-130 Watt
