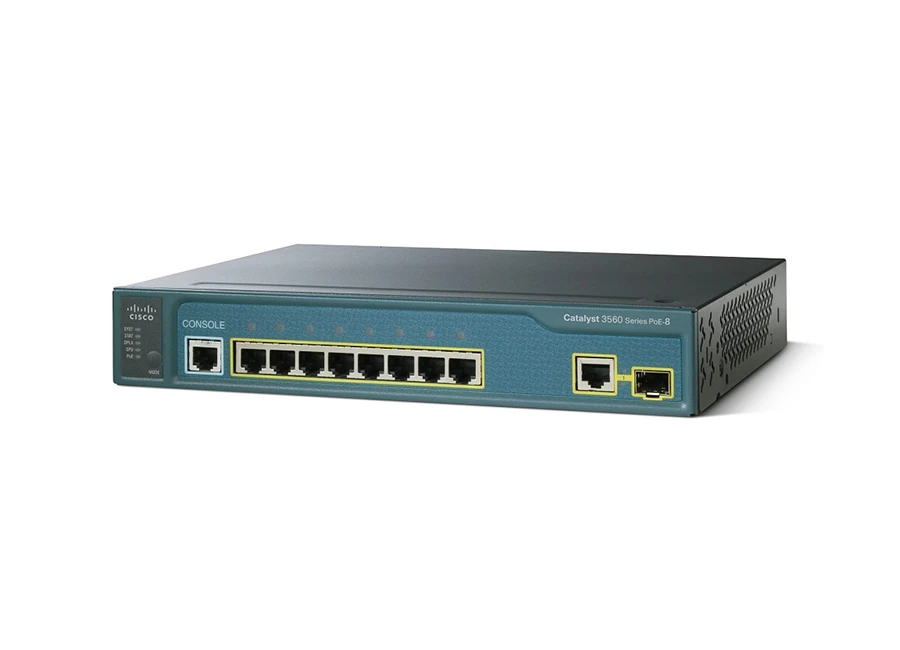

Cisco Catalyst 3560 8PC S Compact PoE Switch
Özellikler
- 8 Ethernet 10/100 ports and 1 dual-purpose 10/100/1000 and SFP port
- Compact form-factor with no fan
- Enterprise-class intelligent services delivered to the network edge
- IEEE 802.3af and Cisco prestandard Power over Ethernet
- IP Base software feature set (IPB)
Teknik Özellikler
| Specifications | |
| Type | Fixed |
| Topology | Ethernet (10/100BaseTX) |
| Ethernet (10/100/1000 Ethernet PortsBaseT) | |
| Gigabit Ethernet (SFP) | |
| Maximum Port density | 8 10/100 PoE ports |
| Uplinks | 1 dual-purpose (10/100/1000 Ethernet Ports or SFP) ports |
| Modular/Expansion Slots | n/a |
| Architecture | Layer 2 Switching (basic connectivity), Layer 2 Switching (intelligent services), Layer 3 Switching, Voice Enabled |
| Form Factor | Fixed, Rack Mountable, Standalone/Clustering |
| Dimensions | 1.73 x 10.6 x 9.1 in. |
| DRAM | 128 MB |
| Features | |
| Specialized Service Modules | n/a |
| High Availability/Resilliency | |
| Hardware Redundancy | n/a |
| High Availability/Resilliency | PVST, Broadcast Suppression, Unicast Suppression, Mulitcast Suppression, Spanning Tree, Portfast, Uplink Fast, Backbone Fast, 802.1s, 802.1w, HSRP |
| Management | |
| Management features | SPAN, RSPAN, CiscoView, Cisco Discover Protocol (CDP), Virtual Trunking Protocol (VTP), Telnet Client, BOOTP, TFTP, CiscoWorks, CWSI, RMON, SNMP, Clustering, Web-Based Management |
| Scalability | |
| WAN Interface Support | n/a |
| Throughput | 2.7 Mpps |
| Backplane Capacity | 8.8 Gbps |
| Number of VLANs | 4k, 1024 |
Cisco Catalyst 3560 8PC S Compact PoE Switch Pdf Dosyası320.38 KB
Teknik Kısa
PoE : PoE
Port Hızı : 100 Mbps
Yönetilebilirlik : Yönetilebilir Layer 3
Aktarım Port Sayısı : 1
Aktarım Türü : Gbit Fiber
Montaj Tipi : Rack Mount
PoE Port Sayısı :
8 Port
8 Port
