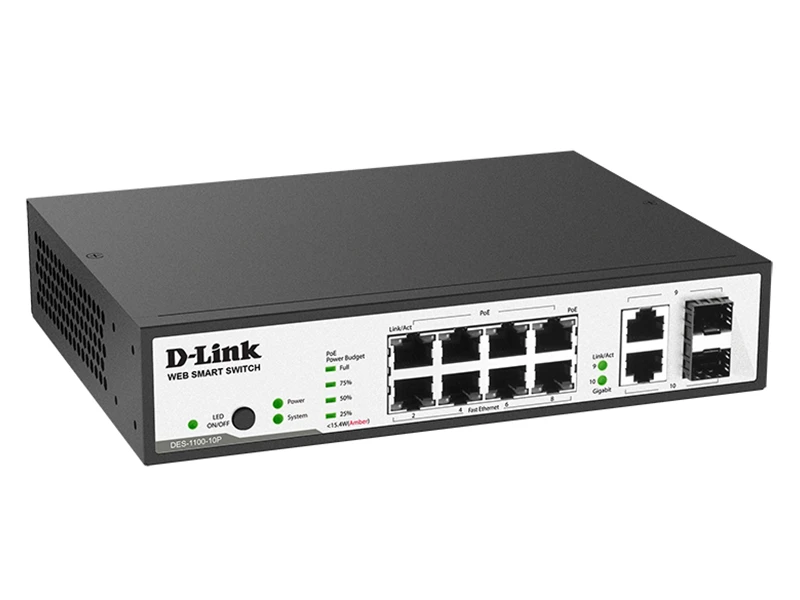

D-Link DES 1100 10P 10/100 PoE Switch
Özellikler
- 8 10/100-T ports + 2 10/100/1000-T ports
- (1st ~ 8th FE ports support PoE, 9th ~ 10th GE port does not support PoE.)
- Per port LED indicators.
- System and POE LED indicators.
- DC Inlet.
- Push button. (can turn off/on Port LED display for energy saving.)
- Factory Default button. (to reset system configuration to default value.)
Teknik Özellikler
| General features: |
| Size : 8-inch metal case |
| Interface : 8 10/100BASE-TX |
| 2 10/100/1000BASE-T |
| Port Standards |
| IEEE 802.3 10BASE-T Ethernet (twisted-pair copper) |
| IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper) |
| IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted- pair copper) |
| IEEE 802.3af PoE |
| IEEE 802.3at PoE |
| Auto-negotiation |
| IEEE 802.3x Flow Control |
| Performance |
| Switching Capacity : 5.6 Gbps |
| Maximum Forwarding Rate : 4.2 Mpps |
| MAC Address Table Size : 4K Entries |
| Packet Buffer : 2.75 Mbits |
| Flash Memory : 2 Mbytes |
| Forwarding Method : Store and forward |
| LEDs : Power (Per Device) |
| Link/Active/Speed (Per Port) |
| PoE Budget LED |
| PoE Capable Ports : Ports 1-8 |
| Power Budget : 90 W Software Features |
| Layer 2 Features |
| MAC Address Table : 4K entries |
| Flow Control |
| 802.3x Flow Control |
| HOL Blocking Prevention |
| Port Mirroring |
| One-to-One |
| Many-to-One |
| Supports Mirroring for Tx/Rx/Both |
| Spanning Tree |
| Supports 802.1D STP 2004 edition |
| Supports 802.1w RSTP |
| Supports Root Restriction (defined in 802.1Q-2005) |
| 802.3ad Link Aggregation |
| Supports 2 trunking groups: |
| 2-4 ports per trunk, port 1-4 and port 5-6 |
| Layer 2 Multicasting |
| IGMP Snooping |
| Supports IGMP v1/2 |
| VLAN |
| VLAN mode: tag-based or port-based* |
| Quality of Service (QoS) |
| 802.1p |
| Max. 4 queues per port |
| Queue Handling |
| Strict |
| Weighted Round Robin (WRR) |
| Bandwidth control |
| CoS Based on: |
| 802.1p |
| DSCP |
| ToS |
| TCP/UDP port number |
| Security |
| Storm Control |
| MAC-Port Binding |
| Physical |
| MTBF : 61320 hours |
| Acoustics : 0 dB |
| Heat Dissipation : 45.73 BTU/h |
| Power Input : 54 V / 2.22 A external power adapter |
| Maximum Power Consumption : 107.6 W |
| Weight : 638 g |
| Dimensions : 210 x 160 x 44 mm |
| Operating Temperature : 0 to 50°C |
| Storage Temperature : -20 to 70 °C |
| Operating Humidity : 20% to 80% non-condensing |
| Storage Humidity : 10% to 90% non-condensing |
| Certification : CE |
Teknik Kısa
PoE : PoE
Port Hızı : 100 Mbps
Yönetilebilirlik : Yönetilebilir Layer 2
Aktarım Port Sayısı : 2
Aktarım Türü : Combo
PoE Port Sayısı :
8 Port
8 Port PoE Güç Bütçesi : 50-130 Watt
