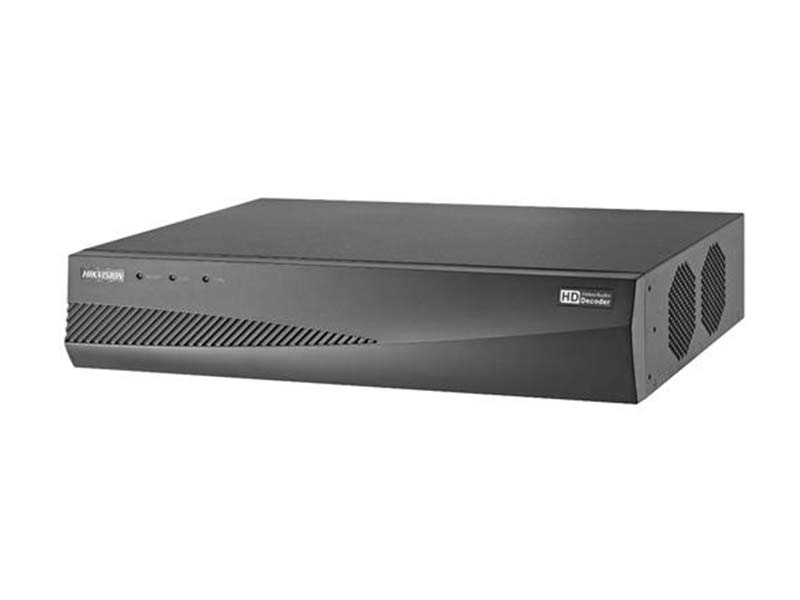

Hikvision DS 6412HDI T Video Decoder

Supports private H.264, standard H.264, MJPEG, MPEG2 and MPEG4 video stream formats
High-definition video output via DVI/VGA/HDMI interfaces and standard-definition video output via BNC interface
Decodes video stream at resolution of 8MP, 5MP, 3MP, 1080p, 720p, SVGA, VGA, 4CIF, DCIF, 2CIF, CIF and QCIF
Gets stream and decodes via channel zero, HiDDNS and VGA/DVI local channel (not supported by DS-6401HDI-T)
VCA decoding
Window spanning, floating, and windowing
One 10/100/1000Mbps self-adaptive Ethernet interface
Supports TCP, UDP and Multicast network protocols
Multiple DDNS settings: Peanut Hull, Dyndns, IPServer, NO-IP and HiDDNS

Video/Audio input
Video input	1-ch, VGA connector; 1-ch, DVI-I connector
	XGA@60Hz, 720P@60Hz, 720P@50Hz, UXGA@60Hz,
	SXGA@60Hz, 1080P@50Hz, 1080P@60Hz, 1080I@50Hz,
	1080I@60Hz, WXGA@60Hz, WSXGA+@60Hz
Video/Audio output
Audio output	16-ch, DB15 connector
CVBS Output	6-ch without audio
CVBS Output	DB15 connector (used with the DB15-to-BNC adapter)
DVI Output	12-ch
	1920 × 1080@60/50Hz, 1600 × 1200@60Hz,
	1280 × 1024@60Hz, 1280 × 720@50/60Hz,
	1024 × 768@60Hz
Audio/Video Decoding
Video Stream Format	H.264/MJPEG/MPEG4/MPEG2/Private
Audio Stream Format	G.722/G.711A/G.711U/MPEG2-L2/AAC
Decoding Capability	8MP: 6-ch
	5MP: 12-ch
	1080p: 24-ch
	720p: 48-ch
	4CIF: 90-ch
Split Screen	1/4/9/16
Screen Spanning Mode	1 × 2, 1 × 3, 1×4, 2×1, 2×2, 2×3, 2×4, 2×5, 3×2, 3×3, 4×2, 5×2, 3×4, 4×3
Fluent Decoding
Decoding Capability	1/4 decoding capability contrast to the normal mode
External interface
Network Interface	1; 10/100/1000 Mbps self-adaptive Ethernet interface
Serial Interface	1 RS-232 (DB9), 1 RS-485
USB Interface (reserved)	2, USB 2.0
Two-Way Audio In	1-ch, 3.5 mm connector (2.0 Vp-p, 1 kΩ)
Two-Way Audio Out	1-ch, 3.5 mm connector (2.0 Vp-p, 1 kΩ)
Alarm In	4
Alarm Out	4
General
Power supply	100 to 240 VAC
Consumption	≤ 108 W
Working temperature	-10°C~+55°C(14°F~131°F)
Working humidity	10%~90%
Dimension(W×D×H)	440 × 340 × 70 mm (17.32" × 13.39" × 2.76")
Weight	≤6.4 kg (14.12 lb)
